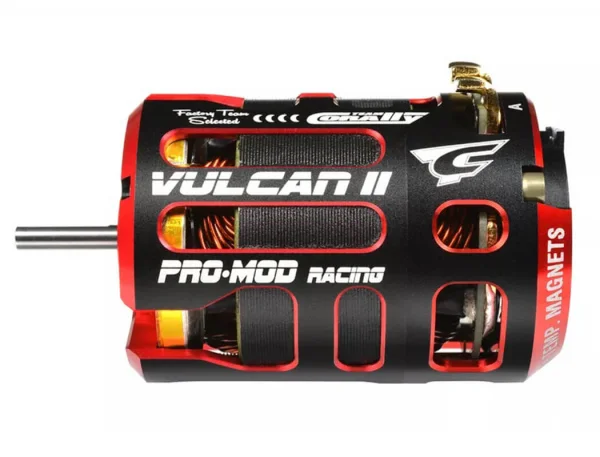

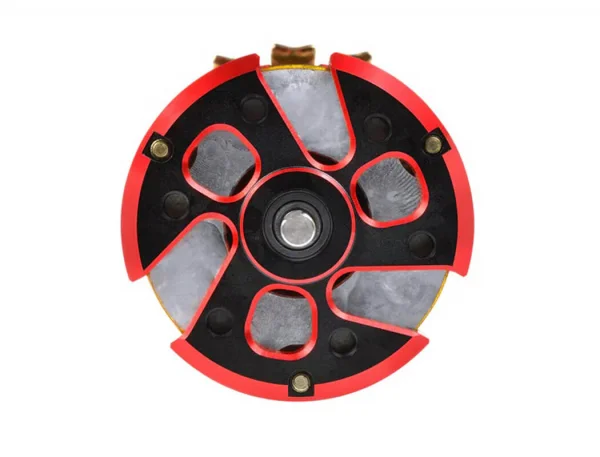

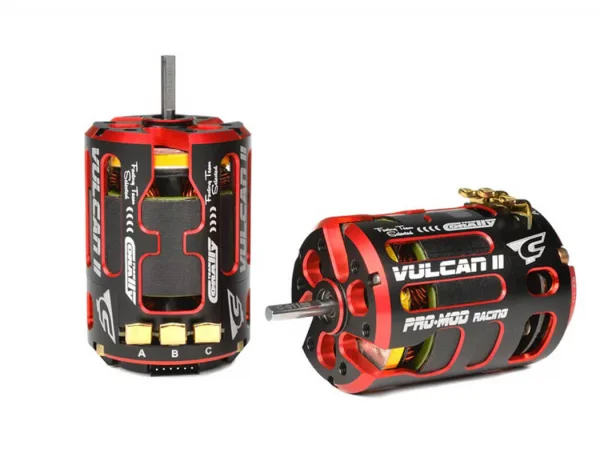

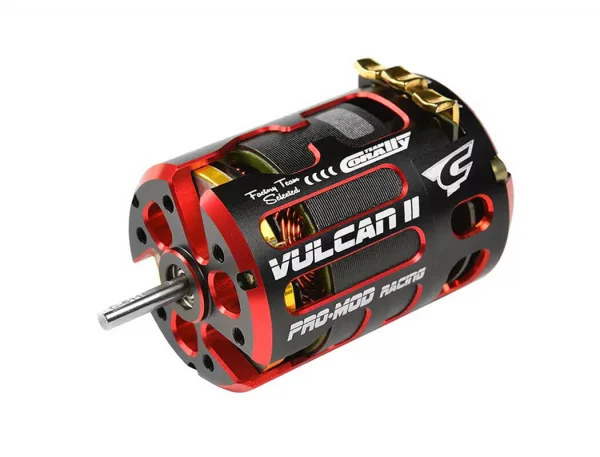

Corally Vulcan II Pro Modified Sens Comp Brushless Motor 4.5T

The Corally Vulcan II Pro Modified Sens Comp Brushless Motor 4.5T (C-61151) is a sensored 540-class unit built for competitive RC racing. Compliant with ROAR, BRCA, EFRA and IFMAR regulations, it suits 1S–2S LiPo classes requiring precise throttle feel and strong efficiency. A 4.5T modified wind, 8170KV rating and adjustable timing provide a broad tuning window, while the 3-slot stator with 0.2 steel laminations and 2-pole rotor support smooth, controlled power delivery.

Key Features

• Sensored brushless modified motor (540 size)
• ROAR / BRCA / EFRA / IFMAR compliant
• 4.5T wind with adjustable timing
• 3-slot stator with 0.2 steel laminations
• 2-pole rotor for responsive performance
• 1S–2S LiPo input range
• Standard 3.17 mm shaft and M3 @ 25.4 mm mounting

Specifications

• KV: 8170 rpm/V
• No-load current (Io): 7.9 A
• Max current: 111 A
• Power: 495 W
• Resistance: 0 Ω (listed)
• Size ID: 540
• Diameter: 35.8 mm
• Length: 52 mm
• Shaft: 3.17 mm diameter x 13 mm length
• Mounting holes: M3 @ 25.4 mm
• Rotor: OD 12.3 mm x ID 5.0 mm x L 24.5 mm (C-16180)
• Type: Brushless, sensored
• Poles: 2
• Input voltage: 1S–2S LiPo
• Class: Modified

Suggested Compatibility

• 1/10 Touring
• 1/12 Pan Car
• 1/10 Pan Car
• 1/10 Buggy 2WD
• 1/10 Buggy 4WD
