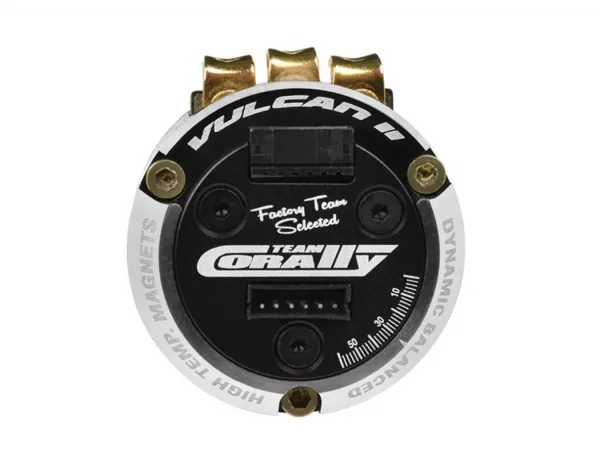

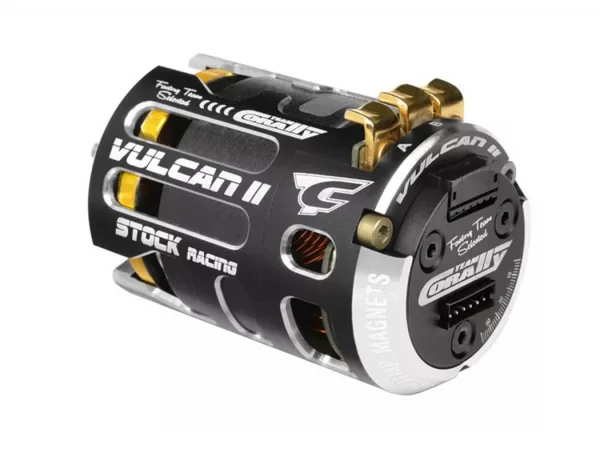

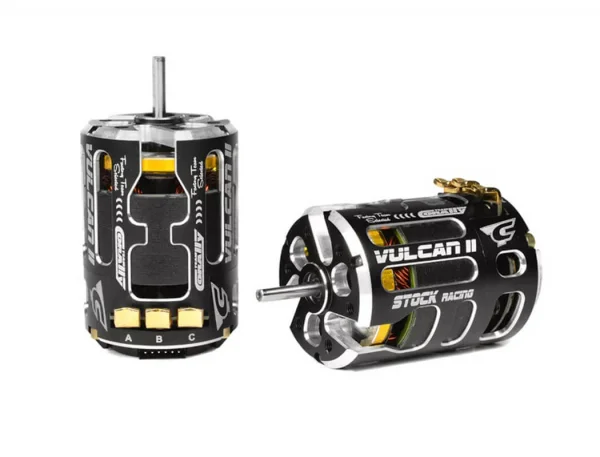

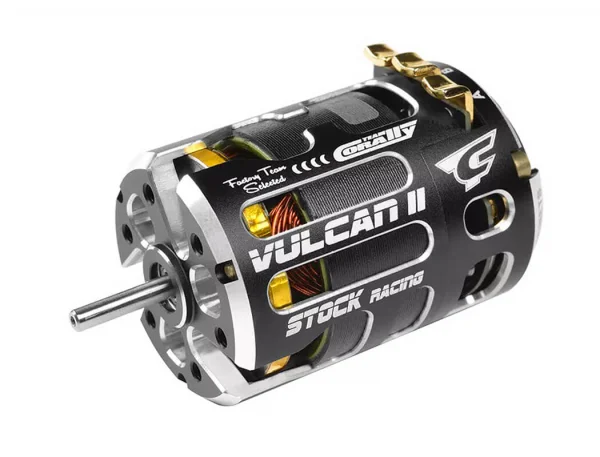

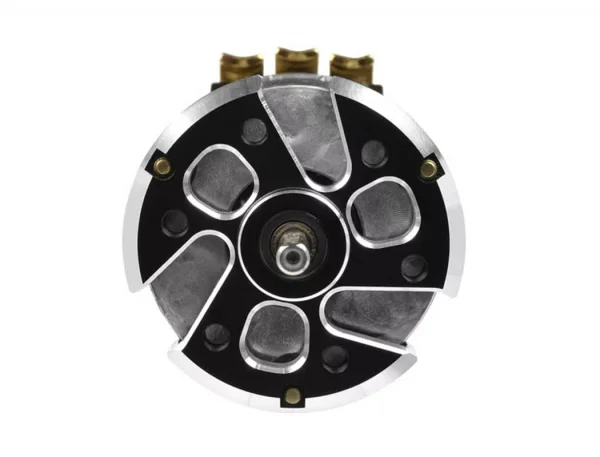

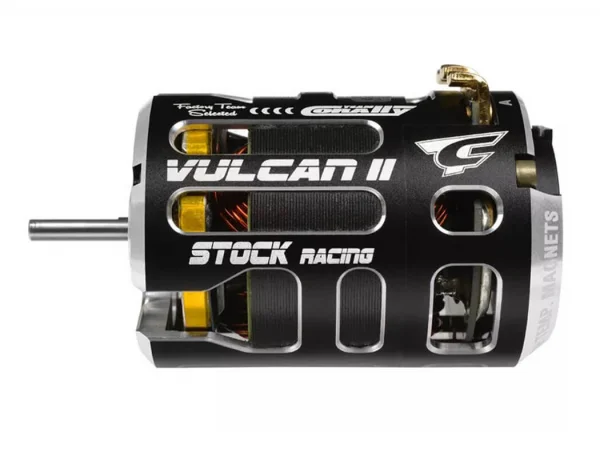

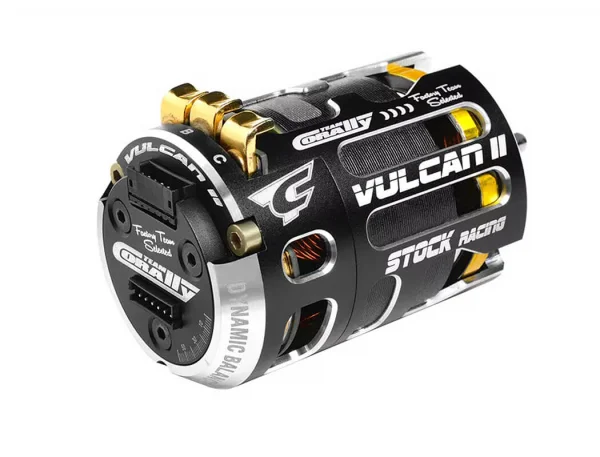

Corally Vulcan II Stock Sens. Competition Brushless Motor 10.5T

The Corally Vulcan II Stock Sensored Competition Brushless Motor 10.5T (C-61170) is a 540-size stock-class motor developed for 1/10 and 1/12 racing. Its sensored design, adjustable timing and 1S–3S Li‑Po input range provide the tuning flexibility racers expect, while compliance with ROAR, BRCA, EFRA, IFMAR and DMC regulations makes it suitable for sanctioned events.

Specified at 4450 KV with a 260 W power rating, the Vulcan II Stock features a 3-slot stator with 0.2 mm steel laminations and a 2‑pole rotor for precise commutation. Practical mounting dimensions and a 3.17 mm shaft make installation straightforward across common 1/10 platforms.

Suggested Compatibility

• 1/10 Touring
• 1/10 Pan Car
• 1/10 Buggy 2WD
• 1/12 Pan Car
• 1/10 Buggy 4WD

Key Specifications

• Type: Brushless, sensored, 540 size
• Turns: 10.5T (Stock class)
• Compliance: ROAR / BRCA / EFRA / IFMAR / DMC
• Input Voltage: 1S–3S Li‑Po
• KV: 4450 KV
• No‑Load Current (Io): 4 A
• Max Current: 67 A
• Power: 260 W
• Resistance: 0.02 Ω
• Poles: 2‑pole rotor
• Rotor Size: OD 12.5 mm × ID 7.2 mm × L 25.2 mm (C-16185)
• Stator: 3‑slot, 0.2 mm steel laminations
• Timing: Adjustable
• Dimensions: Ø 35.8 mm × L 52 mm
• Mounting Holes: M3 @ 25.4 mm
• Shaft: 3.17 mm diameter × 13 mm length
