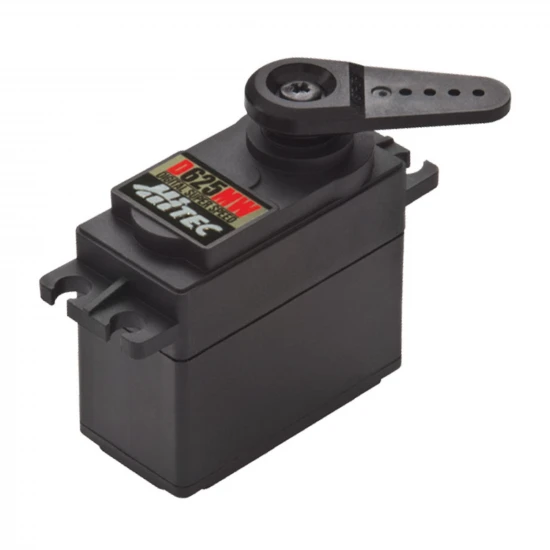

D625MW Wide Voltage Super Speed Servo

The metal gear D-625MW is part of the Hitec D-Series servo range. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 - 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings a hitherto unknown monster performance.

D625MW Wide Voltage Super Speed Servo Key Features:

• The metal gear D-625MW is part of the Hitec D-Series servo range. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 - 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec's industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings a hitherto unknown monster performance.

• Programmable digital amplifier with MOSFET drive
• Long life (1M cycles) indirect potentiometer
• Narrow dead bandwidth and high standing torque
• Gold-plated contacts

D625MW Wide Voltage Super Speed Servo Tech Specs:

• Weight: 57g / 2.01oz
• Shipping Weight: 0.11kg / 0.23lbs

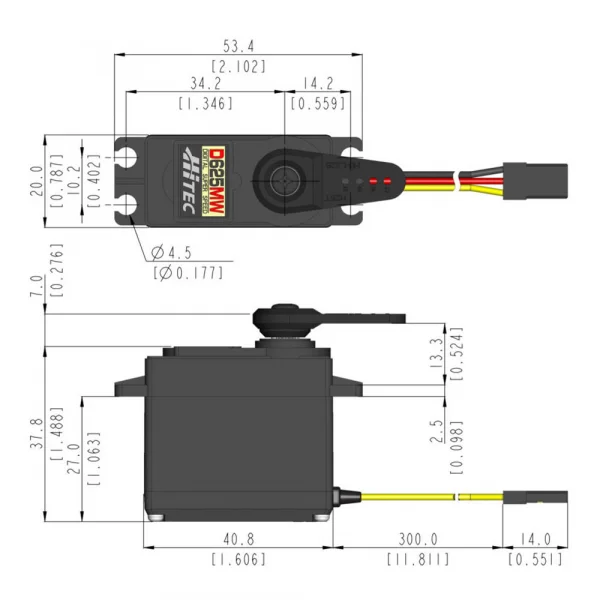

• Product Height: 38mm / 1.48in
• Product Width: 20mm / .77in
• Product Length: 41mm / 1.59in

• Application: Array
• Servo Size: Standard

• Brand: Hitec
• Part No: 2221050
• Barcode: 669962366250
• Max Voltage: 7.4v+ (LiPo)
• Gear Material: Metal
