D955TW Wide Voltage Ultra Torque
Brand: Hitec
Part No: 2221019
Backorder: Expected 26th June 2026

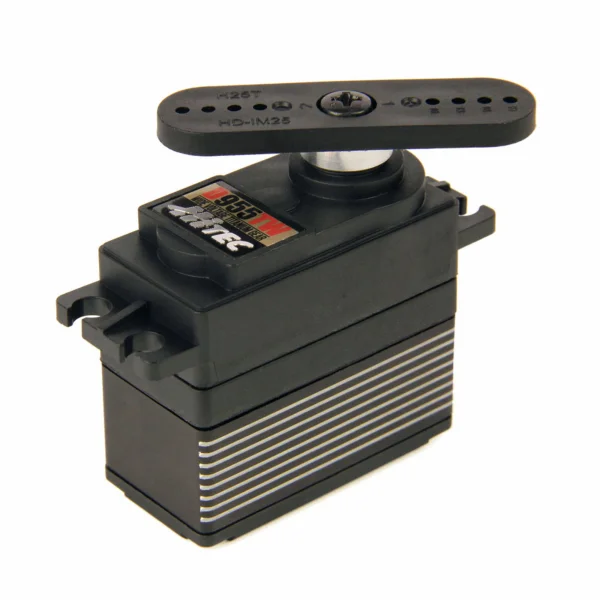

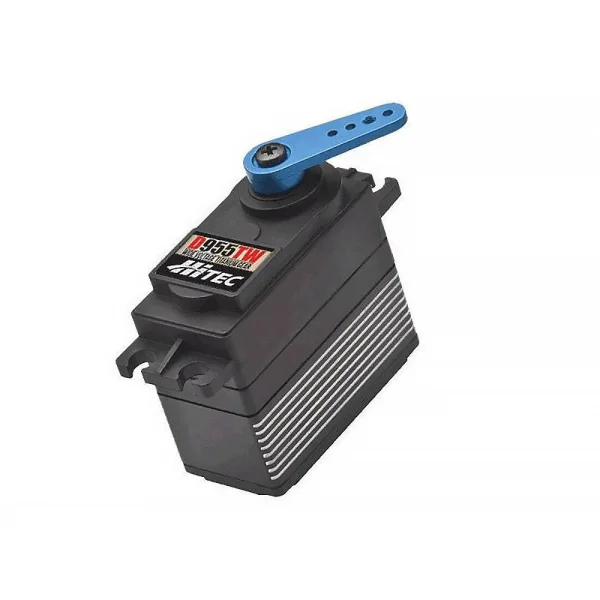

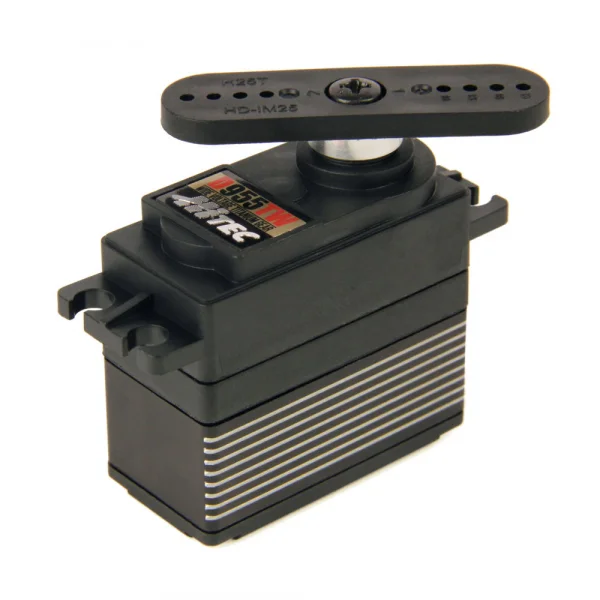

Request Stock NotificationThe Hitec D955TW Wide Voltage Ultra Torque servo (2221019) brings advanced control and durability to demanding RC applications. Driven by a 32‑bit MCU and 12‑bit ADC with Smart Sense engineering, it delivers rapid, high‑resolution response with 4096 step precision. A robust titanium gear train, dual ball bearings and a coreless metal‑brush motor ensure smooth, reliable power, while the wide 4.8–8.4V operating range offers flexible setup across many models. Replacing the renowned HS‑7955TH, the D955TW continues Hitec’s mission of progressive, leading‑edge servo technology.
Key Features
- Programmable PWM digital amplifier
- 32‑bit MCU with 12‑bit ADC circuitry
- 4096 resolution for precise control
- 1M‑cycle long‑life potentiometer
- Wide operating voltage: 4.8–8.4V DC
- Dual ball bearing supported output shaft
- 25‑tooth output spline
- Coreless metal brush motor
Programmable Functions
- End point adjustments
- Direction
- Fail safe
- Dead band
- Speed (slower)
- Soft start rate
- Overload protection
- Data save/load
- Program reset
Tech Specs
- Servo size: Standard
- Weight: 66g (2.33oz)

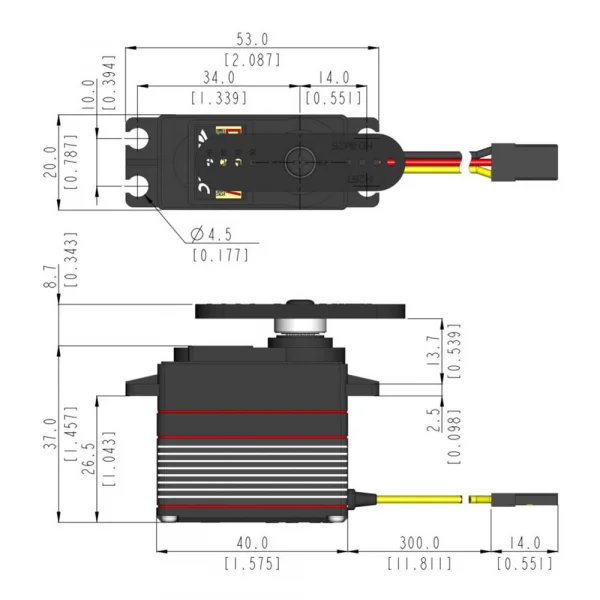

- Dimensions (L×W×H): 40 × 20 × 37mm
- Colour: Black
- Material: Metal + plastic
Suggested Compatibility
- 1:10 electric off‑road and on‑road vehicles (suggested compatibility)
- Surface vehicles including cars, trucks and crawlers (suggested compatibility)
- Aircraft control surfaces for precise response (suggested compatibility)
- Helicopter cyclic and tail applications (suggested compatibility)
- Boats requiring responsive steering and throttle (suggested compatibility)
Secured by Stripe
The D955TW servo is powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science and possess Smart Sense engineering with rapid, high resolution response. Their unprecedented programmability and wide-voltage capabilities deliver the most progressive, leading-edge performance for all your radio control needs. The reliably-strong titanium-geared D955TW replaces the well-known HS-7955TH. Advancing servo technology and providing superior engineering has always been Hitec's mission and that continues today.
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Date Save/Load
- Program Reset
The D955TW servo is versatile and suitable for a wide range of radio control applications, including:
- Aircraft: Provides a precise control for various control surfaces, enhancing flight performance.
- Surface Vehicles: Ideal for steering and throttle control in cars, trucks and crawlers. Offering responsive handling.
- Helicopters: Delivers accurate cyclic and tail control inputs, crucial for stable flight dynamics.
- Boats: Enhances maneuverability and throttle response, contributing to improved watercraft performance.
D955TW Wide Voltage Ultra Torque Key Features:
- Programmable PWM digital amplifier
- 32-Bit MCU with 12-Bit ADC circuitry
- 4096 Resolution
- 1M cycle long life potentiometer
- Wide operating voltage (4.8 ~ 8.4 Volts DC)
- Dual ball bearing supported output shaft
- 25-Tooth output spline
- Coreless metal brush motors
D955TW Wide Voltage Ultra Torque Tech Specs:
- Weight: 66g / 2.33oz
- Shipping Weight: 0.14kg / 0.30lbs
- Product Height: 37mm / 1.45in
- Product Width: 20mm / 0.79in
- Product Length: 40mm / 1.57in
- Application: 1:10 Electric Off-Road and On-Road
- Servo Size: Standard
- Age Recommendation: 14+
- Colour: Black
- Material: Array
Key Info:
- Brand: Hitec
- Part No: 2221019
- Barcode: 669962369558
