Dash SS602 V3 HV A10 Low Profile Servo
Brand: Dash
Part No: SCH-DA720603
Out of stock
Request Stock NotificationFinance options available at checkout.
Customers Also Buy
Popular with customers who buy products like the DASH SS602 Super Speed Low Profile Servo A10 V3 HV
Description
The Dash SS602 Super Speed Low Profile Servo A10 V3 HV (SCH-DA720603) is a brushless, high-voltage servo built for rapid, precise steering. An upgraded 32-bit MCU and 303 steel gear teeth enhance resolution and durability, while the full-alloy aluminium case and dual ball bearings provide smooth, consistent performance. Well suited to 1/10 on-road applications, it delivers a strong balance of speed and torque in a compact, low-profile form.
Control inputs offer suggested compatibility with SSR/SUR/SXR modes on Sanwa, Digital/SR on Futaba, and SR/FSR on Flysky Noble transmitters.
Features
- Upgraded 32-bit MCU control board for improved precision
- 303 steel teeth to prolong gear lifespan
- All-aluminium housing for durability and heat dissipation
- Heat resistant brushless motor
- High voltage capable operation
- Suggested compatibility with SSR/SUR/SXR, Digital/SR and SR/FSR modes for super-fast, smooth steering response

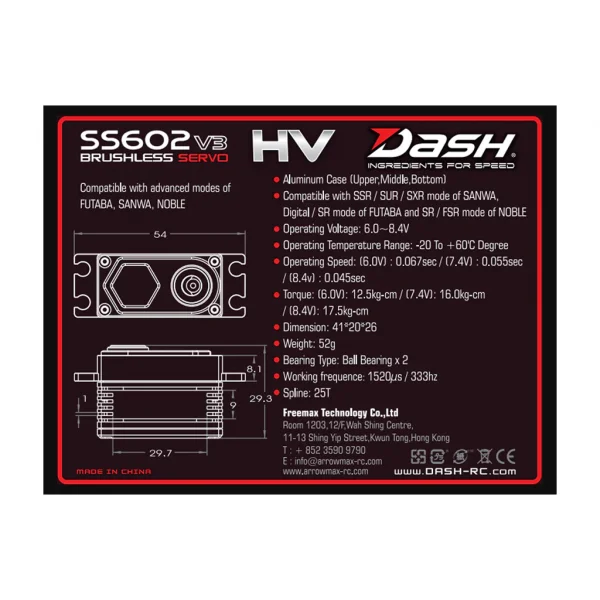

Specifications
- Aluminium Case (Upper, Middle, Bottom)
- Suggested compatibility: SSR/SUR/SXR (Sanwa), Digital/SR (Futaba), SR/FSR (Flysky Noble)
- Operating Voltage: 6.0~8.4V
- Operating Temperature Range: -20 to 60 degrees
- Operating Speed (6.0V): 0.067 sec
- Operating Speed (7.4V): 0.055 sec
- Operating Speed (8.4V): 0.045 sec
- Torque (6.0V): 12.4kg-cm
- Torque (7.4V): 16.0kg-cm
- Torque (8.4V): 17.5kg-cm
- Dimensions: 41*20*26
- Weight: 52g
- Bearing Type: Ball Bearing x 2
- Working Frequency: 1520us/333hz
- Spline: 25T
Secured by Stripe
Specifications
From Dash RC is this SS602 V3 HV A10 super speed low profile brushless servo. The PCB control board has been upgraded to 32-bit MCU on the SS602 servo and features an improved 303 steel teeth to prolong the lifespan. The high quality full-alloy metal case has masses of torque and is also very quick and precise in its resolution. The control inputs are now SSR/SUR/SXR mode compatible on the Sanwa, Digital/SR mode compatible on the Futaba, and SR/FSR compatible on the Flysky Noble controllers. It is a must for 1/10 on-road cars.
Features:
- SSR mode compatible for Super fast and smooth steering response
- High voltage compatible Servo
- All aluminium housing for excellent durability
- Heat resistant brushless motor
Specifications:
Aluminium Case (Upper, Middle, Bottom)
SSR/SUR/SXR modes of SANWA
Digital/SR mode of FUTABA and SR/FSR mode of NOBLE
Operating Voltage: 6.0~8.4V
Operating Temperature Range: -20 to =60Deg
Operating Speed: (6.0V): 0.067 sec
Operating Speed: (7.4.0V): 0.055 sec
Operating Speed: (8.4.0V): 0.045 sec
Torque(6.0V): 12.4kg-cm
Torque(7.4V): 16.0kg-cm
Torque(8.4V): 17.5kg-cm
Dimensions: 41*20*26
Weight: 52g
Bearing Type: Ball Bearing x 2
Working Frequency: 1520us/333hz
Spline: 25T
Key Info:
- Brand: Dash
- Part No: SCH-DA720603
- Barcode: 5051294181505
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
