Description

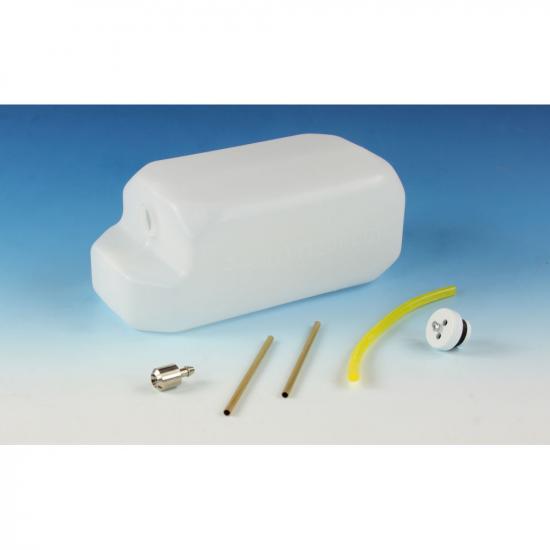

The Dubro DB691 40oz (1200cc) Fuel Tank, part number DUB691, is a single model fuel tank supplied complete with all of its hardware. Dubro designs its tanks to resist splitting or cracking from vibration or pressure, and they can be used with pressurised fuel systems.
The tank comes with a one-piece clunk that has the fuel barbs built into the clunk stem, so fuel tubing is held in place and will not slide off. Dubro states that tanks in the 690 to 692 range include both tubing and a fuel stopper for gas and glo fuel, so the tank can be used with either glo fuel or gasoline.
The 1200cc capacity is approximate and may vary slightly. Unlike the 2 oz and 4 oz sizes, this tank has the protruding lip on its body. The main dimensions are listed below.
Specifications
- Height: 82.55 mm (3 1/4 in)
- Width: 101.6 mm (4 in)
- Length: 203.2 mm (8 in)
- Weight: 178 g
Secured by Stripe
Specifications
DU-BRO fuel tanks are designed to be tough! Our fuel tanks will not split or crack from vibration or pressure. In fact, our fuel tanks can be used with pressurised fuel systems! Comes complete with all hardware, including our one piece clunk with fuel barbs built right on the clunk stem. Your fuel tubing will not slide off! DU-BRO fuel tanks can be used with either glo-fuel or gasoline if you purchase the DUB400 gasoline conversion stopper.
Note: #690-692 come with both tubing and fuel stopper for gas and glo fuel.
#795-797 are set up for gas only.
*Tank capacity noted for each tank is approximate and may vary slightly.
**2 & 4 oz tanks do not have the protruding "lip" on the tank. All other sizes do.
| SIZE | HEIGHT | WIDTH | LENGTH | WEIGHT |
| 2 oz | 1 5/16" (33.34 mm) H | 1 13/16" (46.04 mm) W | 2 3/4" (69.85 mm) L | (34 grams) |
| 4oz | 1 1/2" (38.1 mm) H | 2 1/16" (52.39 mm) W | 3 3/4" (95.25mm) L | (41 grams) |
| 6oz | 1 7/8" (47.63 mm) H | 2 3/16" (55.56 mm) W | 3 7/8" (98.43mm) L | (56 grams) |
| 8oz | 1 15/16" (49.21 mm) H | 2 5/16" (58.74 mm) W | 4 7/8" (123.83 mm) L | (64 grams) |
| 10oz | 2 1/4" (57.15 mm) H | 2 9/16" (65.09 mm) W | 4 7/8" (123.83 mm) L | (66 grams) |
| 12oz | 2 1/4" (57.15 mm) H | 2 9/16" (65.09 mm) W | 5 3/8" (136.53 mm) L | (68 grams) |
| 14oz | 2 3/8" (60.33 mm) H | 2 11/16" (68.26 mm) W | 5 3/8" (136.53 mm) L | (72 grams) |
| 16oz | 2 3/8" (60.33 mm) H | 2 11/16" (68.26 mm) W | 5 7/8" (149.23mm) L | (77 grams) |
| 20 oz | 2 1/2" (63.5 mm) H | 3 1/16" (77.79 mm) W | 7" (177.8 mm) L | (96 grams) |
| 24 oz | 2 1/2" (63.5 mm) H | 3 1/16" (77.79 mm) W | 7 1/2" (190.5 mm) L | (100 grams) |
| 32 oz | 3" (76.2 mm) H | 3 11/16" (93.66 mm) W | 7 3/4" (196.85 mm) L | (160 grams) |
| 40oz | 3 1/4" (82.55 mm) H | 4" (101.6 mm) W | 8" (203.2 mm) L | (178 grams) |
| 50oz | 3 1/2" (88.9 mm) H | 4 3/8" (111.13 mm) W | 8 3/8" (212.73 mm) L | (186 grams) |
60oz @6 P.S.I. | 3 5/8" (92.075 mm) H 4.46" (113.28mm) H | 4 1/2" (114.3 mm) W 5.090" (129.29mm) W | 8 5/8" (219.08 mm) L 8.805" (223.65 mm) L | (182 grams) |
| 80oz @6 P.S.I. | 3 5/8" (92.075 mm) H 4.705" (119.51 mm) H | 4.812" (122.2 mm) W 5.27" (133.86 mm) W | 10.5" (266.7 mm) L 10.755" (273 mm) L | (225grams) |
| 100oz @6 P.S.I. | 3 5/8" (92.075 mm) H 4.99" (126.75 mm) H | 5 1/4" (133.35 mm) W 5.70" (144.78 mm) W | 11 5/8" (295.2 mm) L 12.035" (305.7 mm) L | (240 grams) |
Dubro 40oz. Fuel Tank (1 pc per package) Features:
- Comes complete with all hardware
- Includes our one piece clunk with fuel barbs built right on the clunk stem
- Your fuel tubing will not slide off!
- Fuel Tanks can be used with either glo-fuel or gasoline
Key Info:
- Brand: Dubro
- Part No: DUB691
- Barcode: 011859006914
