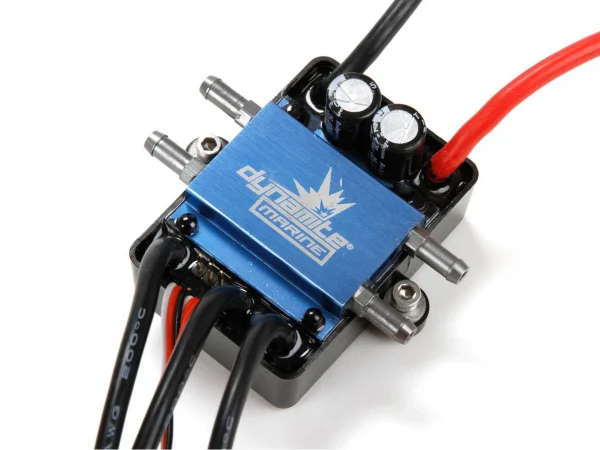

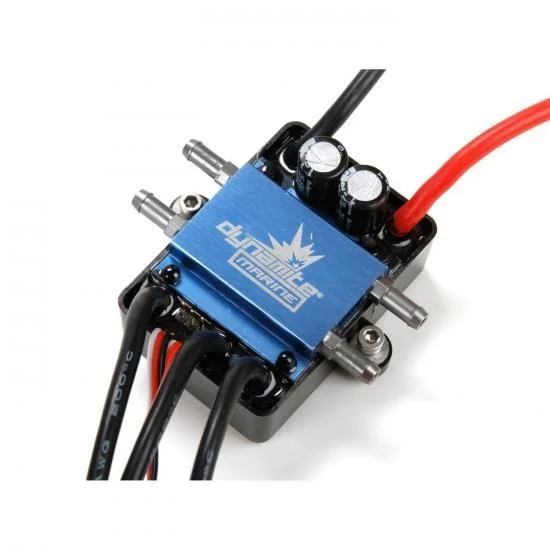

Dynamite 120A Brushless Marine ESC 2–6S LiPo
Brand: Dynamite
Part No: DYNM3875
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (4)
Description
The Dynamite 120A Brushless Marine ESC (DYNM3875) is a marine brushless speed controller designed for RC boats, supporting a wide range of power setups from 2–6S LiPo to 6–18 cell NiMH. It pairs a strong 120A rating with a 720A maximum burst current and includes a switching BEC to reliably power onboard electronics. Forward, reverse and brake functions are available, with a time‑delay brake for improved control. Programmable low‑voltage cutoff and overload protection add peace of mind on the water.
Key Specifications
- Input voltage: 2–6S LiPo or 6–18 cells NiMH
- Continuous current: 120A (maximum burst current 720A)
- BEC: Switching, 6V output, 5A continuous / 10A burst
- Functions: Forward, reverse and brakes (time‑delay brake)
- Low‑voltage cutoff: Programmable; auto cutoff supported
- Protection: Overload protection
- Connectors: EC5 battery input; 5.5mm bullet motor outputs
- Battery input lead: 12 AWG
- Resistance: 0.0005 ohms
- Speed control type: Marine brushless
- Part type: Electronics
Secured by Stripe
Dynamite 120A Brushless Marine ESC 2-6S LiPo Manuals & Guides
Manuals & Guides
Specifications
Dynamite 120A Brushless Marine ESC 2-6S LiPo Specfications:
- BEC: Yes
- BEC Maximum Burst Current: 10A
- BEC Voltage: 6V
- Input Voltage: 2-6S LiPo, 6-18 Cells NiMH
- Part Type: Electronics
- Time Delay Brake: Yes
- Maximum Burst Current: 720A
- Forward: Yes
- Reverse: Yes
- Brakes: Yes
- Connector Type: EC5
- Battery Input Lead: 12 AWG
- BEC Type: Switching
- Auto Cutoff: Yes
- BEC Continous Current: 5A
- Low-Voltage Cutoff Programmable: Yes
- Output Connector: 5.5mm Bullet
- Overload Protection: Yes
- Resistance: .0005 ohms
- Speed Control: Marine Brushless
Key Info:
- Brand: Dynamite
- Part No: DYNM3875
- Barcode: 605482574980
- Fitment: Option Part
- Fitment: Standard Part
