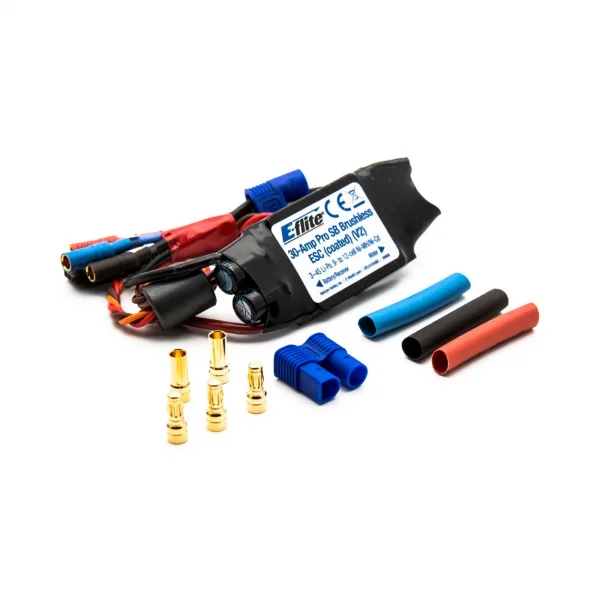

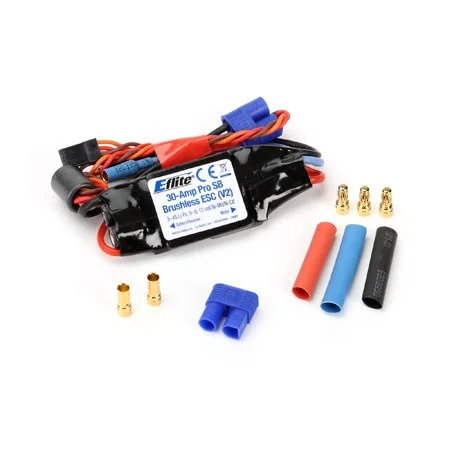

E Flite 30 AMP Pro Switching BEC Brushless ESC (Coated) (V2)

The E-flite 30-Amp Pro Switch-mode BEC Brushless ESC (Coated) (V2), part number EFLA1030BC, is a high-quality sensorless controller with an integrated 5V switch‑mode BEC. Delivering up to 30A continuous current (with proper cooling) and 35A burst, it powers your receiver and servos without a separate battery to keep installations light and simple.

A robust 3.5A BEC supports most 3‑axis stabilisation systems and can drive up to seven analogue or six digital standard‑size servos. Safe power‑arm mode prevents accidental starts, while extensive programmability covers braking, throttle range, soft start for helis and aeroplanes, timing, and low‑voltage cutoff options. Pre‑wired EC3 battery input and 3.5mm gold bullet motor connectors speed up installation.

Key Features

• Up to 30A continuous current with proper airflow; 35A burst for 15 seconds
• 3.5A continuous, 5V switch‑mode BEC circuit
• Stronger BEC for support of most 3‑axis stabilisation systems
• Drives up to 7 analogue or 6 digital standard‑size servos
• Programmable motor braking
• Safe power‑arm mode helps prevent accidental starts
• Programmable low‑voltage cutoff: 3S Li‑Po (9.2V), 4S Li‑Po (12V) or 74% of starting voltage
• Programmable throttle input range (1.1ms–1.9ms or 1.2ms–1.8ms)
• Programmable soft start for helis and aeroplanes
• Auto motor shutdown if signal is lost or interference is detected
• Programmable timing with 5 user‑selectable ranges for a wide variety of brushless motors
• Pre‑wired connectors: E‑flite EC3 on battery input; 3.5mm gold bullet connectors on motor leads

Specifications

• Continuous Maximum Current: 30A (proper cooling required)
• Momentary Peak Current: 35A (15 sec)
• Input Voltage: 3–6S Li‑Po or 9–18 Ni‑MH/Ni‑Cd
• Input Connector: 16 AWG leads with E‑flite EC3 connector
• Output Connectors: 16 AWG leads with 3.5mm gold bullet connectors
• Length: 51.0mm (2.00 in)
• Width: 28.0mm (1.10 in)
• Height: 8.70mm (0.35 in)
• Weight: 31.0 g (1.10 oz)
• Wire Gauge: 16 AWG
