Description

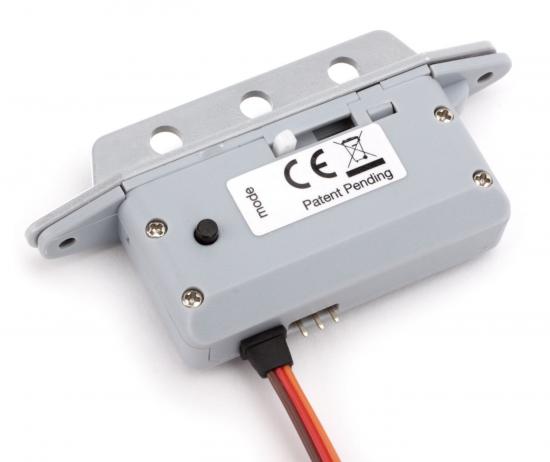

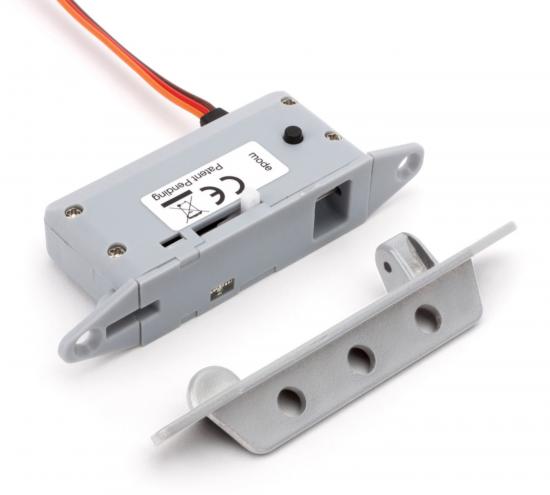

The E Flite Servoless Payload Release System (EFLA405) provides a compact electronic drop mechanism for RC aircraft. Plug it directly into your receiver to release a single payload in flight, or link multiple units to drop several payloads using only one channel. It can also serve as a tow release for sailplanes.
Key Features
- Plugs directly into the receiver using standard servo connectors
- Connect and control multiple mechanisms with a single radio channel
- One-by-one and programmed delay modes
- Electronic and manual release mechanisms
- Ready to use and easy to install
Specifications
- Length: 3.10 in (79.0mm)
- Scale Airplane Accessories: Payloads
- Width: 0.61 in (15.5mm)
- Height: 1.10 in (27.0mm)
- Weight: 0.63 oz (18.0 g)
- Current Draw Idle: 6mA
- Current Draw: 100mA
- Current Draw Stall: 350mA
- Voltage: 4.8–8.5V
Secured by Stripe
E Flite Servoless Payload Release System Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
The E-flite® servoless payload release enables you to drop a single payload while in flight, or enables you to use multiple devices to drop multiple payloads using only one channel on your receiver. It can also be used as a tow release for sailplanes.
E Flite Servoless Payload Release System Features:
- Plugs directly into the receiver using standard servo connectors
- Connect and control multiple mechanisms with a single radio channel
- One-by-one and programmed delay modes
- Electronic and manual release mechanisms
- Ready to use and easy to install
E Flite Servoless Payload Release System Specifications:
- Length: 3.10 in (79.0mm)
- Scale Airplane Accessories: Payloads
- Width: 0.61 in (15.5mm)
- Height: 1.10 in (27.0mm)
- Weight: 0.63 oz (18.0 g)
- Current Draw Idle: 6mA
- Current Draw: 100mA
- Current Draw Stall: 350mA
- Voltage: 4.8–8.5V
Key Info:
- Brand: E Flite
- Part No: EFLA405
- Barcode: 605482071670
- Fitment: Option Part
Additional Categories:
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
E Flite don't quote a service weight for this, but we'd estimate it's reasonably low. It's just enough to release a normal "payload" of bombs, toffees, etc.
I don't see any reason this couldn't be used on a drone...?
Payload Weight Limit 12.0 oz (340 g)
E Flite don't quote a service weight for this, but we'd estimate it's reasonably low. It's just enough to release a normal "payload" of bombs, toffees, etc.
This unit works with standard servo connectors, so it will plug into any standard radio receiver system.
