J Perkins Electric Retracts 15–25 Main Set (2)
Brand: J Perkins
Part No: 4406330
Shadow Stock: Usually ships next day
Finance options available at checkout.
Description
Designed for 15–25 size models, the J Perkins Electric Retracts 15–25 Main Set and Legs (2) are self-contained units powered from your receiver battery. Beautifully machined for sturdy, slop-free operation, they deliver dependable, repeatable cycles without the complexity of mechanical systems.
Key Features
- Self-contained electric main retract units for 15–25 size aircraft
- Powered directly from the receiver battery
- 90 degree operation
- Sturdy, slop-free mechanism for consistent performance
Specifications
- Operating voltage: 4.8–7.4 V
- Current draw at idle: 5 mA
- Operating current: 200 mA
- Sequence time at 4.8 V: 1.25 s
- Recommended aircraft weight: 1800–3200 g
- Unit weight: 48 g
- Shipping weight: 0.25 kg / 0.55 lbs
Suggested Compatibility
- For tricycle undercarriage setups: Aircraft Mechanic 15–25 size nose retract unit (4406325)

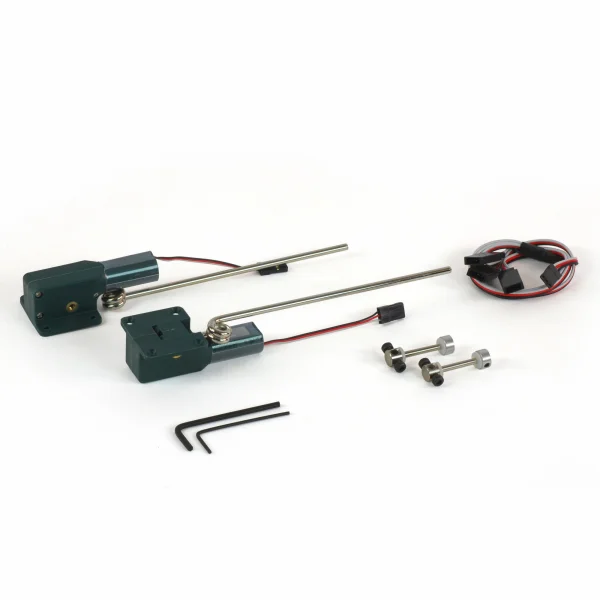

What's In The Box
- 2x 15–25-size 90 degree electric main units
- 2x Wire main leg
- 2x Adjustable axle
- 2x Wheel retaining collet
- 1x 3 to 1 extension lead
- 1x Allen key set
Secured by Stripe
Electric Retracts 15-25 Main Set And Legs (2) Manuals & Guides
Manuals & Guides
Specifications
Self-contained and simple to install the Aircraft Mechanic 15 - 25 size electric main retract units takes their power from your receiver battery and, for aircraft with a tricycle undercarriage configuration, work in unison with the Aircraft Mechanic 15 - 25 size nose retract unit (4406325). Beautifully machined, sturdy and slop-free the mechanism rivals some of the best examples on the market at a price that doesn't break the bank. Kiss goodbye to mechanical systems and enjoy solid, dependable performance, time after time.
Specification:
| Current draw at idle (mA): | 5 |
| Operating current (mA): | 200 |
| Operating voltage (V): | 4.8 - 7.4 |
| Rec'd aircraft weight (g): | 1800 - 3200 |
| Unit weight (g): | 48 |
| Sequence time at 4.8V (sec): | 1.25 |
Electric Retracts 15-25 Main Set And Legs (2) Tech Specs:
Electric Retracts 15-25 Main Set And Legs (2) Key Features:
- Self-contained and simple to install the Aircraft Mechanic 15 - 25 size electric main retract units takes their power from your receiver battery and, for aircraft with a tricycle undercarriage configuration, work in unison with the Aircraft Mechanic 15 - 25 size nose retract unit (4406325). Beautifully machined, sturdy and slop-free the mechanism rivals some of the best examples on the market at a price that doesn't break the bank. Kiss goodbye to mechanical systems and enjoy solid, dependable performance, time after time.
Specification:
Current draw at idle (mA): 5 Operating current (mA): 200 Operating voltage (V): 4.8 - 7.4 Rec'd aircraft weight (g): 1800 - 3200 Unit weight (g): 48 Sequence time at 4.8V (sec): 1.25 - 90 degree operation.
What's in the Box:
- 2x 15 - 25-size 90 degree electric main units.
- 2x Wire main leg.
- 2x Adjustable axle.
- 2x Wheel retaining collet.
- 1x 3 to 1 extension lead.
- 1x Allen key set.

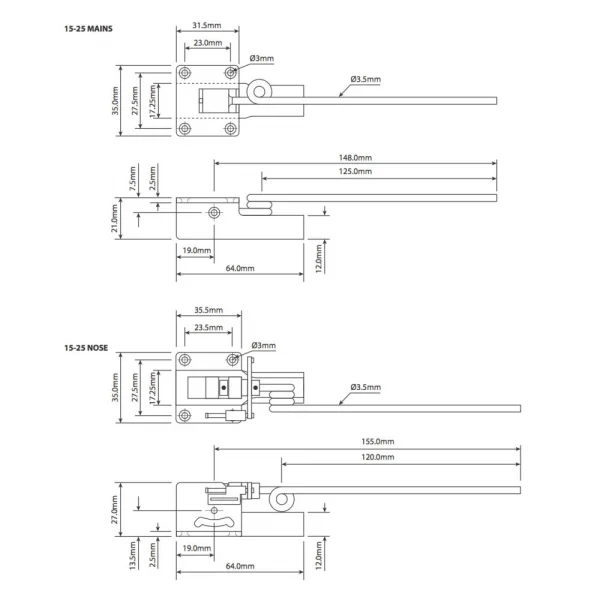

Manuals & Parts Explosions:
Electric Retracts 15-25 Main Set And Legs (2) Tech Specs:
- Shipping Weight: 0.25kg / 0.55lbs
Key Info:
- Brand: J Perkins
- Part No: 4406330
- Barcode: 5051121211795
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
Answered my question, despite,the answer being tucked away on the product info. Nicely done.
The retracts look excellent
Questions & Answers
!5 and 25 are rc plane sizes it refers to the engine size they would use if they were IC power.
Thw wire would be 3.5mm
