eTronix Photon 1:8 Waterproof 150A ESC Combo With 2Y 2150kV Motor
eTronix Photon 1:8 Waterproof 150A ESC Combo With 2Y 2150kV Motor
eTronix Photon 1:8 Waterproof 150A ESC Combo With 2Y 2150kV Motor
eTronix Photon 1:8 Waterproof 150A ESC Combo With 2Y 2150kV Motor
eTronix Photon 1:8 Waterproof 150A ESC Combo With 2Y 2150kV Motor

eTronix Photon 1:8 Waterproof 150A ESC Combo With 2Y 2150kV Motor

Brand: eTronix

Part No: ET0440


SORRY, THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.


Why not contact our team to see if an alternative is available?

Description

ETRONIX PHOTON 1/8 SYSTEM W/2Y 2150KV MOTOR/150A ESC

Two systems are available in the range 120A more suited to RTR applications and a 150A for higher end buggy/truck competitive demands. Also features a separate sensor cable port for use with sensored aftermarket motors.

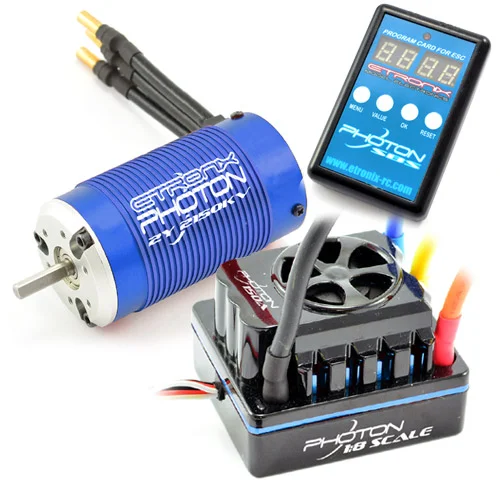

Supplied with (ET0107) Etronix Photon SBS LED Programming Card

120A Specification :-
4 Pole sensorless or sensored brushless motor
2-6S Lipo Support
5-18S NiMH/NiCd
3A 6V/8.4V Adjustable BEC output
120A Constant current
760A Burst Current

150A Specification :-
4 Pole sensorless or sensored brushless motor
2-6S Lipo Support
5-18S NiMH/NiCd
3A 6V/8.4V Adjustable BEC output
150A Constant current
1080A Burst Current



Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Specifications

  • Brand: eTronix
  • Part No: ET0440
  • Barcode: 5055323967931

Delivery & Returns

Standard Shipping

£3.95 to most of the UK

Express Shipping

£6.95 to most of the UK

Worldwide Shipping

Available at checkout

Customer Reviews

No specific product reviews yet, why not write one?
Write a Review
All reviews are subject to moderation

Questions & Answers

Real questions from real customers. Why not ask your own?
would this work in my hyper vs 1/8th buggy and can it take a single 4s lipo battery
Wayne / 4th August 2021

Yes it would fit , yes 1x 4s battery would be fine.

Anthony @ Wheelspin Models
Would this fit and work well in a HoBao Hyper SSTE Truggy?
Oscar Taylor / 8th January 2021

Yes that should work nicely in there

Ben @ Wheelspin Models
Would this be suitable for a nitro to electric conversion? Eg plugging into an analog receiver and providing forward drive in place of a throttle servo / nitro engine.
Steven / 8th October 2020

Yes it would be a nice easy swap.

Anthony @ Wheelspin Models
I have a arrma limitless will the 150a kit work with my car with pinion and gear as standard from box
Alain / 28th January 2020

Yes, that should work fine in an Arrma Limitless.

Ben @ Wheelspin Models
Can this go straight on 6s or is there a kv limit like 6s has to be on a motor with less than 2000kv or something?
Ki / 13th October 2019

It should be OK on 6S according to the spec - but as with any ESC/Motor, it will depend on the weight and gearing of your vehicle.

Check motor and ESC temperatures whilst bedding in to ensure gearing is appropriate.

Ben @ Wheelspin Models
Whats the size of esc as space limited in buggy
Rab / 27th September 2019

The ESC measures up at 55x46x37mm (without fan)

Ben @ Wheelspin Models
What is the shaft diameter for the pinion
Andrew Robinson / 12th November 2018

These have a 5mm diameter shaft

Ben @ Wheelspin Models
What connector does this come with for the battery/input side
Andrew Robinson / 11th November 2018

There is no battery connection on these, so you can solder on whatever you need

Ben @ Wheelspin Models
is etronix sold 120A or 150A version & sensored or unsensored?
Richard Nickerson / 24th March 2018

This item is 150A as per title.

It is sensorless.

Ben @ Wheelspin Models
