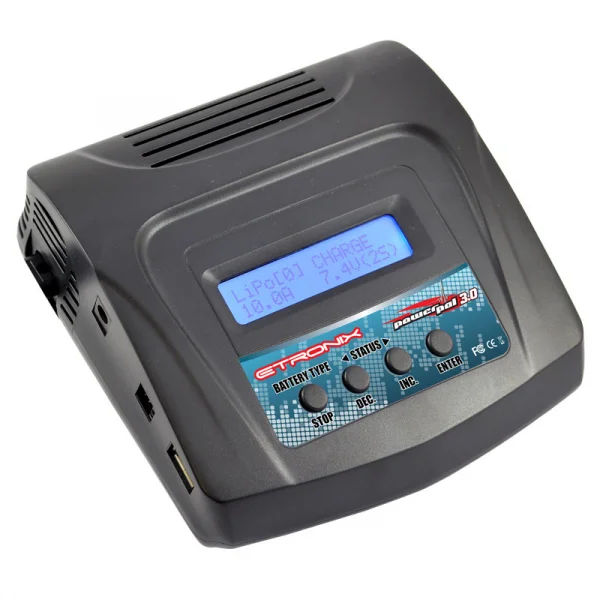

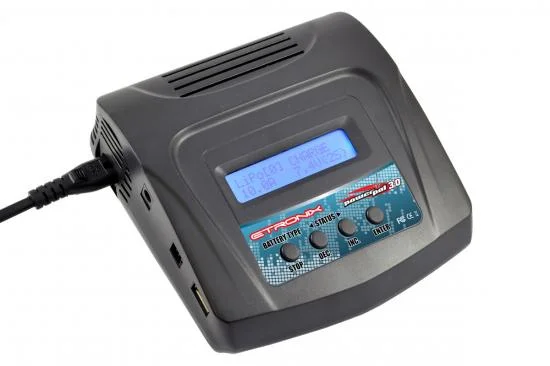

eTronix Powerpal 3.0 AC/DC Performance Charger/Discharger - 80W 10A
Brand: eTronix
Part No: ET0202
In Stock: Usually ships same day
ETRONIX POWERPAL 3.0 AC/DC PERFORMANCE CHARGER/DISCHARGER
Etronix has upgraded its best selling PowerPal charger with the latest 3.0 version. Same reliable charging for all your battery charging needs, the 3.0 has been updated with the inclusion of a 2.1A USB charge sock-et, a DJI battery charge program and a useful servo testing function.
Etronix Power Pal 3.0 Charger/Discharger Features:
- AC/DC Input Power
- Up to 10A Charge Rate
- Microprocessor controlled
- Precision Lithium cell balancing
- Cyclic charging/discharging for NiMH
- USB charge socket
- Servo testing function
- Optimised operating software
- High power, high performance circuitry
- Charge different types of Lithium battery
- Maximum safety
- CC/CV Constant current charge and pack voltage maintaining
- Auto Charge current limit
- Temperature limit
- Time limit
- Automatic cooling fan
- Data store/load
- DJI Phantom™ battery charge program
Spec Check:
- AC Power 100-240V
- DC Power 11-18V
- Charge Current: 0.1-10A
- Discharge Current: 0.1-2A
- Charge Power: 80W
- LiPo/LiFe/LiLon/LiHV: 1-8 Series
- NiMH/NiCd: 1-16 Cells
- Pb Battery Voltage: 2-28V
- Balance Precision: ±0.01V
- USB: 5V/2.1A
- Servo Tester Function: 500-2500us
- Phantom 2™/Phantom 3™ Battery: 1pc
- Phantom 2™/Phantom 3™ Controller: 1pc

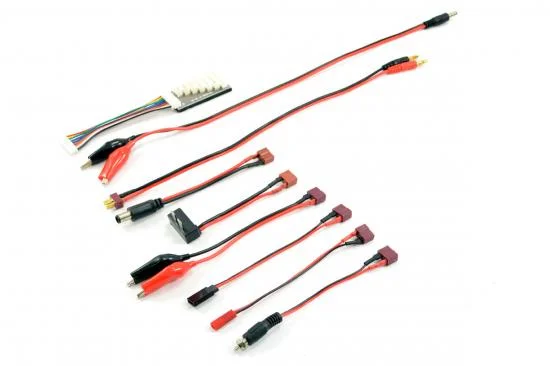

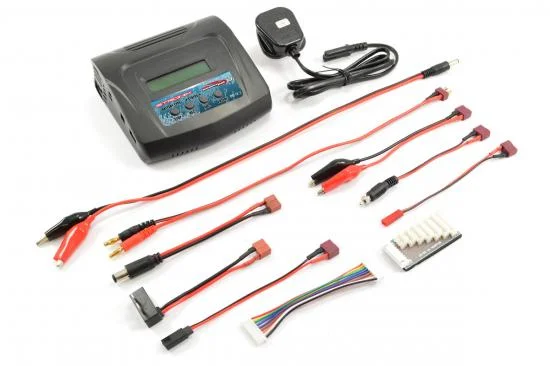

The PowerPal 3.0 also includes the following charging leads and cables:
- XH 2S-8S Balance board and connector lead
- JST BEC Charge lead
- Deans plug charge lead
- Glow plug charge lead
- Universal crocodile lead Receiver/Transmitter charge lead
- DJI Battery charge lead
Secured by Stripe
- Brand: eTronix
- Part No: ET0202
- Barcode: 5056135714485
- Input Voltage:
• 12V
• 240V (UK mains) - Included Connectors:
• 4mm Banana Sockets
• Crocodile Clips
• Deans
• Glow Starter
• Receiver
• Transmitter
• XH LiPo Balancers - Chemistry:
• LiPo
• NiMh / NiCd
This item is also listed in the following additional categories:
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
Charged my lipo battery in an hour. Has all the features you need to keep your lipo battery in good order, with its balance charging and storage options. Easy to use and can't really get it wrong when charging.
Great Charger its nice and easy to use :)
had it for a long time now, no problems and works perfectly.
Arrived next day all good very well packed , First class service thanks see you soon. Eamonn.
WRITE A REVIEW
Questions & Answers
No it cannot charge ID batteries.
Discharge is usually low (1 amp usually) so you may find you cannot adjust that more than 1 amp discharge for safety.
Yes that will charge on standard 7.4v unless you are running it in high voltage 7.6v mode.
I'm afraid not - it comes with a deans charge lead amongst others, so you could use this: ET0818
Yes it would and yes it does ;)
We find they are very good at waking up Nimh batteries if they haven't been used for a while - it would be best to set the charger at 4 amps for that battery and it will take around an hour.
That is a single charger a dual one would be something like this SCH-SK-100162
This can be changed but is set to 10000 mah but can be turned off.
You would need an EC5 charge lead ET0263
Yes this does lipo balance, charge, discharge, storage, as well as all of the other battery types.
1 hour.
Yes it does.
Yes, thjis will beep when the battery is full
Yes that would work for you
Your 5000Mah battery at 1A will take 5 hours to charge, you would need to charge at a higher Amp.
As a rule of thumb normally 1C ( Mah divide 1000 = amps ) so you can charge your battery at 5A and this will then take 1 hour.
Yes it does.
It will charge them but wqe cannot source a charge lead for losi micro connectors i'm afraid.
10a is the maximum charge rate the watts are the power consumed by the charger , this will charge your batteries no problem.
They look to be a standard HV LiPo so yes this should work with an appropriate lead
Yes this is a UK mains plug in with the unit.
It can be yes , we are unsure on charge time based on a 12v input sorry.
Yes
Yes look at ET0271
I'm afraid we do not list a separate balance board for this charger.
Yes that will work fine.
Your C5015 includes a bullet to deans adapter, so just use the included deans lead with the charger
Yes
Yes that will work nicely with that
Yes that will charge those fine and should have spare capacity for the future
Yes this would charge CR294
It includes a deans lead so yes would connect up to that fine
They are simple to setup - choose LiPo Balance Charge, set your voltage (6S 22.2V in your case), set your current (4.5Amps if your battery is a 4500mah), then press and hold enter to start charging.
Full charge should take around 45-60 minutes and it will beep when complete.
Yes that should work fine
Yes, this has an integrated 240v power supply
It has a 12v input - via small crocodile clips, however you could easily wire those into a 12v cigar lighter type socket if you wanted.
Yes
Yes these can charge up to 8S
yes
Yes it will charge 6S
That would charge that in around 1 hour
YEs that would charge those batteries fine
Yes this would work well - you just need a Tamiya charge lead eg CLTAM
Yes you'd want an LiHV charger
Yes these have a storage function
We're not a fan of parallel charging LiPo batteries - it's a bit "messy" and will just increase charge time. Simpler and easier to charge individually.
But technically there's no limit it will just keep increasing the perceived mAh capacity of the battery that the charger "sees". If you really want to do it, we'd recommend no more than 2 or 3 in parallel.
