Description

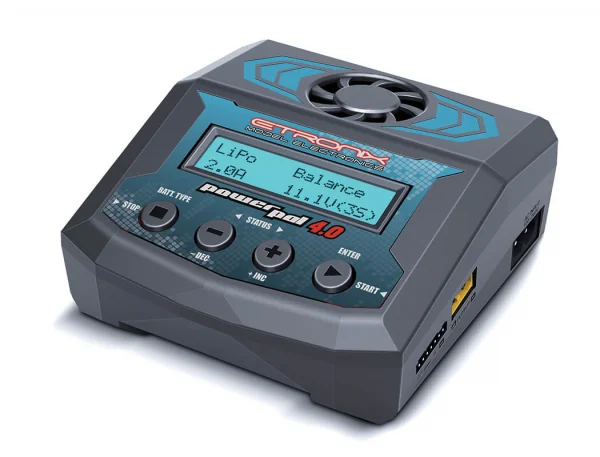

The eTronix PowerPal 4.0 AC/DC Performance Charger/Discharger (Europe), part number ET0206E, is an intelligent RC battery charger and discharger with AC and DC input. It supports several battery chemistries and provides charge, discharge, balance and storage modes for battery maintenance.
With charging output of up to 100W from AC input or 300W from DC input, the PowerPal 4.0 can be used with a range of RC battery packs. Its balancing function monitors individual cells and helps maintain even cell voltage during charging. Automatic current adjustment, variable fan cooling and integrated safety functions support controlled operation.
Features
Alongside its charging and discharging functions, the charger includes tools for checking and maintaining batteries. Users can save battery profiles, run charge and discharge cycles, check cell voltage and test internal resistance. A battery repair function is also provided for low-voltage packs.
- Supports LiPo, LiFe, LiIon, LiHV, NiMH, NiCd, Pb, AGM and SSLB batteries.
- Balance, fast charge, storage, discharge and cycle charging modes.
- Individual cell monitoring with integrated balancing.
- Battery memory, cell voltage checking and internal resistance testing.
- Digital power supply mode with adjustable voltage and current output.
- Motor test function and PWM signal output for servo testing.
- Tyre warmer control function for RC use.
- Automatic cooling with variable fan speed.
The digital power supply mode allows adjustable voltage and current output for workshop use, while the motor test and PWM output functions provide additional testing options for RC systems. Charge and balance leads are not supplied with this charger.
Specifications
- Input voltage: AC 100–240V or DC 11–26V
- Charge current: 0.1–12A
- Discharge current: 0.1–3A, up to 12A in specific modes
- Charge power: 100W maximum on AC and 300W maximum on DC
- Balance current: 1A maximum, with ±0.01V accuracy
- Cell ranges: NiMH/NiCd 1–15 cells; lithium 1–6 cells
- Lead-acid range: 2–20V
- Dimensions and weight: 119 x 122 x 53.5mm and 424g
Secured by Stripe
eTronix Powerpal 4.0 AC/DC Performance Charger/Discharger (Europe) Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
The Etronix PowerPal 4.0 is a powerful and versatile intelligent charger designed for serious RC users. With support for multiple battery chemistries, advanced balancing technology and integrated safety systems, it delivers reliable performance for charging, discharging and battery maintenance.
Engineered for flexibility, the PowerPal 4.0 supports both AC and DC input, offers up to 100W AC / 300W DC charging power and includes advanced features such as balance charging, storage mode, IR testing and motor testing.
Advanced Functions- Balance charge for safe, even cell voltage.
- Fast charge and storage charge modes.
- Battery repair function for low-voltage packs.
- Battery Analysis Tools.
- Cell voltage checker.
- Internal resistance (IR) testing.
- Real-time charge/discharge data display.
- Workshop Utility Features.
- Digital power supply mode (adjustable voltage/current output).
- Motor test function for RC systems.
- PWM signal output for servo testing.
- Tyre warmer control function (RC use).
The PowerPal 4.0 is more than just a charger it’s a complete all-in-one solution battery management system. With high power output, advanced diagnostics and multi-function capability, it’s ideal for RC enthusiasts who want performance, flexibility and safety in one unit.
Features- Multi-chemistry compatibility: LiPo / LiFe / LiIon / LiHV/NiMH / NiCd/Pb (Lead Acid) / AGM / SSLB.
- Charge, discharge, balance & storage modes.
- Optimised automatic charging system adjusts current for efficiency and safety.
- High power output: up to 100W (AC) / 300W (DC).
- Integrated cell balancing – no external balancer required.
- Individual cell monitoring during charge/discharge.
- Battery IR (internal resistance) testing.
- Cell voltage meter function.
- Battery memory storage (save profiles).
- Cycle charging (charge/discharge loops).
- Digital power supply function.
- Motor testing & PWM output functions.
- Automatic cooling system with variable fan speed.
Input Voltage: AC 100-240V, DC 11-26V
Charge Current: 0.1 – 12A
Discharge Current: 0.1 – 3A (up to 12A in specific modes)
Charge Power: AC: Max 100W DC: Max 300W
Discharge Power: Max 5W (up to 300W in external mode)
Balance Current: Max 1A
Balance Accuracy: ±0.01V
NiMH/NiCd: 1-15 Cells
LiPo/LiPo/LiHV/LiLon: 1-6 Cells
Pb: 2-20V
Dimensions: 119 x 122 x 53.5mm
Weight: 424g
Charge leads and balance leads are not supplied.
Key Info:
- Brand: eTronix
- Part No: ET0206E
- Barcode: 5056135795699
