Description
The eTronix Universal Electronic Magnetic Switch ET0774 is a contactless power-control switch for RC and electronic applications. It uses magnetic switching instead of mechanical contacts, allowing the model to be switched externally without unplugging the battery or opening a sealed compartment.
The switch accepts an input voltage from 3.5V to 13V and provides a constant 15A output at 25°C. It can also handle a burst current of up to 45A for 0.1 seconds. A 60mV dropout voltage at 20A helps limit power loss, while standby current below 10µA reduces battery consumption when the system is idle.
This ET0774 version is supplied with 170mm of 14AWG heavy-duty wire and has no connectors fitted. The bare wire ends allow the installation to be configured for a custom setup. The module measures 25 x 10mm, so it can be positioned inside a receiver box or sealed enclosure to help protect the electronics from dirt, fuel and water.
Applications And Features
Magnetic operation is suggested for sealed or waterproof RC installations where access to the battery or receiver box is restricted. Suggested applications include RC boats, yachts, gliders, race models and submarines. The supplied magnet allows the switch to be operated from outside a sealed compartment, helping retain the enclosure seal during normal use.
The contactless design avoids the mechanical wear points associated with a conventional switch. It also allows a model to be prepared in advance and left ready for use, with very low current draw while switched on but idle.
Specifications
- Input voltage: 3.5V–13V
- Continuous current: 15A at 25°C
- Burst current: 45A for 0.1 seconds
- Dropout voltage: 60mV at 20A
- Standby current: less than 10µA
- Module size: 25 x 10mm
- Lead: 170mm 14AWG wire with no connectors fitted

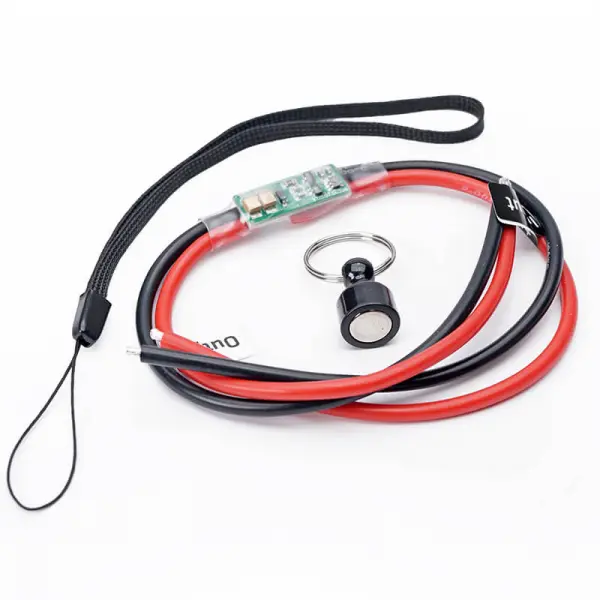

What's Included
- ETRONIX magnetic switch unit
- Magnet
- Wrist lanyard
Secured by Stripe
Specifications
The Etronix Universal Electronic Magnetic Switch is a compact, high-current solution designed for reliable power control across a wide range of RC and electronic applications. Using contactless magnetic switching, it removes mechanical wear points and ensures long-term dependability.
With a 3.5V–13V input range, it’s suitable for most battery setups. The switch delivers a constant 15A output at 25°C, with >burst capability up to 45A (0.1 sec) for handling high-demand loads.
Built for efficiency, it features an ultra-low dropout voltage of 60mV at 20A and standby current below 10µA, helping reduce power loss and extend battery life.
This version is supplied with 170mm 14AWG heavy-duty wire and no connectors fitted, giving maximum flexibility for custom installs and higher current setups. The compact 25 x 10mm module can be mounted neatly inside receiver boxes or sealed enclosures to keep it protected from dirt, fuel, and water.
Why Use a Magnetic Switch?
Magnetic switching removes the hassle of traditional on/off methods. No more unplugging batteries or opening sealed compartments—just switch your model on or off externally using the supplied magnet.
It’s especially useful for sealed or waterproof setups, allowing you to prepare your model in advance and leave it ready to run, with virtually no battery drain while idle. Widely used in boats, gliders, and race models, it’s a simple upgrade that makes day-to-day use much easier.
Features- Magnetic (contactless) switching.
- 14AWG wire (no plugs fitted).
Input Voltage: 3.5V–13V
Continuous Current: 15A @ 25°C
Burst Current: 45A (0.1 sec)
Dropout Voltage: 60mV @ 20A
Standby Current: <10µA
Compact Size: 25 x 10mm
- ETRONIX Magnetic Switch unit.
- Magnet.
- Wrist lanyard.
Ideal for custom builds, as well as RC boats, yachts, gliders, and even submarines, where keeping electronics sealed and protected is essential. Perfect for installations where hatches or receiver boxes are taped or sealed, allowing you to switch on/off without breaking the seal.
A simple, reliable, fit-and-forget solution trusted across a wide range of RC applications
Key Info:
- Brand: eTronix
- Part No: ET0774
- Barcode: 5056135795729
