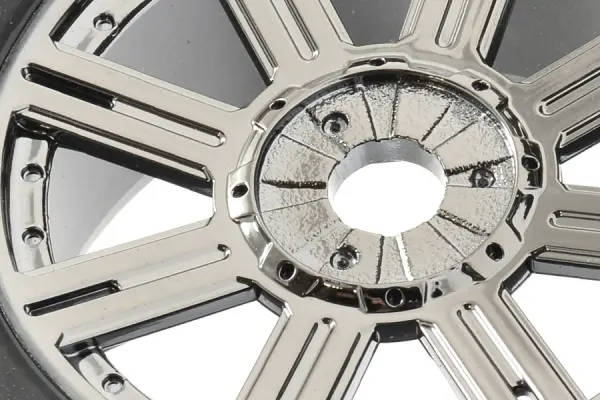

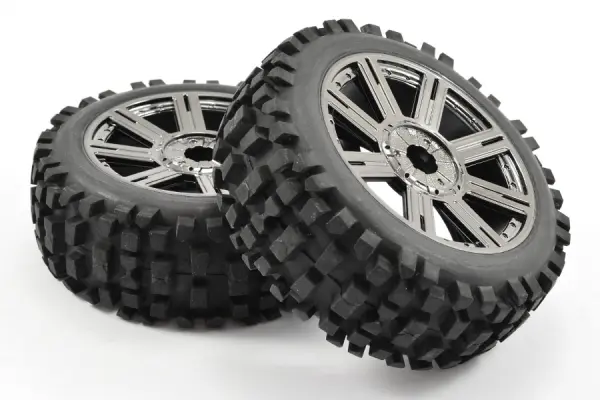

Fastrax 1:8 Rock Block Mounted on 8 Spoke Black Chrome Wheels (2)

The Kyosho Optima Mid Legendary Series – Koswork Edition (part K.30622KE) revives the iconic 4WD racing buggy with a host of premium Koswork upgrades and thoughtful modern updates. Retaining the classic mid-motor layout and racy body lines of the original, this belt-driven chassis has been refined for today’s electronics, gears and tracks while preserving the spirit of the 1980s legend.

A rigid 6061 T6 aluminium countersunk chassis, FRP shock stays, reinforced slipper clutch and full ball bearings provide a precise, efficient platform. The 48-pitch drivetrain with adjustable belt tensioner ensures smooth power delivery, while the included wheels and tyres capture the authentic Optima Mid look and grip.

Koswork Edition Includes

• Koswork Carbon Side Plate
• Koswork Carbon Suspension Holders
• Koswork Carbon Rear Camber Link Mount
• Koswork Carbon Rear Shock Tower
• Koswork Carbon Front Shock Tower
• Koswork Universal Drive Shafts
• Koswork Turnbuckle Set HD

Key Features

• Reinforced Nylon rear wing mount
• Reinforced slipper clutch
• Gold anodised threaded oil shocks
• FRP shock stays
• 6061 T6 aluminium, countersunk chassis
• Moulded resin belt covers
• Belt tensioner with easy adjustment
• Full ball bearing set
• Hex screws throughout
• Adjustable toe-angle rear hubs
• Updated steering belcrank with integrated servo saver
• Strengthened suspension arms with stabilizer mounts
• 12mm hex drive with locking pin
• 2.2" one-piece wheels in the original design
• Body and decal sheet to recreate the original design

Technical Data

• Length: 375mm
• Width: 244mm
• Height: 142mm
• Wheelbase: 255mm
• Tread (F/R): 208mm
• Weight: approx. 1,600g (with 7.2V 4000 LiPo)
• Tyres (F/R): φ82 × 36mm
• Motor: 540 class size (sold separately)
• Gear ratio: 8.28:1
• 48-pitch pinion and 82T spur (compatible with optional 78T/80T)

Kit Contents

• Kit chassis
• Tyres
• Wheels (white)
• Clear body
• Wing (white)
• Mask sheet
• Decals
• Hexagon wrench
• Cross wrench
• Shock wrench
• Grease
• Shock oil

Required for Operation

• 2-channel R/C system
• Servo
• 540 motor
• ESC
• Battery for chassis (7.2V Ni-MH or 7.4V Li-Po)
• Charger for chassis battery
• Batteries for transmitter

Celebrating its world championship heritage, the Optima Mid Koswork Edition blends vintage appeal with contemporary performance enhancements, ready to build and equip with your chosen radio, motor and power system.
