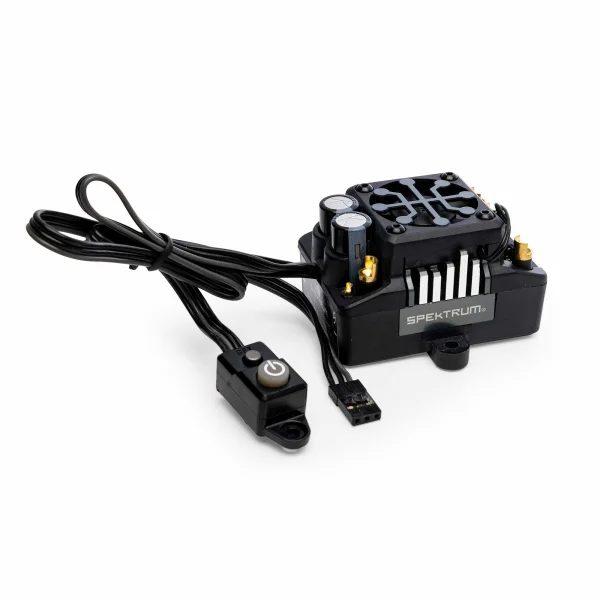

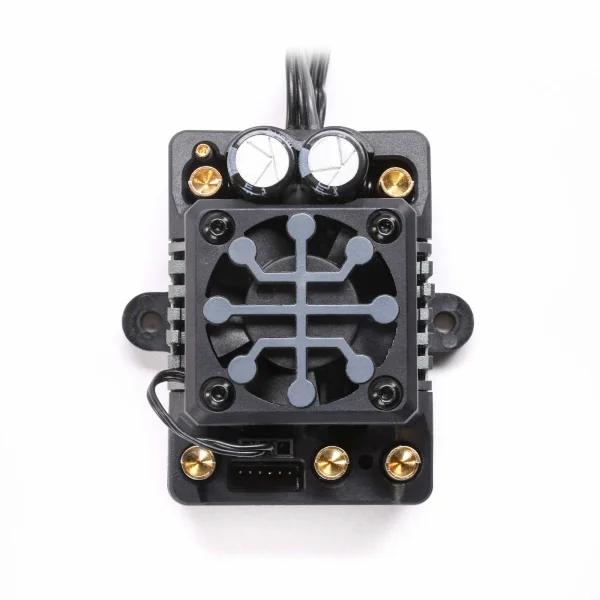

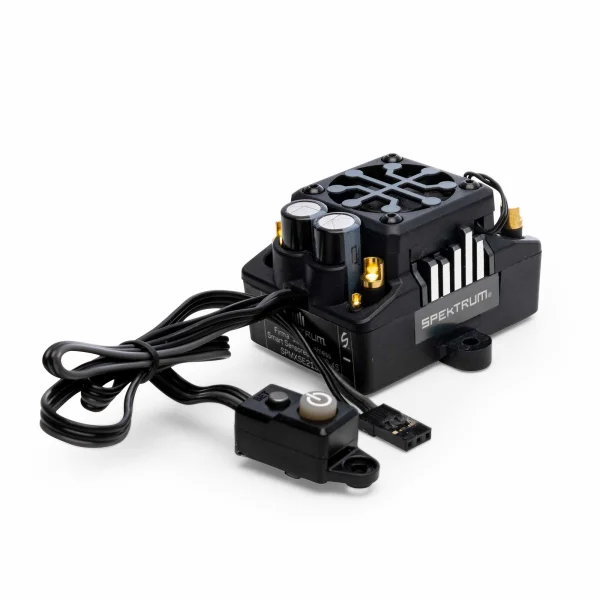

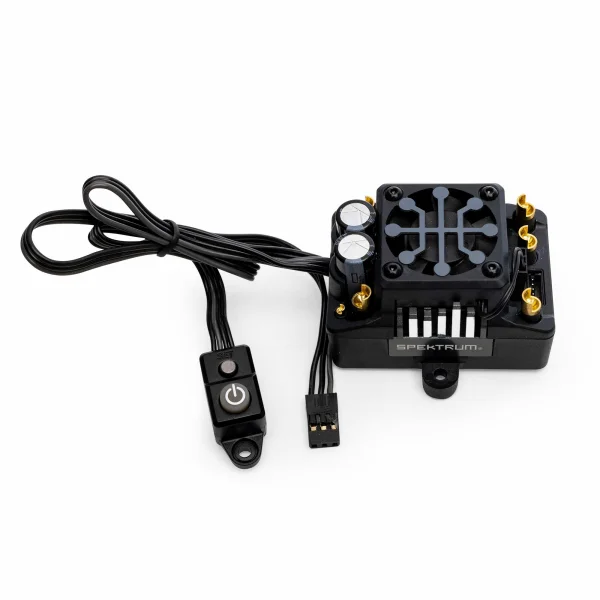

Firma 130A Black Edition Sensored Brushless Smart ESC - 2S-4S
Brand: Spektrum
Part No: SPMXSE2130S
Supplier Stock: Expected June 20th
Request Stock NotificationThe Spektrum Firma 130A Black Edition Sensored Brushless Smart ESC (SPMXSE2130S) brings plug-and-play Smart technology to your 1/10 scale surface builds. Its sensored brushless control and one-wire Smart telemetry connect you directly to real-time data without extra modules or wiring, delivering a streamlined installation and confident tuning on the track or street.
Powered by a fast 32-bit ARM M4 processor, the Firma Smart ESC provides smooth throttle, precise braking and instant access to key metrics such as RPM, ESC temperature, battery voltage and capacity — sent straight to your transmitter as you drive. Robust protection features and a durable, compact case help keep performance consistent run after run.
Suggested compatibility includes 1/10 scale 2WD and 4WD surface vehicles operating on 2S–4S LiPo setups.
Key Features
- Smart all-in-one single-wire telemetry for live RPM, temperature, voltage and capacity
- 32-bit ARM M4 processing for responsive, refined control
- Water-resistant design
- Multiple programming options: on-device button, Smart ESC Programming Box, or SmartLink USB app
- Multi-point protection: over-current, automatic LiPo low-voltage cutoff, thermal and failsafe
- Sensored brushless operation
- Compact case with mounting tabs, aluminium heat sink and cooling fan
- High heat-resistant IC connectors, backwards compatible with EC connectors
- Firmware updatable via the Smart ESC Programming Box
- Developed and designed by Spektrum engineers with a leading ESC manufacturer
Specifications
- Input voltage: 7.4–14.8V (2S–4S LiPo)
- Maximum continuous current: 130A
- Maximum burst current: 760A
- BEC: Adjustable 6V or 7.4V @ 5A
- Connector type: IC5
- Battery connection: Solder tabs (user-installable IC5 lead included)
- Motor limit: 3S < 4000Kv, 4S < 3000Kv
- ESC type: Brushless; Sensored: Yes
- Forward/Reverse/Brakes: Yes
- Low-voltage cutoff: Programmable
- Telemetry: Smart one-wire
- Overload/thermal/failsafe protection: Yes
- Water-resistant: Yes

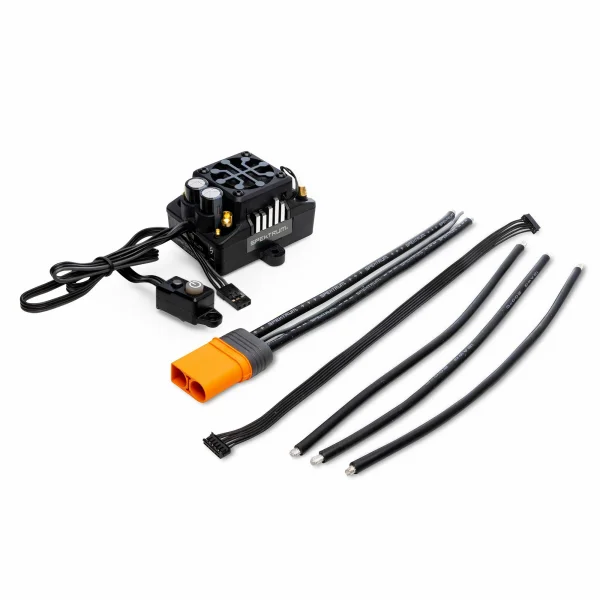

What’s Included
- Spektrum Firma Smart ESC
- Spektrum Smart sticker sheet
- Product manual
Needed to Complete
- Spektrum surface receiver
- Spektrum Smart Technology LiPo battery
- Spektrum transmitter
Secured by Stripe
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.
Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Ideal for 2WD and 4WD 1/10th scale surface applications running on 2S - 4S LiPo setups
- High current adjustable BEC (6V or 7.4V @ 4 Amps)
- Ready to install — no soldering required
- Compact for easy installation in most applications
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Firma 130A Black Edition Sensored Brushless Smart ESC - 2S-4S Specfications:
- Amperage: 120A or larger
- Auto Cutoff: Yes
- Battery Connector: Solder tabs (user installable IC5 lead included)
- Battery Input Lead: None, IC5
- BEC: Yes
- BEC Continous Current: 5A
- BEC Voltage: 6V or 7.4V Adjustable @ 5A
- Brakes: Yes
- Connector Type: IC5
- ESC Type: Brushless
- Forward: Yes
- Input Voltage: 7.4V - 14.8V
- Low-Voltage Cutoff Programmable: Yes
- Maximum Burst Current: 760A
- Maximum Continuous Current: 130A
- Motor Limit: 3S less than 4000Kv, 4S less than 3000Kv
- Motor Output Lead: Solder tab
- Motor Type: Brushless
- Overload Protection: Yes
- Programmable: Yes
- Reverse: Yes
- Sensored: Yes
- Technology: Smart
- Water-Resistant: Yes
- (1) Spektrum™ Firma™ Smart ESC
- (1) Spektrum Smart Sticker Sheet
- (1) Product Manual
- (1) Spektrum™ Surface Receiver
- (1) Spektrum Smart Technology LiPo Battery
- (1) Spektrum Transmitter
Key Info:
- Brand: Spektrum
- Part No: SPMXSE2130S
- Barcode: 0605482184639
- Fitment: Standard Part
