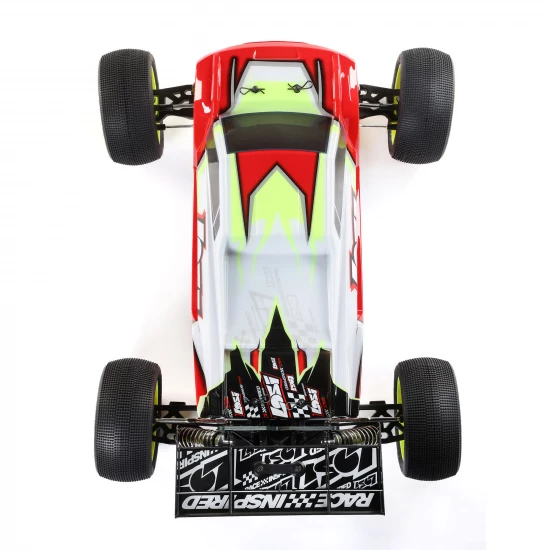

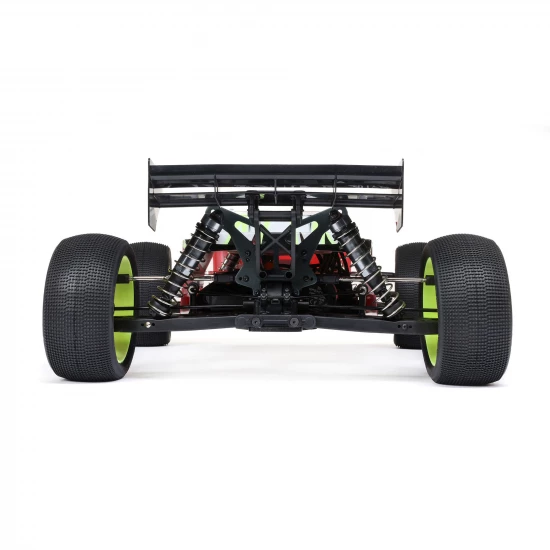

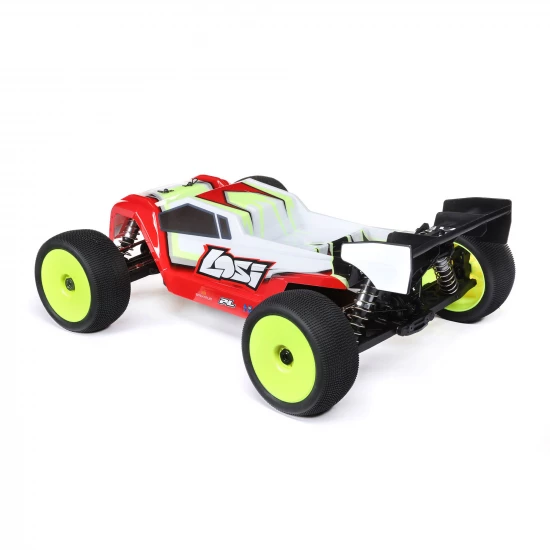

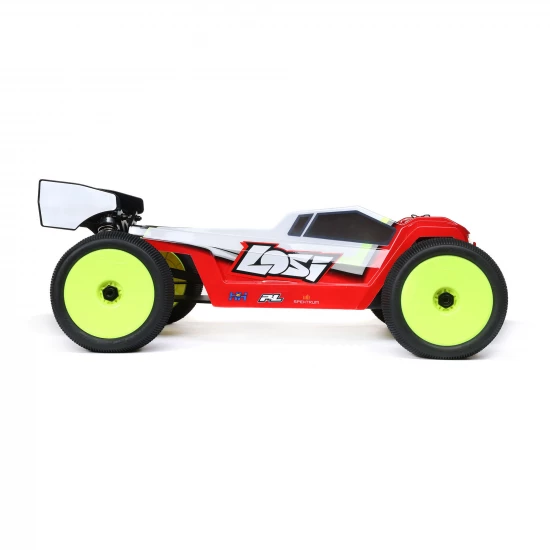

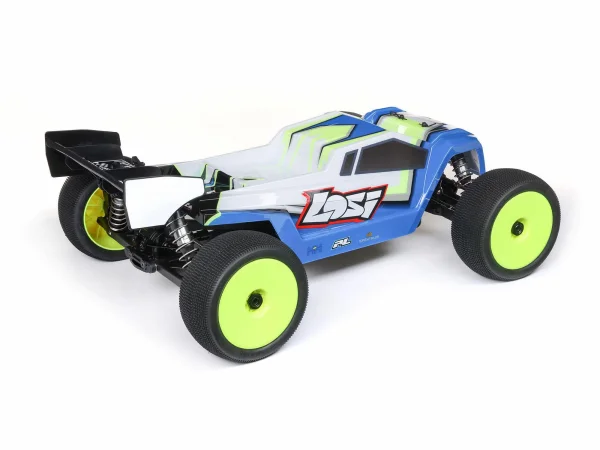

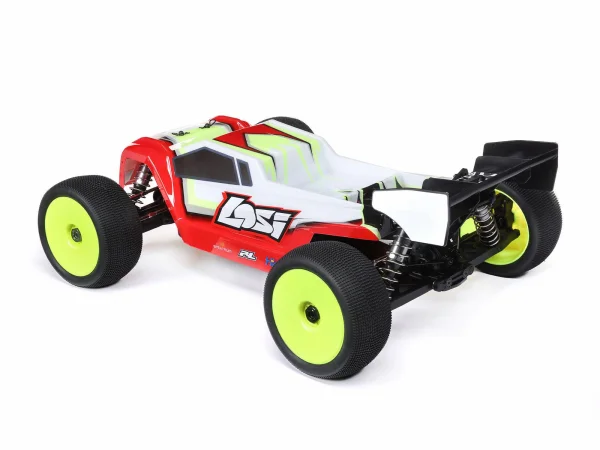

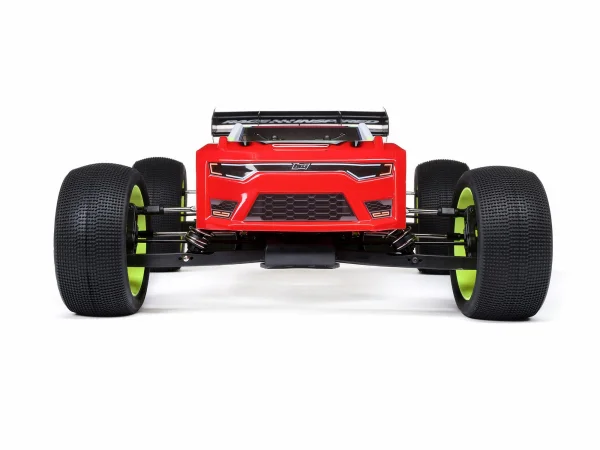

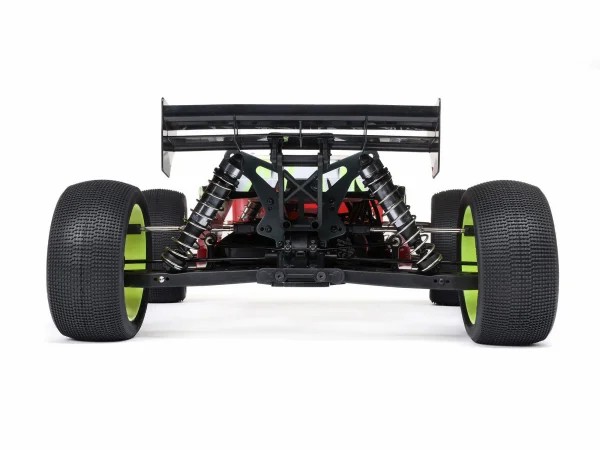

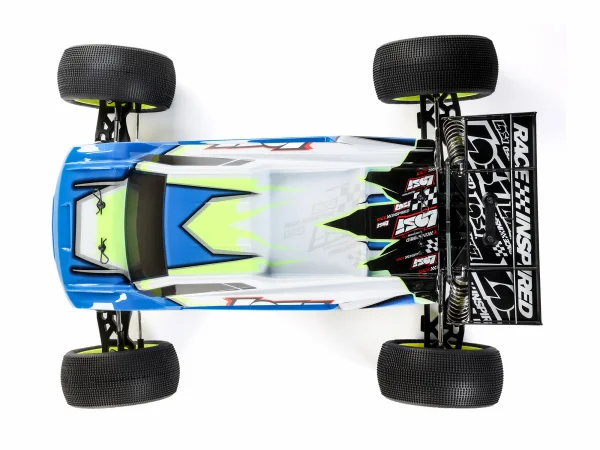

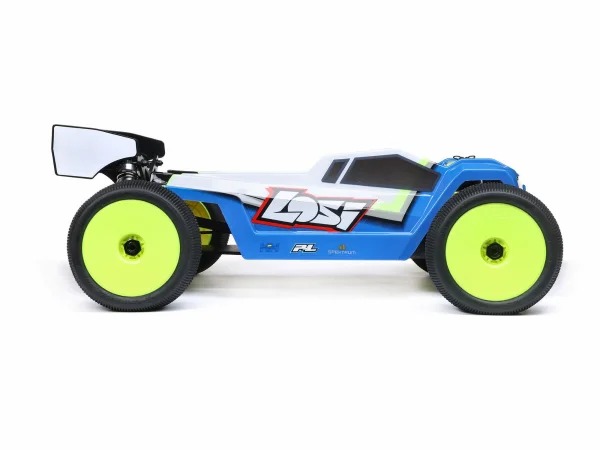

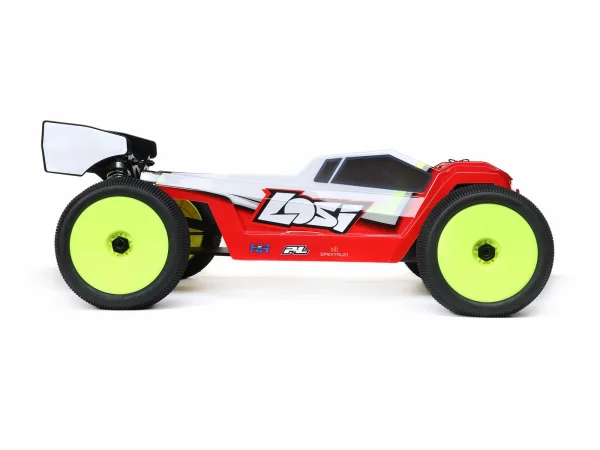

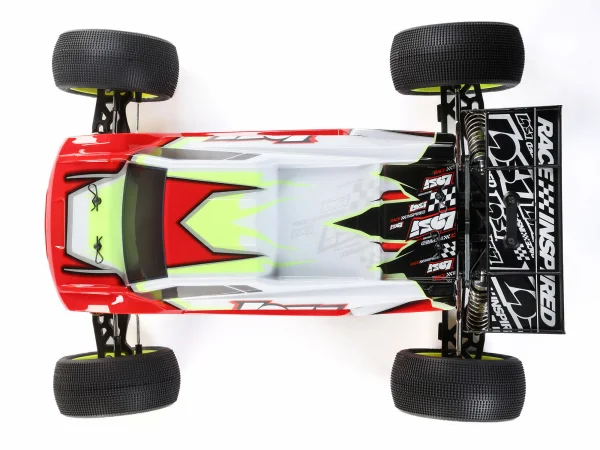

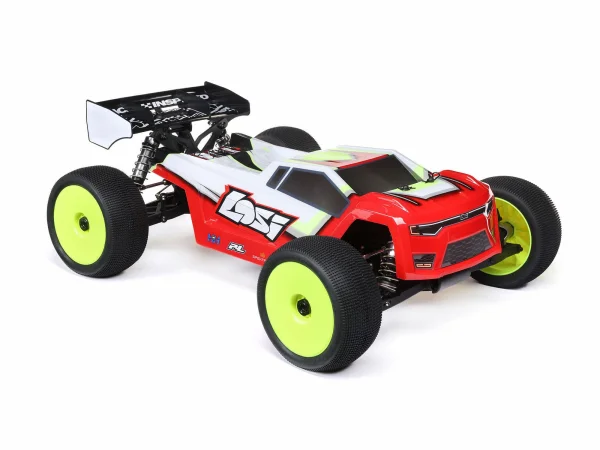

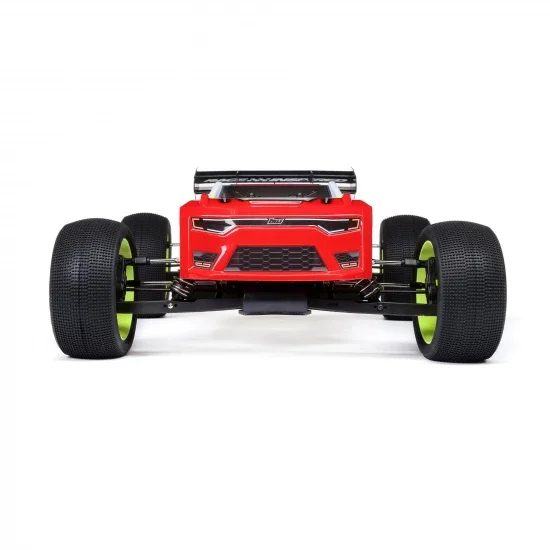

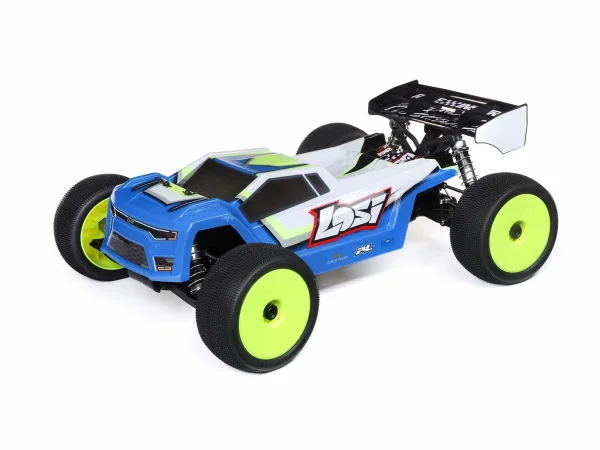

Losi 8IGHT-XTE Truggy RTR 1/8 4WD Brushless (LOS04020)
Brand: Losi
Part No: LOS04020
Out of stock
Request Stock NotificationFinance options available at checkout.
You May Also Need
Add-ons and accessories that go with the Losi 8IGHT-XTE Truggy RTR
Description
The Losi 8IGHT-XTE Truggy RTR (LOS04020) brings 1/8 scale off-road racing performance to a ready-to-run package. Built on the back-to-back ROAR National Champion TLR 8IGHT-X platform, it arrives fully assembled with a sensored brushless power system, robust metal driveline and race-legal electronics — engineered to handle demanding outdoor tracks and long mains.
A Pro-Line Racing OE-spec Axis 8IGHT-XTE body pairs with Velocity wheels and Blockade tyres for proven grip and handling, while aluminium shocks, towers and chassis deliver strength and consistency. Control comes via the included Spektrum DX3 Smart DSMR radio, matched to a race-ready SR315 receiver and S665 metal-gear steering servo. Just add a 4S LiPo, a compatible charger and paint the cab-forward body in your colours.
Key Features
- Based on the ROAR National Championship winning TLR 8IGHT-X platform

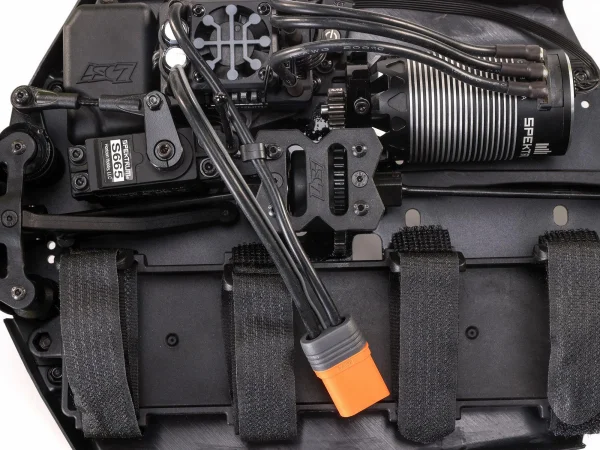

- Smooth, fast and precise sensored brushless power system
- Fully race-legal chassis and electronics
- Aggressive racing performance with electric power’s simplicity
- Spektrum DX3 2.4GHz Smart DSMR transmitter
- Spektrum S665 waterproof digital steering servo
- Spektrum SR315 race-ready receiver

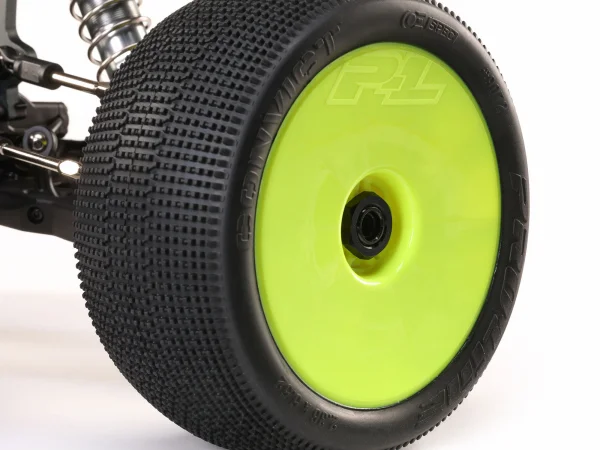

- Pro-Line Racing OE-spec Axis 8IGHT-XTE body, Blockade tyres and Velocity wheels

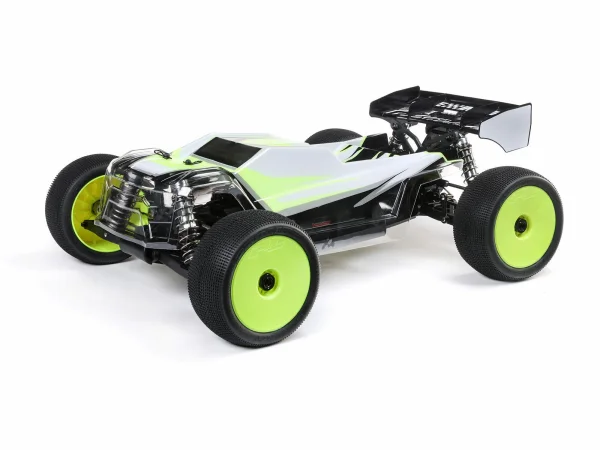

- Paint-to-complete, cab-forward racing body

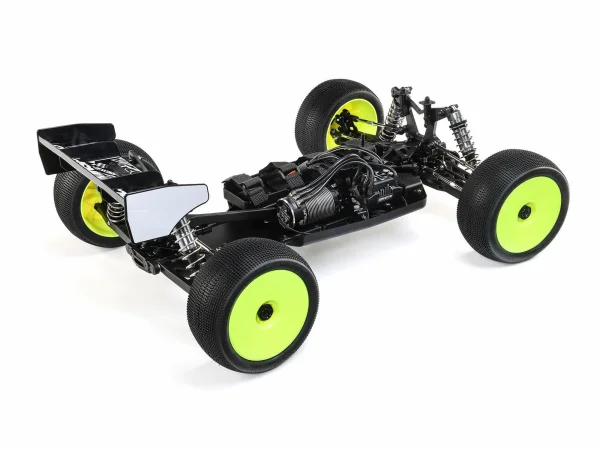

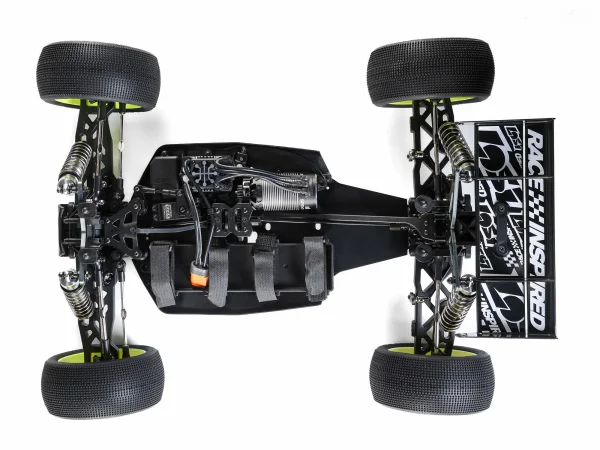

- Aluminium chassis
- Strong, full-metal driveline
- Fluid-filled, sealed differentials

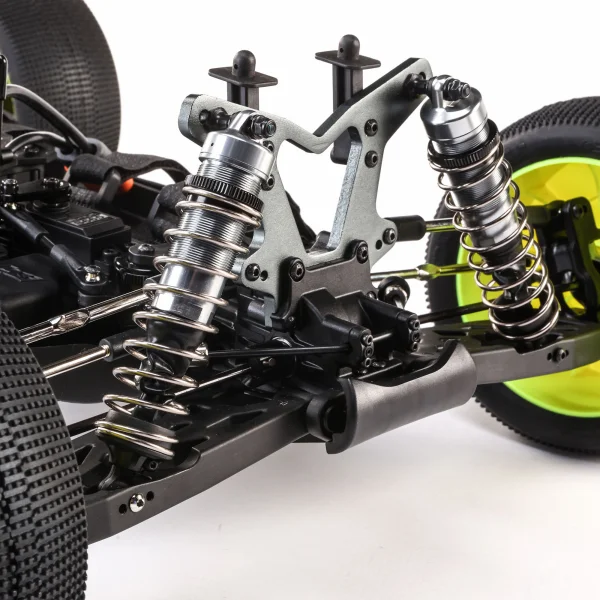

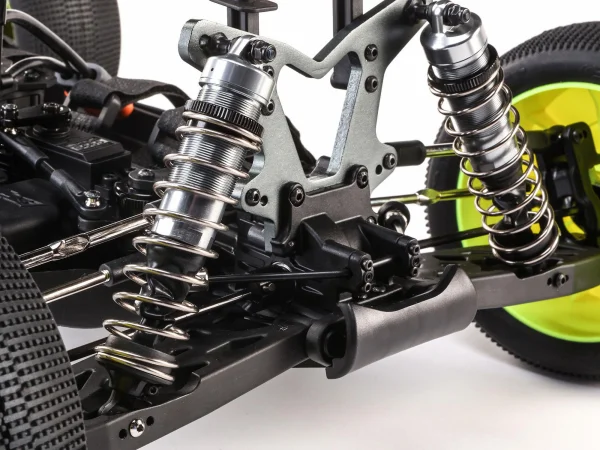

- Aluminium oil-filled shocks
- Aluminium shock towers
- Front and rear swaybars
- Adjustable steel turnbuckles

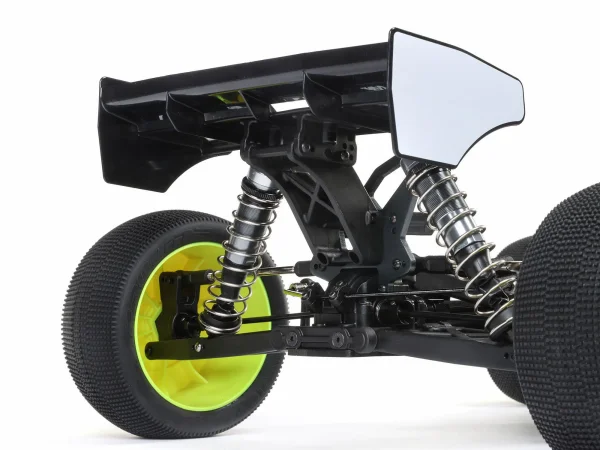

- Adjustable wing mount
Specifications
- Completion Level: Ready-To-Run
- Assembly: No assembly required
- Power Type: Electric, 4S LiPo compatible
- Motor: Brushless, Spektrum 2250Kv sensored
- ESC: Spektrum Firma 130A sensored
- Radio System: Spektrum DX3 transmitter with SR315 receiver
- Servo: Spektrum S665 waterproof digital steering servo
- Drivetrain: 4WD, forward/reverse
- Differentials: Gear type, fluid-filled and sealed
- Driveline: Full metal
- Gear Pitch: Mod-1
- Pinion/Spur: 15T / 46T
- Overall Gear Ratio: 13.19 (internal 4.30)
- Connector Type: IC5
- Shock Type: Oil-filled (4,545 WT)
- Top Speed: 40+
- Chassis: 4mm aluminium
- Scale: 1/8
- Vehicle Type: Truggy
- Vehicle Size: Standard
- Wheelbase: 14.8" (376 mm)
- Length: 21.26" (540 mm)
- Width: 16.65" (423 mm)
- Body: Trimmed with decal sheet (paint required)
In The Box

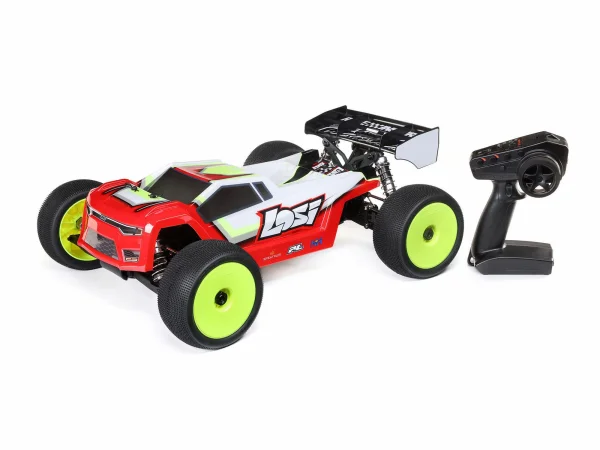

- Fully assembled Losi 8IGHT-XTE 1/8 Scale 4WD Truggy RTR
- Spektrum DX3 2.4GHz Smart DSMR transmitter
- 4x AA transmitter batteries
- Spektrum S665 waterproof digital steering servo
- Spektrum SR315 receiver
- Spektrum 2250Kv sensored brushless motor
- Spektrum Firma 130A sensored ESC
- Miscellaneous tools
- Decal sheet
- Instruction manual
Needed to Complete
- 1x 4S LiPo battery
- 1x compatible charger
- RC body paint
Secured by Stripe
Losi 8IGHT-XTE Truggy RTR Manuals & Guides
Losi 8IGHT XT/XTE Interactive Views
Tap any part on the diagram to see it and buy it.
Manuals & Guides
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020)
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009)
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 2
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 3
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 7
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 12
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 13
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 14
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 15
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 16
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 20
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 8
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 9
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 10
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 11
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 12
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 13
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 14
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 15
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 16
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 17
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 18
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 19
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 21
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 22
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 23
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 24
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 25
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 26
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 27
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 29
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 30
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 31
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 32
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 33
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 34
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 35
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 36
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 37
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 38
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 39
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 40
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 41
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 42
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 43
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 45
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 46
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 47
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 49
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 50
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 51
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 52
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 53
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 55
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 56
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 57
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 58
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 59
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 60
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 62
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 63
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 64
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 66
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 67
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 80
Specifications
The pinnacle of outdoor RC car competition is 1/8 scale off-road racing. The tracks often stretch over 20,000 square feet, challenging each driver’s abilities with numerous turns, washboard sections, and off-camber corners. Multiple elevation changes send the cars leaping more than 30 feet as they sprint for a place on the podium.
If you’re eager to experience 1/8 scale off-road racing thrills for yourself, you’ll need a vehicle that’s adaptable to track conditions and to your own driving style. It should have a combination of race-proven features that will give you a head start toward the win — the right shock package, the best tire compound and tread, and differentials tuned to put maximum power to the ground. It should be the 1/8 scale Losi 8IGHT-XTE 4WD Racing Truggy.
With generous track width and massive, 5.5 inch tires, 1/8 scale truggies can easily speed over rough terrain without slowing to avoid mishaps. They’re incredibly fast and they’re tough enough to survive long racing mains on the world’s largest outdoor tracks.
The Losi 8IGHT-XTE 4WD Racing Truggy fits that description to a “T”. Based on the back-to-back ROAR National Champion TLR 8IGHT-X platform, it’s loaded with engineering that’s proven to win races. Standard features include a race-legal brushless power system and chassis specs with a full metal driveline and competition-caliber Spektrum S665 metal gear steering servo. If that’s not enough to get your opponents’ attention, the truggy’s Pro-Line Racing OE-Spec Axis 8IGHT-XTE body, Blockade tires, and Velocity wheels are the exact same race-proven designs used to compete around the world.
The Losi 8IGHT-XTE delivers a winning value, too. To start racing with a 1/8 scale truggy that’s this well-equipped, you’d normally have to buy a kit, assembly tools, and completion parts — spending as much as $1600 total or more — and then also invest the time needed to put it all together. You can race the 8IGHT-XTE as soon as you finish its paint-to-complete, cab-forward body in your favorite colors and install your choice of charged 4S LiPo battery. Keep a second charged battery on hand and you can be in and out of the pits in an instant, enjoying performance that’s as aggressive as a nitro truggy but with electric power’s simplicity.
World-class TLR option parts are directly compatible with the 8IGHT-XTE. As your skills grow, you can upgrade your truggy into an indomitable racing machine. If you’re a fan of real auto racing, joining 1/8 scale RC racing with the 8IGHT-XTE will teach you about suspension dynamics and other subjects that make a difference in full-scale competition.
The RC racing hobby is ultimately about more than winning. It’s about being part of a team, going to events, trading set-ups, and cheering each other on from the pits. To get there, start here — with the Losi 8IGHT-XTE 4WD. The fully assembled, ready-to-run 1/8 scale racing truggy comes with a Spektrum DX3 radio and requires only a 4S LiPo battery and compatible charger.
Losi 1/8 8IGHT-XTE 4WD Sensored Brushless Racing Truggy RTR Features- Based on the ROAR National Championship winning TLR 8IGHT-X platform
- Smooth, fast, and precise sensored brushless power racing system
- Fully race-legal chassis and electronics
- Aggressive racing performance with electric power’s simplicity
- Spektrum DX3 2.4GHz Smart DSMR transmitter
- Spektrum S665 waterproof digital steering servo
- Spektrum SR315 race-ready receiver
- Pro-Line Racing OE-Spec body, wheels, and tires
- Paint-to-complete, cab-forward racing body
- Gives first-time 1/8 scale truggy racing competitors the most “bang for the buck”
- Aluminum chassis
- Strong, full-metal driveline
- Fluid-filled, sealed differentials
- Aluminum oil-filled shocks
- Aluminum shock towers
- Front and rear swaybars
- Adjustable steel turnbuckles
- Adjustable wing mount
Losi 8IGHT-XTE Truggy RTR Specfications:
- Approximate Assembly Time: No Assembly Required
- Battery: Sold Separately
- Body: Trimmed with decal sheet (Paint Required)
- Charger: Sold Separately
- Chassis: 4mm Aluminum
- Completion Level: Ready-To-Run
- Connector Type: IC5
- Differential: Gear
- Drive Type: Forward/Reverse
- Drivetrain: 4WD
- Gear Pitch: Mod-1
- Gear Ratio: 13.19
- Internal Gear Ratio: 4.30
- LiPo Compatibility: 4S
- Motor Type: Brushless
- Pinion: 15T
- Power System: 4S
- Power Type: Electric
- Product Length: 21.26" (540 mm)
- Product Width: 16.65" (423 mm)
- Radio: Included
- Receiver: Included
- Scale: 1/8
- Shock Type: Oil-filled (4,545 WT)
- Speed Control: Included
- Spur Gear: 46T
- Top Speed: 40+
- Vehicle Size: Standard
- Vehicle Type: Truggy
- Wheelbase: 14.8" (376 mm)
- (1) Fully Assembled Losi 8IGHT-XTE 1/8 Scale 4WD Truggy RTR
- (1) Spektrum DX3 2.4GHz Smart DSMR Transmitter
- (4) AA Transmitter Batteries
- (1) Spektrum S665 Waterproof Digital Steering Servo
- (1) Spektrum SR315 Receiver
- (1) Spektrum 2250Kv Sensored Brushless Motor
- (1) Spektrum Firma 130A Sensored ESC
- Miscellaneous Tools
- (1) Decal Sheet
- (1) Instruction Manual
- (1) 4S LiPo Battery
- (1) Compatible Charger
- RC Body Paint
Key Info:
- Brand: Losi
- Part No: LOS04020
- Barcode: 0660132884031
- Scale: 1:8
- Build Level: Assembled (RTR)
- Power Source: Electric - Brushless
- Surface Type: Off Road
- Vehicle Type: Truggy
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
For more in depth queries, please contact us.
Losi 8IGHT-XTE Truggy RTR Manuals & Guides
Losi 8IGHT XT/XTE Interactive Views
Tap any part on the diagram to see it and buy it.
Manuals & Guides
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020)
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009)
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 2
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 3
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 7
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 12
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 13
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 14
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 15
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 16
- Losi 8IGHT XT/XTE Instruction Manual (LOS04020) – page 20
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 8
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 9
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 10
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 11
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 12
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 13
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 14
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 15
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 16
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 17
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 18
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 19
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 21
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 22
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 23
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 24
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 25
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 26
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 27
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 29
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 30
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 31
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 32
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 33
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 34
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 35
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 36
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 37
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 38
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 39
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 40
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 41
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 42
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 43
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 45
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 46
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 47
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 49
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 50
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 51
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 52
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 53
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 55
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 56
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 57
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 58
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 59
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 60
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 62
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 63
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 64
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 66
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 67
- Losi 8IGHT XT/XTE Instruction Manual (TLR04009) – page 80
