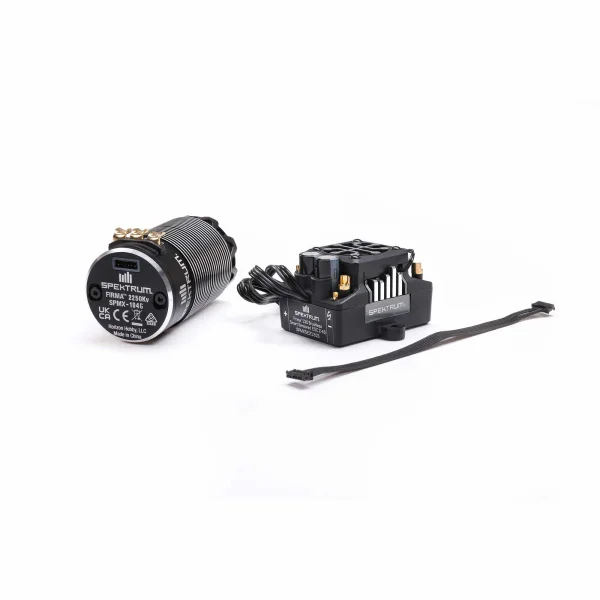

Firma 1:8 Smart Sensored Motor/ESC Combo: 2250Kv

The Spektrum Firma Sensored ESC System is a combo that includes a Sensored 2250kv Motor and the Firma 130 Amp Sensored ESC, providing a perfect upgrade for 1/8th scale truggies.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

Firma ESCs gather the data and send it to your transmitter in real time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

This ESC comes bundled with a Spektrum Firma 2250Kv Brushless Motor, which is capable of handling everything this ESC can put out and is perfect for getting you driving with Spektrum Smart technology.

• Smart all-in-one telemetry
• Fast, powerful 32-bit ARM M4 processor
• Multiple options for easy programming:
• Button programming
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Multi-point protection:
• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection

• Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
• Comes bundled with Spektrum Firma 2250Kv Brushless Motor
• Compact for easy installation in most applications
• Ready to install — no soldering required
• Rugged plastic case with mounting tabs
• Aluminum heat sink for high efficiency
• Cooling fan
• Adjustable high-power BEC
• Firmware updatable through the Smart ESC Programming Box
• High heat-resistant IC™ connectors, backward compatible with EC™ connectors
• Limited 1-year warranty

Firma 1/8 Smart Sensored Motor/ESC Combo: 2250Kv Specfications:

• Battery Connector: Solder tabs (user installable IC5 lead included)
• Battery Input Lead: None, IC5
• BEC: Yes
• BEC Continous Current: 5A
• BEC Type: Adjustable
• BEC Voltage: 6V or 7.4V
• Brakes: Yes
• Bushing Or Bearing: Bearing
• Connector Type: IC5
• ESC Type: Sensored Brushless
• Forward: Yes
• Input Voltage: 3-4S LiPo
• Maximum Burst Current: 760A
• Maximum Continuous Current: 130A
• Motor Output Lead: Solder tabs
• Motor Type: Brushless
• Number of Poles: 4
• Programmable: Yes
• Reverse: Yes
• RPM/Volt (Kv): 2250Kv
• Sensored: Yes
• Shaft Diameter: 0.19" (5 mm)
• Shaft Length: 0.73" (19 mm)
• Speed Control: Included
• Technology: Smart

• (1) Spektrum™ Firma™ 130A Black Edition Sensored Brushless Smart ESC
• (1) Spektrum™ Firma™ 4274 2250Kv 4-Pole Sensored Brushless Motor
• (1) Product Manual

• (1) Spektrum™ Surface Receiver
• (1) Spektrum Smart Technology LiPo Battery
• (1) Spektrum Transmitter

• Brand: Spektrum
• Part No: SPMXSEMC21
• Barcode: 0660132888329
