Firma 2100Kv Brushless Sensored Crawler Motor
Brand: Spektrum
Part No: SPMXSM3001
Supplier Stock: Expected May 23rd

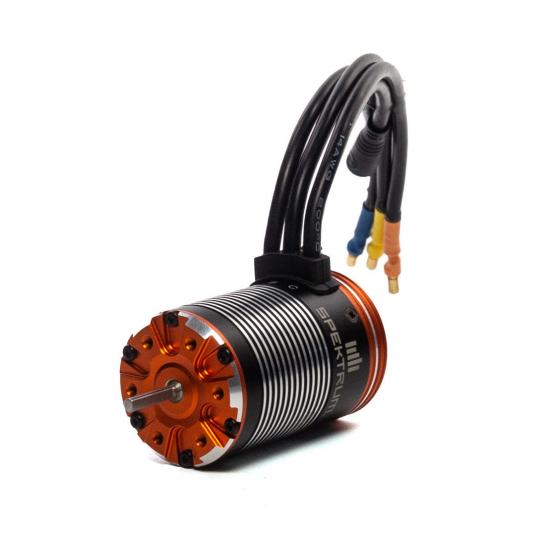

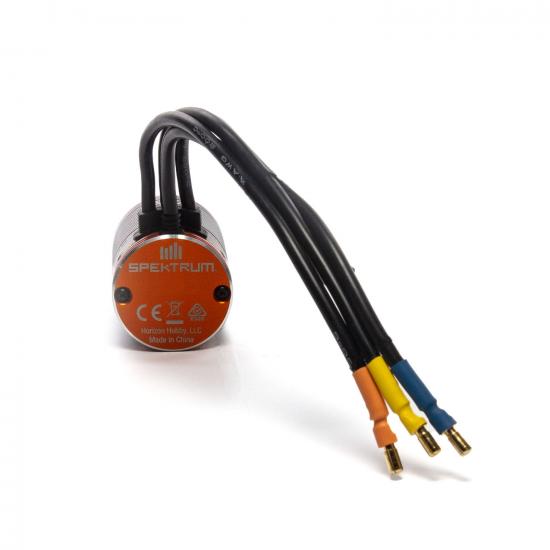

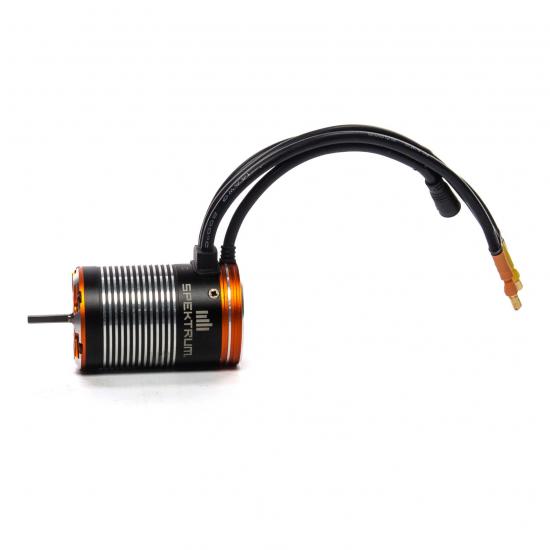

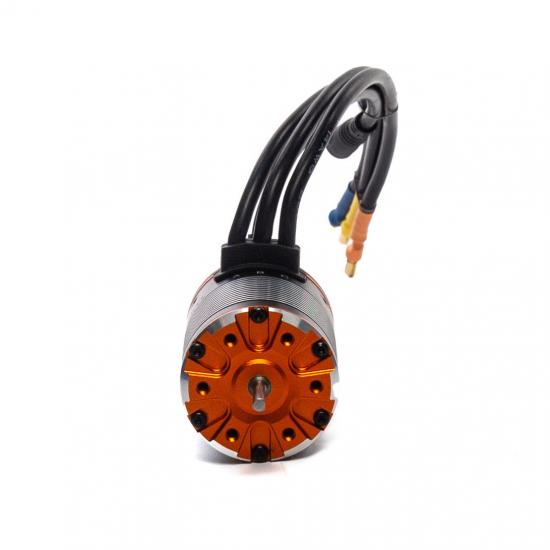

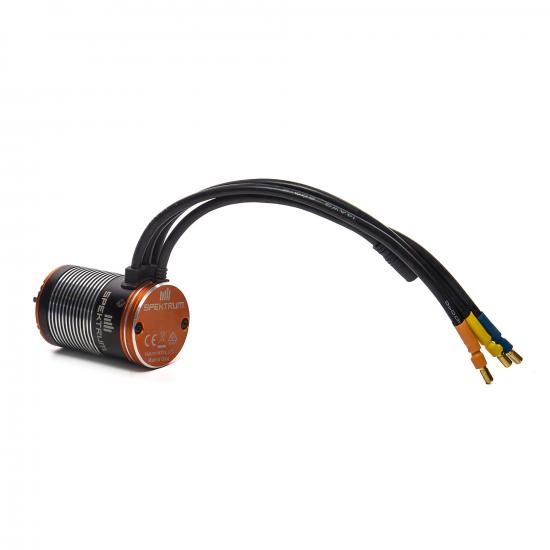

Request Stock NotificationThe Spektrum Firma 2100Kv Brushless Sensored Crawler Motor (SPMXSM3001) delivers smooth, low‑cog control and dependable torque for 1/10 scale crawlers, rock racers and trail rigs on 2S–3S LiPo. Its 4‑pole, 8‑magnet rotor, CNC‑machined aluminium housing, precision bearings and insulated high‑purity copper windings are engineered for durability and consistent, low‑speed throttle response. Pre‑installed 3.5mm gold‑plated bullets make installation straightforward, and the water‑resistant sensor lead features a locking plug and gasket for added reliability.
Key Features
- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" bore)
- Balanced speed and torque for trail and scale crawling applications
- High‑quality 4‑pole sintered rotor for strong, smooth power
- Polarity protection via magnetic encoder for precise phase signalling — match wire colour to ESC connectors
- 3.5mm gold‑plated bullet connectors pre‑installed

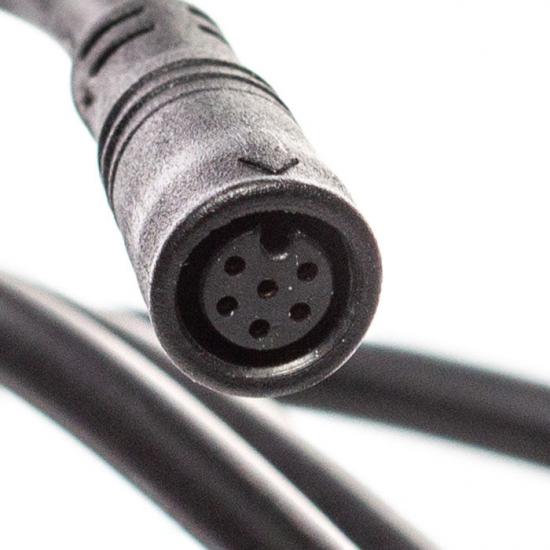

- Waterproof sensor wire with locking plug and gasket
- Precision ball bearings and hardened steel 1/8" shaft
- Sensored FOC control for excellent low‑speed modulation
Specifications
- Motor size/class: 540, 1/10 scale
- Outer diameter: 36 mm
- Length: 58 mm
- Kv rating: 2100Kv
- Input voltage: 7.4–11.1V (2S–3S LiPo)
- Maximum continuous current: 38A
- Constant wattage: 250–499W
- Number of poles: 4
- Motor type: Brushless, sensored (FOC)
- Connector type: 3.5mm bullet
- Water‑resistant: Yes
- Forward/Reverse: Yes
- Product application: Crawling, surface
- Recommended speed control: Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
Required to Complete
- Spektrum Firma 60A Sensored Brushless Smart Crawler ESC (required)
Secured by Stripe
The Firma 2100Kv Sensored brushless motor is a great choice for 1/10 scale crawlers, rock racers, and trailers running on 2S – 3S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 3.5mm gold plated bullet connectors for easy installation. The Spektrum FIRMA 60A Sensored Brushless Smart Crawler ESC is required.
Features- Excellent upgrade for 540 brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" mm bore)
- Perfect balance of speed and torque, great for trail and scale crawling applications
- High-quality 4-pole sintered rotor
- Polarity protection - magnetic encoder inside the motor guarantees consistency between three phases' signals and always outputs precise signals indicated by rotor position. When installing simply match wire color to esc connectors
- 3.5mm gold plated bullet connectors
- Waterproof sensor wire with locking plug and gasket
- High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Firma 2100Kv Brushless Sensored Crawler Motor Specfications:
- Integrated ESC: No
- Outer Diameter: 1.42" (36 mm)
- Constant Wattage: 250-499W
- Maximum Continuous Current: 38A
- Motor Type: Brushless
- Input Voltage: 7.4 - 11.1V
- Kv Rating: 2000-2499Kv
- Motor Output Lead: 3.5
- Product Application: Crawling, Surface
- Recommended Speed Control: Spektrum Firma 60A Sensored Brushless Smart Crawler ESC
- RPM/Volt (Kv): 2100Kv
- Sensored: Yes
- Sensor Type: Sensored FOC
- Application: 1/10 scale crawlers, rock racers, and trailers running on 2S-3S LiPo power
- Number of Poles: 4
- Shaft Diameter: 0.125" (3 mm)
- Water-Resistant: Yes
- Connector Type: 3.5mm Bullet
- Motor Class: 1/10 Scale
- Motor Size: 540-2100Kv Brushless Sensored
- Product Length: 2.27" (58 mm)
- Bushing Or Bearing: Bearing
- Forward: Yes
- Reverse: Yes
Key Info:
- Brand: Spektrum
- Part No: SPMXSM3001
- Barcode: 0605482725634
- Fitment: Option Part
