Spektrum Firma 250A Brushless Smart ESC SPMXSE2250
Brand: Spektrum
Part No: SPMXSE2250
Expected Mon 16 Nov
Request Stock NotificationFinance options available at checkout.
Fits These Models (2)
Show all 2 models
You May Also Need
Add-ons and accessories that go with the Firma 250A Brushless Smart ESC - 6S-12S: Dual IC5
Description

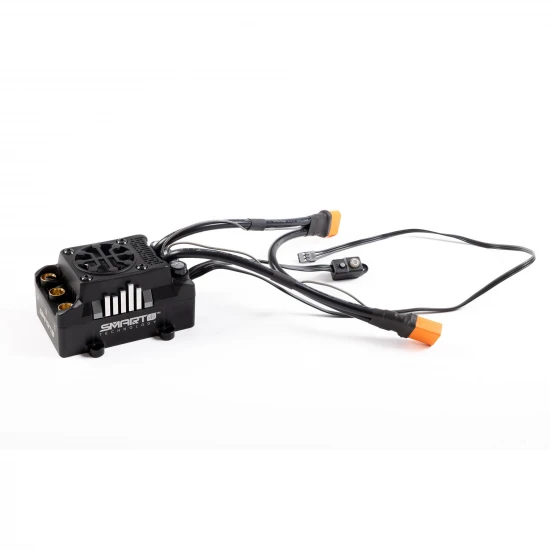

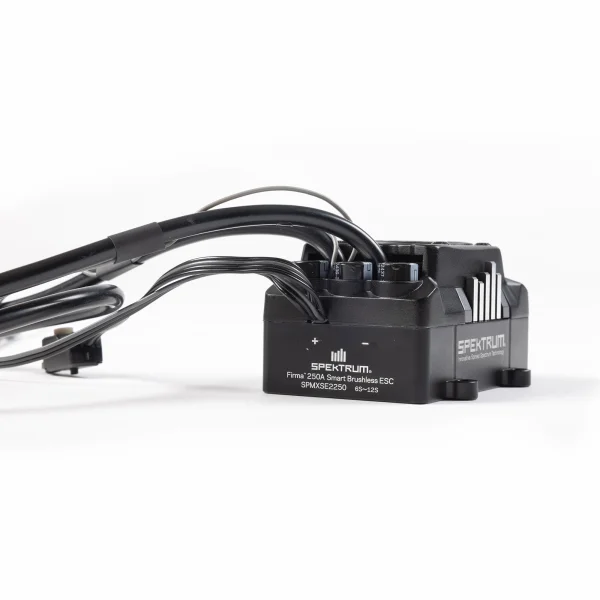

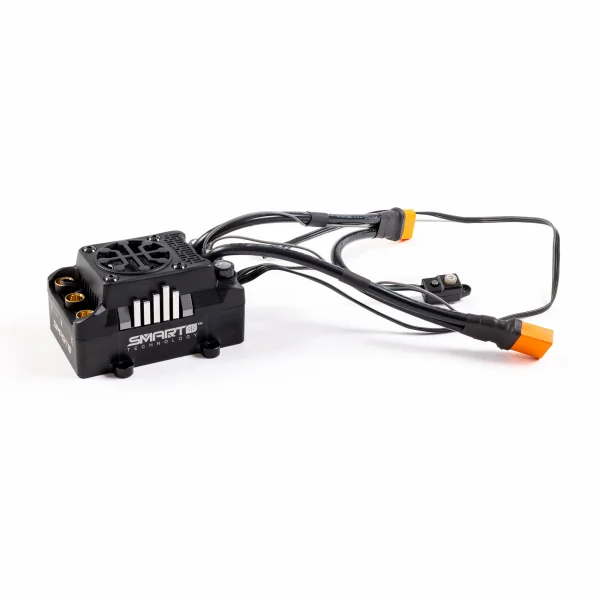

The Spektrum Firma 250A Brushless Smart ESC - 6S-12S: Dual IC5, part number SPMXSE2250, is a brushless electronic speed control for 1/5 scale surface vehicles. It is designed for models powered by 6S to 12S LiPo batteries and combines motor control with Smart telemetry in one unit.
Using a single telemetry wire, the ESC can send operating information to a compatible Spektrum transmitter in real time. Available data may include motor RPM, battery voltage, temperature, capacity and speed, while a Spektrum Smart LiPo battery can provide further battery information such as charge percentage, cycle count and individual cell voltage. Telemetry functions depend on the radio equipment and compatibility used.

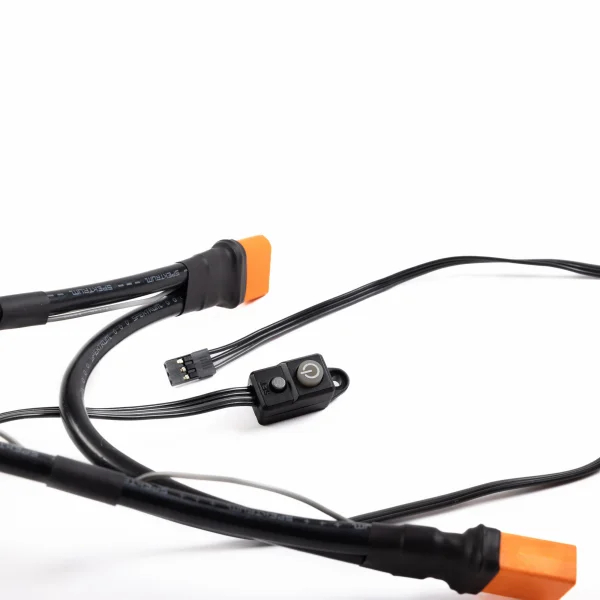

The ESC has dual IC5 battery connectors and is also compatible with EC5 plugs for basic operation and ESC telemetry. Its waterproof design is intended for use across varied outdoor conditions, including dust, gravel, snow and water. The case includes mounting tabs, an aluminium heat sink and a cooling fan.
Features
Settings can be adjusted using the built-in button programming, a Spektrum Smart ESC Programming Box or the SmartLink USB updating and PC programmer application. Firmware can also be updated through the Smart ESC Programming Box. A 32-bit ARM M4 processor manages signal input and motor output, while protection functions monitor the system during operation.
- Smart one-wire telemetry
- Waterproof design*
- Over-current, thermal, failsafe and LiPo low-voltage protection
- Adjustable high-current BEC
- Ready to install without soldering
- Aluminium heat sink and cooling fan
Specifications
- Battery range: 6S-12S LiPo
- Scale application: 1/5 scale surface vehicles
- BEC output: 6.0V, 7.4V or 8.4V adjustable at 8A
- Processor: 32-bit ARM M4
- Battery connectors: Dual IC5
*Refer to the product manual for full waterproofing details and telemetry compatibility information.
Secured by Stripe
Firma 250A Brushless Smart ESC - 6S-12S: Dual IC5 Manuals & Guides
Manuals & Guides
Specifications
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics, creating the best-performing RC system for your vehicle.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you more confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever without installing extra components that work independently. You won't need additional wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage, and capacity.
Firma ESCs gather the data and send it to your transmitter in real-time instead of storing it for an after-run study. You can adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Waterproof*
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
- Designed specifically for 1/5 scale surface vehicles running on 6S - 12S LiPo Power
- High current adjustable BEC (6.0V/7.4V/8.4V Adjustable @ 8A)
- Ready to install - no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box
- Limited 1-year warranty
- * See manual for details
The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.
This Firma™ ESC features an IC5™ battery connector. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC5 connector-equipped Spektrum Smart battery, the ESC can receive and transmit battery telemetry dat'a. EC5 plugs are also compatible with IC5 plugs for basic operation and ESC telemetry.
No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real-time, including RPM, voltage, temperature, balance, capacity, and speed.*
*See the compatibility chart for more information.
When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides battery telemetry that's automatically transmitted to your compatible Spektrum radio in real-time. On your transmitter screen, you'll be presented with helpful information such as the number of cycles, battery percentage, individual cell voltage, and more!
Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.
The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.
Key Info:
- Brand: Spektrum
- Part No: SPMXSE2250
- Barcode: 0660132654863
- Fitment: Standard Part
