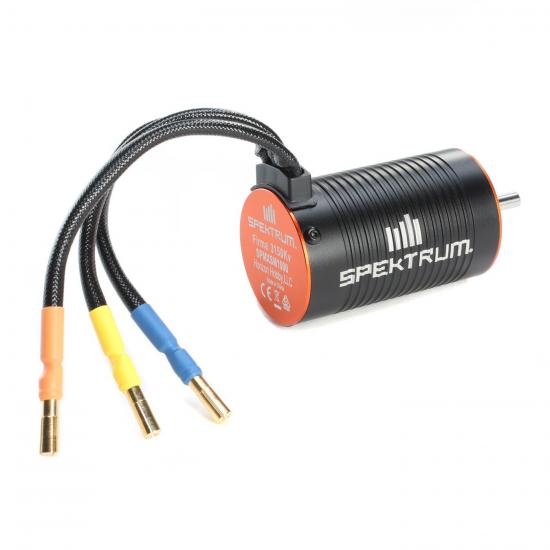

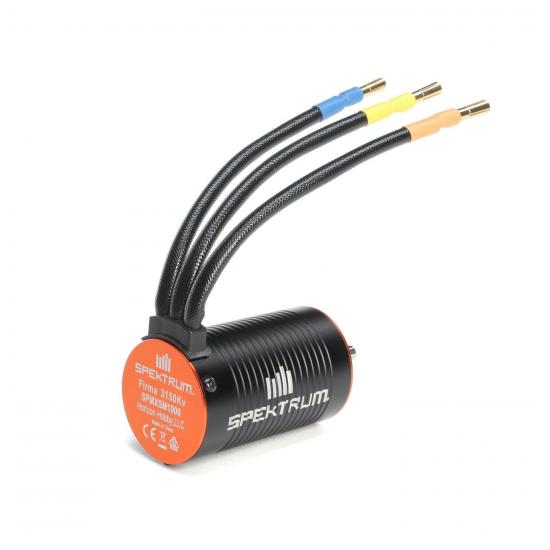

Firma 3150Kv Brushless Motor

The Spektrum Firma 3150Kv Brushless Motor (SPMXSM1000) is a 3660-size, sensorless unit designed as a strong choice for 1/10 scale 4WD models. It offers smooth, efficient power delivery with a low-cog 4‑pole, 8‑magnet rotor and precision bearings, and arrives preinstalled with 4mm gold-plated bullet connectors for straightforward installation. It also serves as a practical upgrade path from many 540- and 550‑size brushed motors that share the same diameter and mounting pattern, provided the vehicle accepts pinions with a 5mm bore.

Features

• Perfect upgrade for many 540/550 brushed setups of the same diameter/mounting pattern (vehicle must accept 5mm-bore pinions)
• Low-cog 4‑pole, 8‑magnet rotor with high-quality sintered construction
• CNC machined aluminium housing for strength and heat dissipation
• Insulated high-purity copper windings for efficiency
• Hardened alloy steel 5mm output shaft
• High-precision ball bearings for smooth rotation
• Preinstalled 4mm gold-plated bullet connectors
• Well matched with the Spektrum Firma 130 Smart ESC

Specifications

• Motor Type: Brushless, sensorless
• Size: 3660
• Kv: 3150Kv
• Number of Poles: 4
• Input Voltage: 6–13.2V (2–3S LiPo; 4–9 cell NiMH)
• Maximum Continuous Current: 100A
• Output Power: 1300W
• Efficiency: 90%
• Shaft Diameter: 5mm (3/16")
• Overall Diameter: 36mm (1.4")
• Overall Length: 60mm (2.4")
• Weight: 247g (8.7oz)
• Connectors: 4mm bullet
• Wire Gauge: 12 AWG
• Bearings: Precision ball bearings

What's Included

• Spektrum Firma 3660‑3150Kv Sensorless 1/10 Brushless Motor with 4mm Gold Plated Bullet Connectors

Needed to Complete

• Electronic Speed Control such as the Spektrum Firma 130 Smart ESC

Suggested Compatibility

• ASC90023
• LOS03019T1
• LOS03019T2
• LOS03027T1
• LOS03027T2
