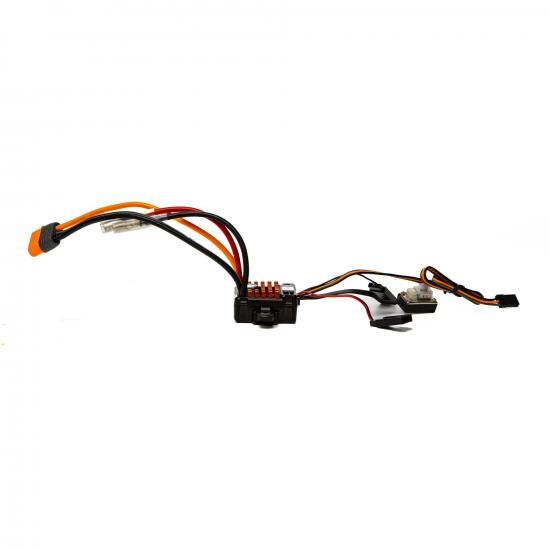

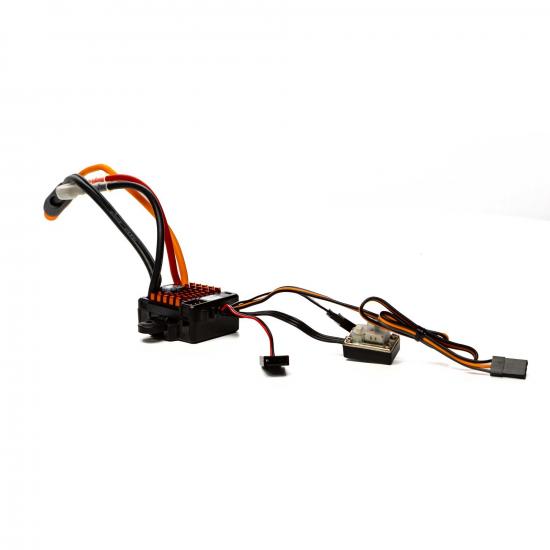

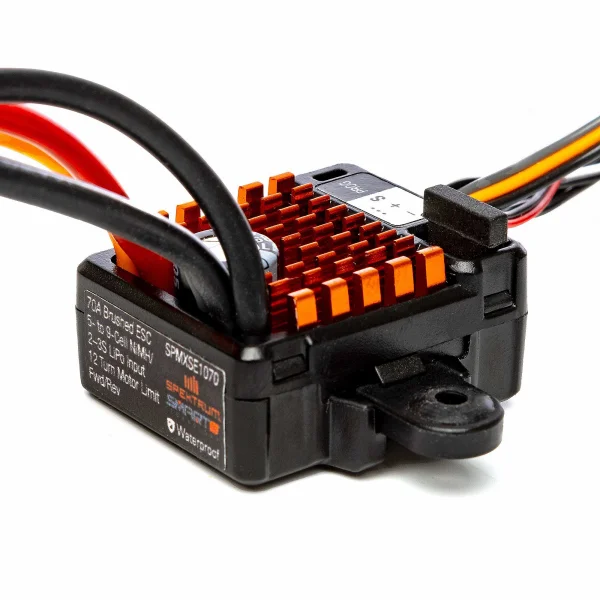

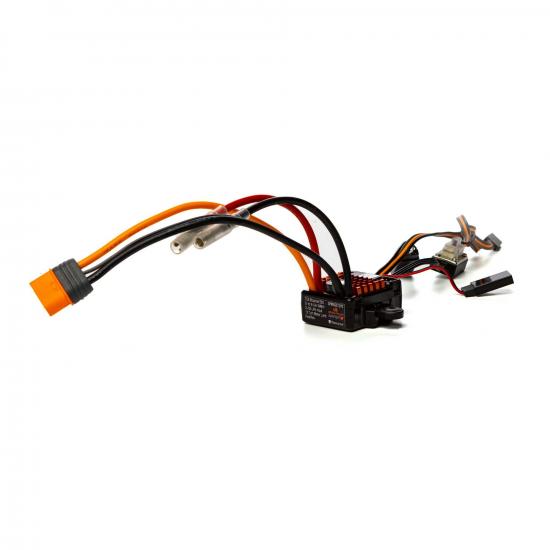

Firma 70A Brushed Smart Waterproof ESC - 2S-3S: IC3

• Smart all-in-one telemetry
• Smart Lite functionality
  • Provides Spektrum Smart ESC data such as input voltage, esc temperature, esc amperage, and Text Gen Telemetry data over one wire. No additional sensors required. Smart Lite ESCs do not provide Smart Battery data.

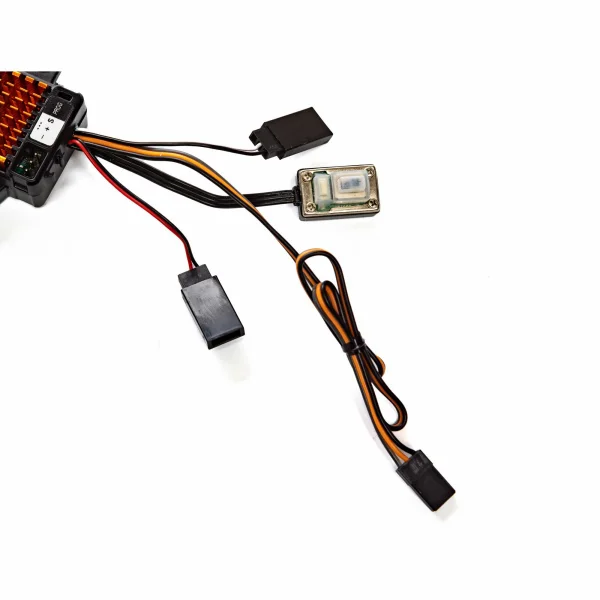

• Integrated LED light power outputs for simple installation without the need of additional receiver ports
• 70 Amp continuous power – ideal for 1/10 scale crawlers and scalers
• 2S-3S LiPo Compatible
• Multiple options for easy programming:
• Smart ESC Programming Box
• SmartLink USB Updating and Programmer application
• Programming from Transmitter via Text Gen Telemetry

• Waterproof ESC*
• Multi-point protection:
  • Over-current protection
  • Automatic LiPo low-voltage cutoff
  • Thermal protection
  • Failsafe protection
• Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required

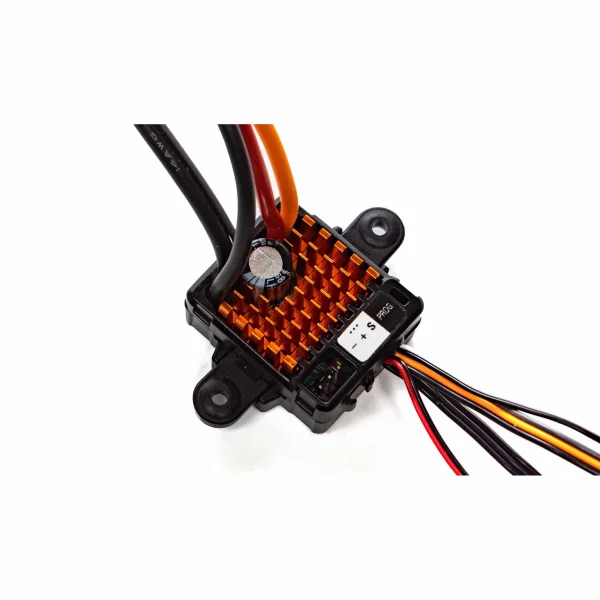

• Aluminum heat sink for high efficiency
• Adjustable high-power BEC (6V or 7.4V, 4amp)
• Firmware updatable through the Smart ESC Programming Box

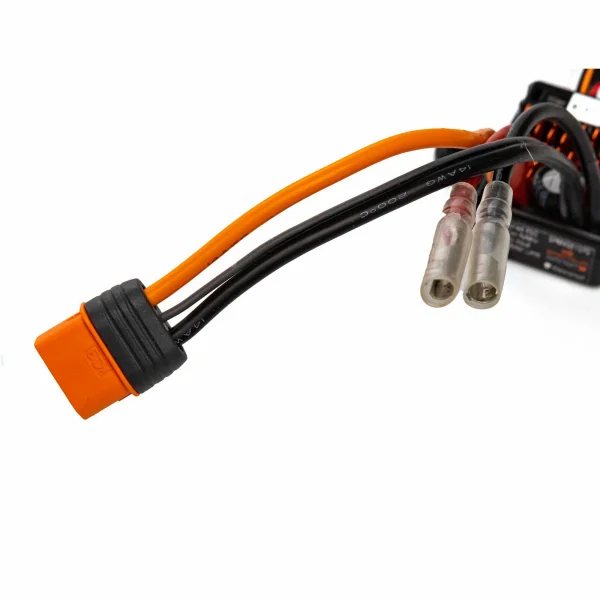

• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

The Spektrum Firma 70 amp Brushed Smart ESC is waterproof and ready to use in most 1/10th scale RC models. Featuring programming options that make it easy to tune for your on-road and off-road racers, scalers, crawlers, and bashers.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

The Spektrum Firma 60 amp Brushed Smart ESC features a huge range of drag brake adjustability, allowing for drivers to expertly tune their models depending on their driven train and vehicle weight. Featuring fine levels of adjustability for Drag Brake Percentage and Drag Brake Rate that is perfect for tuning your crawlers and scalers for expert level rock crawling performance.

The all-weather, waterproof design of Spektrum™ Firma™ Smart ESCs allows them to perform in nearly any terrain under almost any conditions. Firma ESCs keep you going through dust, gravel, snow, and water.

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real time, including voltage, temperature, balance, capacity, and speed.**

Multiple programming options are available. Using the Smart Firma™ ESC Programming Box, you can easily change settings on the trail to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available. And for those with a Text Gen capable, programming and adjustment of ESC settings can be performed, right from your Spektrum transmitter, no additional modules or wires needed!

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides you with the benefit of battery telemetry that's automatically transmitted to your compatible Spektrum radio in real time. On your transmitter screen you'll be presented with helpful information such as number of cycles, battery capacity used and remaining, individual cell voltage and more!

*Please see manual for Waterproof Usage Guidelines

**See compatibility chart for more information.

Firma 70A Brushed Smart Waterproof ESC - 2S-3S: IC3 Specfications:

• Connector Type: 4mm Bullet, IC3
• ESC Type: Brushed
• Product Length: 1.41" (36 mm)
• Forward: Yes
• Reverse: Yes
• Application: Surface
• Amperage: 60A - 79A
• Auto Cutoff: Yes
• BEC Continous Current: 4
• Max Input Voltage: 11.1V
• Programmable: Yes
• Programming Options: Programming Box, Smartlink App, On Screen Text Gen
• Brakes: Integrated with ESC
• Low-Voltage Cutoff Programmable: Yes
• Product Weight: 1.76 oz (50 g)
• Turns: Below 8.4V; Down to 12T / Below 12.6V; Down to 35T
• Water-Resistant: Yes
• Maximum Burst Current: 200A
• Maximum Continuous Current: 70A
• Motor Type: Brushed
• Battery Input Lead: IC3
• Product Width: 1.18" (30 mm)
• Technology: Smart
• Adjustable Timing: No
• BEC: Yes
• BEC Voltage: 6V / 7.4V User Selectable
• Input Voltage: 2–3 Cell Li-Po / Li-Fe; 5–9 Cell Ni-MH / Ni-Cd
• Motor Limit: 540 / 550 Size Brushed Motors
• Motor Output Lead: 4mm
• Product Application: Crawling, Surface
• Product Height: 0.71" (18 mm)

• (1) Spektrum Firma 70A Brushed Smart ESC
• (2) Light Strings (red and white)
• (1) Product Manual

• Spektrum™ Surface Receiver
• 540 – 550 size Brushed motor
• 2S or 3S Lipo Battery with EC3 or IC3 Connector
• Spektrum Transmitter

• Brand: Spektrum
• Part No: SPMXSE1070
• Barcode: 0605482161999
• Fitment: Option Part
• Fitment: Standard Part
