Spektrum Firma 5200Kv 2-in-1 Motor/ESC Combo - SPMXSEM0500
Brand: Spektrum
Part No: SPMXSEM0500
Shadow Stock: Usually ships next day
Finance options available at checkout.
Fits These Models (1)
Show all 1 models
Frequently Bought With
Other items customers often buy with the Firma Brushless Motor / ESC 2-in-1 Combo - 5200Kv
Description

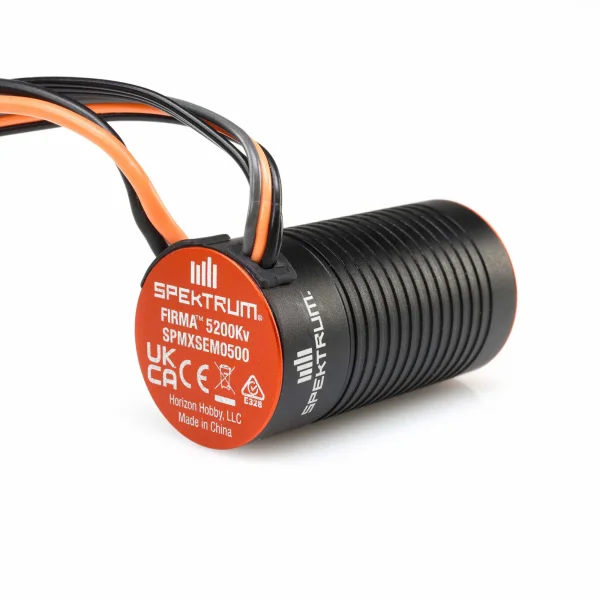

The Spektrum Firma Brushless Motor / ESC 2-in-1 Combo (SPMXSEM0500) integrates a 30-amp sensored ESC with a 5200Kv brushless motor in a compact, waterproof package. A high-precision magnetic encoder and rotor position sensor deliver precise, one-to-one throttle feel and smooth control at any speed and angle.
Supporting 2S–3S LiPo power, this unit features an adjustable 6V/7.4V 2A switching BEC and durable, high heat-resistant IC2 connectors that are backwards compatible with EC2. Its ready-to-install design requires no soldering, while aluminium construction aids heat dissipation for consistent performance.
Suggested compatibility: 1/18 Losi Mini LMT 4X4 Monster Truck RTR.
Features
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Easy programming
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum engineers, in partnership with the industry's leading ESC manufacturer
- Includes high performance and durability Spektrum Firma 5200Kv sensored brushless motor
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Aluminium construction helps with heat dissipation
- Adjustable high-power BEC
- High heat-resistant IC2 connectors, backwards compatible with EC2 connectors
Key Specifications
- Kv: 5200Kv
- Maximum continuous current: 30A
- Battery support: 2–3S LiPo, 6–9 cell NiMH
- BEC: Switching, 6V/7.4V adjustable, 2A continuous
- Number of poles: 4
- Overload protection and auto cutoff: Yes
- Connector type: IC2
- Dimensions: 24 mm outer diameter x 46 mm length
- Shaft: 2 mm diameter x 13 mm length
- Weight: 2.7 oz
What’s Included
- (1) Firma Brushless Motor / ESC 2-in-1 Combo, 5200Kv
- (1) Product Manual
Needed to Complete
- (1) Pinion Gear
Secured by Stripe
Firma Brushless Motor / ESC 2-in-1 Combo - 5200Kv Manuals & Guides
Manuals & Guides
Specifications
The Spektrum™ Firma™ 30-amp Sensored Brushless ESC and motor 2-in-1 combo is waterproof and designed specifically for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR. It features a high-precision magnetic encoder and rotor position sensor that provides an excellent one to one control feel when driving at any speed and at any angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor's RPM with unmatched precision.
This ESC and motor 2-in-1 Combo is an excellent choice to complete your 1/18 Losi Mini LMT 4X4 Monster Truck running 2S or 3S LiPo power. Whether you are bashing or competing with your Mini LMT, this combo is the perfect system.
Spektrum Firma 5200Kv Motor and ESC Combo Features- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Easy programming
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Includes high performance and durability Spektrum Firma 5200kV Sensored Brushless motor
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Aluminum construction helps with heat dissipation
- Adjustable high-power BEC
- High heat-resistant IC2™ connectors, backwards compatible with EC2™ connectors
Firma Brushless Motor / ESC 2-in-1 Combo - 5200Kv Specfications:
- Overload Protection: Yes
- Product Weight: 2.7oz.
- Shaft Diameter: 0.07" (2 mm)
- BEC: Yes
- LiPo Compatibility: 2S, 3S
- Input Voltage: 2S LiPo
- RPM/Volt (Kv): 5200Kv
- Shaft Length: 0.53" (13 mm)
- Maximum Continuous Current: 30A
- Motor Type: Brushless
- BEC Type: Switching
- Forward: Yes
- Number of Cells: 2-3S LiPo, 6-9 Cells NiMH
- Outer Diameter: 0.94" (24 mm)
- Application: Losi Mini LMT
- Auto Cutoff: Yes
- BEC Continous Current: 2A
- Number of Poles: 4
- Output: 6V/7.4V Adjustable, Continuous Current 2A
- Connector Type: IC2
- Product Length: 1.8" (46 mm)
- (1) Firma Brushless Motor / ESC 2-in-1 Combo, 5200Kv
- (1) Product Manual
- (1) Pinion Gear
Key Info:
- Brand: Spektrum
- Part No: SPMXSEM0500
- Barcode: 0605482180341
- Fitment: Option Part
