Spektrum Firma 2-in-1 6000Kv Motor/ESC Combo SPMXSEM0501
Brand: Spektrum
Part No: SPMXSEM0501
Shadow Stock: Usually ships next day
Finance options available at checkout.
Fits These Models (3)
Show all 3 models
Frequently Bought With
Other items customers often buy with the Firma Brushless Motor/ESC 2-in-1 Combo - 6000Kv
Description

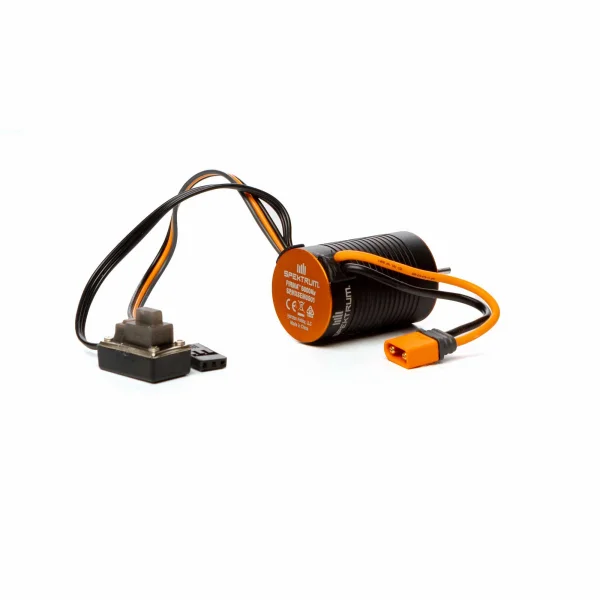

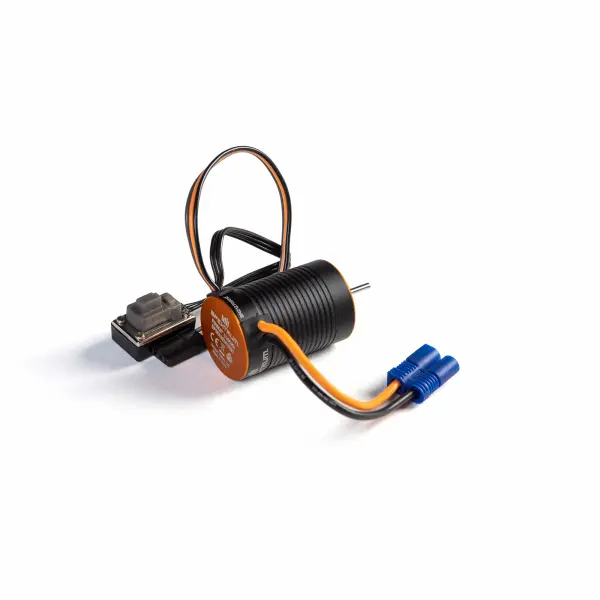

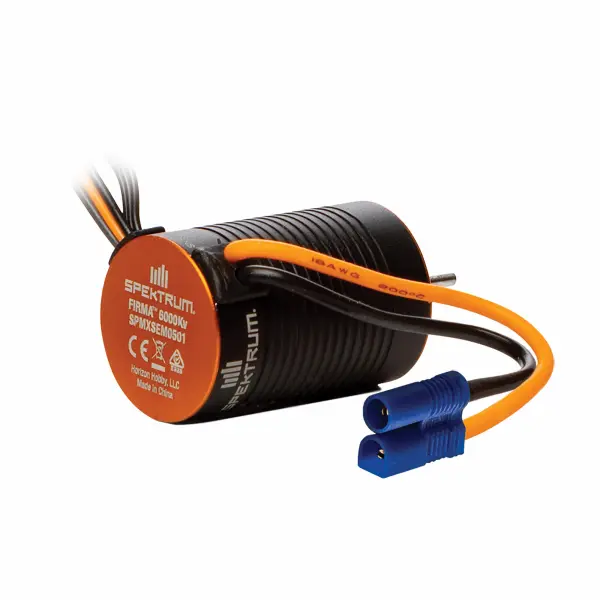

The Spektrum Firma Brushless Motor/ESC 2-in-1 Combo - 6000Kv (SPMXSEM0501) is a compact brushless upgrade for 280-size mini models, combining a high-torque 6000Kv sensorless inrunner with an integrated 20A ESC. Supporting 2S LiPo and EC2 connectors, it offers simple one-button setup and low-maintenance performance in a space-saving design.
Suggested compatibility includes popular minis such as Losi Mini-T, Mini-B and Mini JRX2/JRXT thanks to matching 280-size dimensions and industry-standard mounting hole patterns.
Features
- Drop-in brushless upgrade for Losi Mini-T, Mini-B and Mini JRX2/JRXT (suggested compatibility)
- Integrated 20A ESC in a 2-in-1 space-saving design
- EC2 connector compatible with common 1/18 scale battery types
- Perfect upgrade for brushed 280 motors with the same diameter
- Industry-standard mounting hole patterns
- High torque, high RPM 6000Kv brushless sensorless motor
- Counter-clockwise operation only
- Easy programming via one-button interface
- High-quality construction with ball bearings
- Hardened steel 2mm motor shaft
- Low-maintenance design
- Easy installation
Specifications
- Input Voltage: 2S LiPo
- Motor Type: Brushless, sensorless inrunner
- RPM/Volt (Kv): 6000
- ESC: Integrated (included)
- Maximum Continuous Current: 20A
- Maximum Burst Current: 40A
- BEC: Yes, switching; 1A continuous
- Auto Cutoff: Yes
- Overload Protection: Yes
- Connector Type: EC2
- Forward/Reverse: Yes/Yes
- Shaft Diameter: 2 mm (0.07")
- Outer Diameter: 24 mm (0.94")
- Product Length: 36 mm (1.41")
In The Box
- Firma 2-in-1 Brushless ESC + 6000Kv Motor
- Product manual
Secured by Stripe
Firma Brushless Motor/ESC 2-in-1 Combo - 6000Kv Manuals & Guides
Manuals & Guides
Specifications
- Drop-in brushless upgrade for Losi Mini-T, Mini-B and Mini JRX2/JRXT
- Integrated 20 amp ESC
- 2 in 1 design reduces space requirements
- EC2 connector that is compatible with popular battery types used in 1/18th scale models
- Perfect upgrade for brushed 280 motors with the same diameter
- Industry standard mounting hole patterns
- High torque and high RPM 6000kv Brushless Sensorless motor
- Counter-clockwise operation only
- Easy programming via one-button interface
- High-quality construction with ball bearings
- Hardened steel 2mm motor shaft
- Low maintenance design
- Easy installation
The Spektrum Firma 2 in 1 Brushless ESC and 6000kv motor is a powerful brushless upgrade for your 280 size and mini size models. These systems contain a high-torque and high speed 6000kv brushless sensorless motor that is designed for bashing and sport racing applications. The motor features the same basic dimensions and mounting patterns as industry-standard, 1/16 to 1/18, 280-size brushed motors, making it easy to install and setup. These motors also offer high performance over a longer lifetime with little to no maintenance.
Firma Brushless Motor/ESC 2-in-1 Combo - 6000Kv Specfications:
- BEC: Yes
- Input Voltage: 2S LiPo
- RPM/Volt (Kv): 6000
- Connector Type: EC2
- Product Length: 1.41" (36 mm)
- Maximum Burst Current: 40A
- Maximum Continuous Current: 20A
- Motor Type: Brushless
- Speed Control: Included
- Auto Cutoff: Yes
- BEC Continous Current: 1A
- Overload Protection: Yes
- Shaft Diameter: 0.07" (2 mm)
- Forward: Yes
- Reverse: Yes
- BEC Type: Switching
- Motor Design: Inrunner
- Outer Diameter: 0.94" (24 mm)
- (1) Firma 2 in 1 Brushless ESC + 6000kv motor
- (1) Product Manual
Key Info:
- Brand: Spektrum
- Part No: SPMXSEM0501
- Barcode: 605482164785
- Fitment: Option Part
Additional Categories:
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
Used this Motor/ESC Combo with FTX9395 RX to upgrade my Losi Mini B but keep the original TX. I can't imagine wanting any more performance, it's properly quick!
Check the dual rates aren't set too low on the TX to get full performance.
Questions & Answers
No, this would be too small and the KV rating is far to high for the E revo. You could possibly look at this one HW38020346
The connector is IC2 or EC2 and this is the battery recommended DYNB825H2
Yes as far as I'm aware this should have reverse capability
