Hobbywing MAX10 G2 80A ESC Combo With 3652SD 3300Kv G3 Motor
Brand: Hobbywing
Part No: HW38020346
In Stock: Usually ships same day

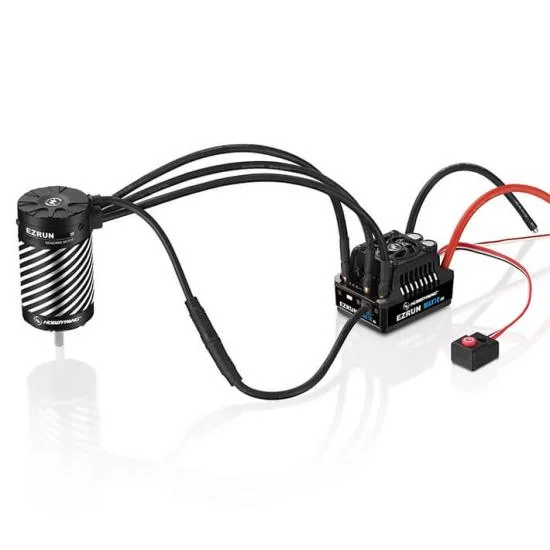

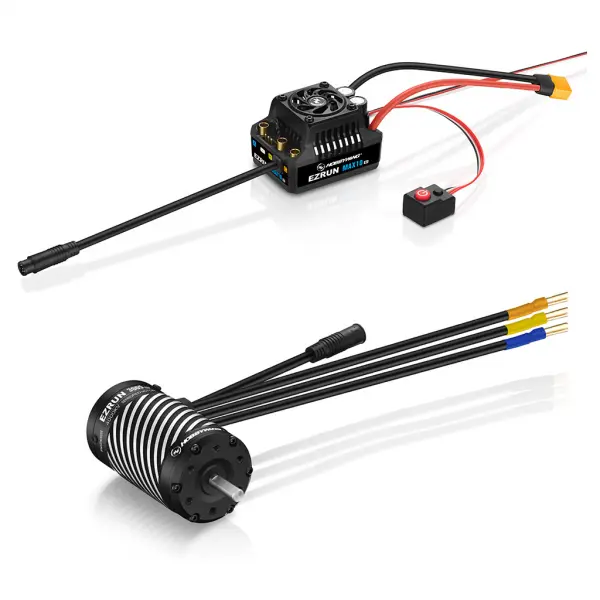

The Hobbywing MAX10 G2 80A ESC Combo With 3652SD 3300Kv G3 Motor (HW38020346) pairs the EzRun Max10 G2 speed controller with the EzRun 3652 SD G3 3300Kv brushless motor for smooth, sensored performance and robust all‑weather running. Designed to enhance control feel and efficiency, this combo brings modern drive tech to your RC power system with IP67 waterproofing and data insight when used with an optional OTA Bluetooth module.
With upgraded sensored operation, smart thermal management and advanced timing options, the system is engineered to run cooler and more efficiently than previous generations. The fan’s smart start‑stop function reduces noise and power draw, while increased capacitor capacity and protection help ensure reliable power delivery.
Features
- Improved waterproof sensored cable interface and upgraded sensored mode for a refined control feel; perfectly matches EzRun 3652/3665 SD G3 motors.
- Turbo timing adjustment up to 32 degrees; with EzRun 3652/3665 G3 motors, maximum speed can increase by approximately 25%.
- Smart start‑stop technology for the frameless fan: only activates as temperature rises, helping reduce noise and save power.
- Total capacitor capacity increased by 74% with overheating protection to improve power delivery and help prevent overload‑related damage.
- Smart freewheeling technology for higher drive efficiency and lower operating temperatures, by around 25°C compared with the previous generation.
- Connect to an OTA Bluetooth module (optional) to view real‑time data such as throttle, voltage, current, temperature and speed via the mobile app, with data logging for history.
- IP67 waterproof and dustproof system for confident running across mud, sand, ice, snow and water.
Motor Specifications
- Series: EzRun 3652 SD G3
- KV: 3300
- Part Number: 30402603
- LiPo: 2–3S
- Resistance (R): 0.00696 Ω
- No‑load Current: 3.9 A
- Timing: 0°
- Motor Size: Diameter 37 mm, Length 53 mm
- Shaft Size: Diameter 3.17 mm, Length 15 mm
- Poles: 4
- Weight: 227.1 g
Secured by Stripe
- The EzRun Max10 G2 features an improved waterproof sensored cable interface and an upgraded sensored mode to achieve a great sense of control feel and perfectly matches the EzRun 3652/3665 SD G3 motors.
- Supports Turbo timing adjustment of up to 32 degrees, and in combination with the EzRun 3652/3665 G3, the maximum speed is 25% more with greater effect.
- The smart start-stop technology is introduced to the Max10 G2 ESC. The frameless fan will not be enabled to reduced noise and saving power. The fan will only work when the temperature rises to a certain level.
- Compared with the previous generation of the MAX10 ESC, the total capacitance of the capacitor is increased by 74% and is overheating protected. The functions improve the power delivery from the battery to the ESC to avoid it from overloading and causing capacitors to explode.
- Smart freewheeling technology enables the MAX10 G2 to have higher drive efficiency than the previous generation, resulting in lower operating temperatures and a minimum temperature of approximately 25°C lower than the previous generation.
- After connecting the ESC with the OTA Bluetooth module, you can view the data (throttle amount, voltage, current, temperature, speed and etc) in real time through the mobile app to know the running status; The history of the running status can also be viewed by data logging.
- The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including mud, sand, ice, snow and water without damaging the power unit.
Ezrun Series:3652 SD G3
KV: 3300
P/n: 30402603
LiPo: 2-3S
R. (Ω): 0.00696Ω
No-load Current: 3.9A
Timing (deg.): 0
Motor Diameter & Length: Φ=37 / L=53
Shaft Diameter & Length: Φ=3.17 / L=15
Pole: 4
Weight (g): 227.1g
Key Info:
- Brand: Hobbywing
- Part No: HW38020346
- Barcode: 6938994407526
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
Yes that would fit fine its
53mm×39.5mm×37.2mm
No that will not fit (the esc is huge) i would use this SCH-SK-300060-02
Yes that would be perfect.
This will come with an XT60 connector.
That combo would work perfectly well in the Banzai - the ESC is quite big so will need to be mounted on the top deck. The 3300kv motor will happily run 2s or 3s.
That is 3.2mm
Yes this one HW30502001
This would work but the ESC will be a bit on the big side, you would be better looking at something like this HW38020319
Yes this will work for you, the ESC is a little on the bigger side, size wise but should still fit in for you.
This would work well in that car but would not be an upgrade as the original motor is a 4000KV motor
Yes that would be perfect.
Yes this will work in that car, if you wanted to go 4WD you can use this kit ARA210003
We would recommend something like this
Yes that would be perfect.
Yes that would be the one we would recommend for that.
That will not have enough power you need this HW38010200 and this spur TRX3956 and this pinion TRX5640 you will remove the gearbox cover and not use that so you can see the gears. Otherwise the easiest system would be this TRX3350R
That is not a crawler system so you will damge it using it in the trx-4 you want the hobbywing axe system like this HW38020313 or a cheaper alternative like this HW30120402
