Traxxas Transmission, complete (assembled) (fits Bandit, Rustler, Stampede, Slash 2WD)
Brand: Traxxas
Part No: TRX9495A
In Stock: Usually ships same day
The Traxxas TRX9495A delivers the Pro Series Magnum 272R as a complete, factory-assembled transmission upgrade. Developed for the hard-hitting Drag Slash, this new-generation 272R brings a low-profile case, a rigid 3.2 mm T-6 aluminium motor plate, and a hardened steel top shaft to maximise durability and driveline precision.
The reinforced, precision-moulded case seals out dirt and debris while creating a rigid structure to support the motor, suspension arms, and an optional wheelie bar. Inside, all-metal input, idler, and differential gears run on large-diameter bearings. The keyed, press-fit input gear improves concentricity and strength over pin-mounted designs.
A sealed bevel-gear differential with X-ring and gasket sealing arrives pre-greased for balanced, all-round performance. Tuning is straightforward by adding silicone oil to adjust locking action for surface traction. Maintenance is equally simple thanks to the removable differential: disconnect the driveshafts, open the hatch, and release the diff in minutes.
Suggested compatibility includes Traxxas 2WD Bandit, Rustler, Stampede, and Slash models (standard and VXL). The 272R architecture is designed to support popular accessories such as wheelie bars and low-CG chassis modifications, providing a robust foundation for street, strip, or track-focused builds.
Key Features
- Redesigned, reinforced transmission case for added strength and rigidity
- 3.2 mm aluminium motor plate for structural rigidity, improved heat dissipation, and fixed gear mesh compatibility
- Hardened steel top shaft with press-fit top gear for superior strength and durability
- Sealed differential with hardened steel bevel gears; tunable with silicone differential oil
- Easy-access differential for quick removal, tuning, and maintenance
- Low-CG design for improved handling
- Ultra-rigid wheelie bar mount
Tech Specs
- Shipping Weight: 0.32 kg (0.71 lb)
- Scale: 1:10
- Age Recommendation: 14+
- Colour: Blue
- Material: Aluminium
Secured by Stripe
A New Generation of Performance
Developed specifically for the hard-hitting Drag Slash, the Pro Series Magnum 272R upgrades key features of the standard Magnum transmission for maximum durability and next-level performance. A new low-profile design, 3.2 mm motor plate and hardened steel top shaft are just the beginning. The Pro Series Magnum 272R represents a complete performance redesign and now it s available for your standard or VXL 2WD Bandit, Rustler, Stampede, or Slash.
The Magnum 272R transmission may have been designed for drag racing, but its technology and durability make it the perfect upgrade for your 2WD Traxxas vehicle. There are no downsides to the upgrade, just improved performance and incredible toughness. The 272R installs into your 2WD Bandit, Rustler, Stampede, or Slash with no modifications. It even supports all your current accessories like wheelie bars and low-CG chassis mods. Take your performance to the next level and upgrade today!

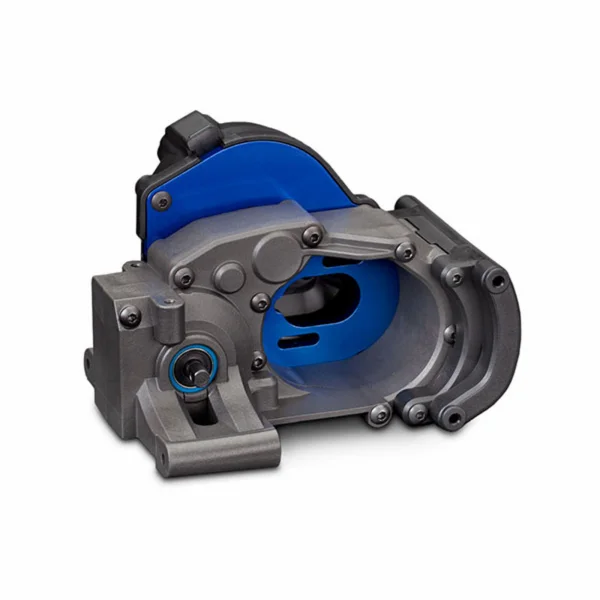

Precision Transmission Case
he Pro Series Magnum 272R transmission is engineered for strength with its rugged, reinforced case. The case halves engage precisely to seal out dirt and debris, and create a rigid structure to support the motor, suspension arms, and optional wheelie bar. The thick T-6 aluminium motor plate resists flex and acts as a heatsink.

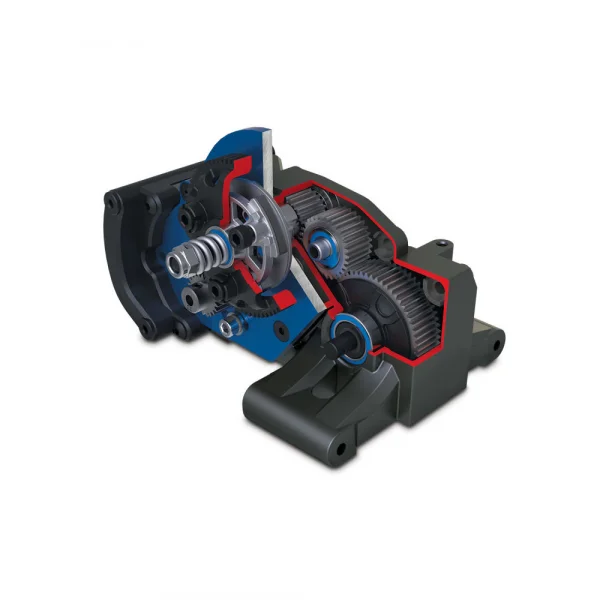

All-Metal Internal Gears
This race-ready transmission is built for massive torque with high-strength steel input, idler, and differential gears and large-diameter bearings. The input gear is keyed and press fit onto the top shaft for greater precision and strength than a pin-mounted gear.

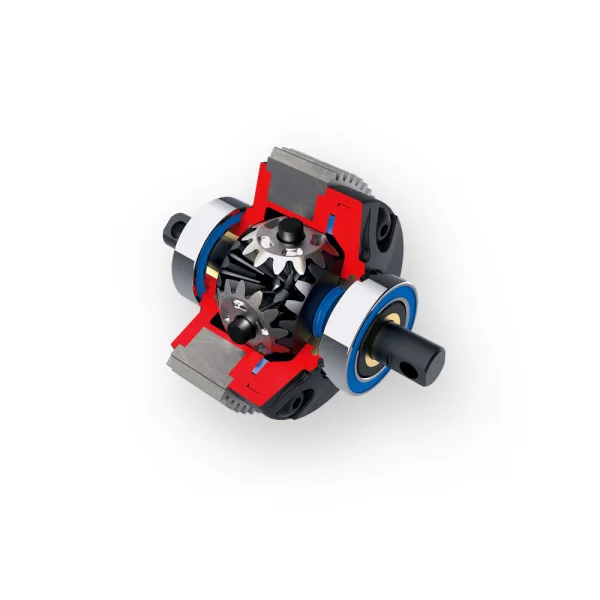

Sealed Beveled-Gear Differential
The heavy-duty steel-gear differential is X-ring and gasket-sealed and filled with grease for all-around performance. It's easy to tune the differential's locking action by adding different viscosity silicone oil to suit surface traction.

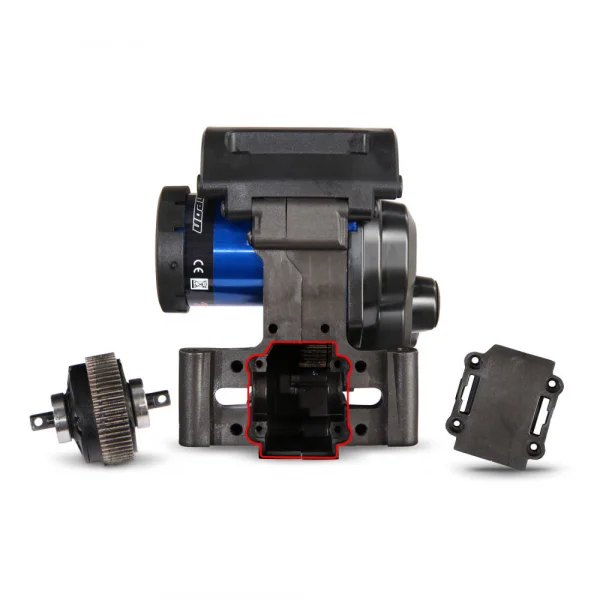

Removable Differential
The Magnum 272R's easily removable differential makes maintenance and tuning easier than ever. Disconnect the driveshafts and open the hatch to release the differential in just minutes.
Traxxas Transmission, complete (assembled) (fits Bandit, Rustler, Stampede, Slash 2WD) Key Features:
- Redesigned transmission case which is reinforced for added strength and rigidity
- 3.2 mm Aluminium Motor Plate for increased structural rigidity, improved heat dissipation, and compatibility with fixed gear mesh system.
- Hardened-steel top shaft and press-fit top gear for superior strength and durability
- Sealed differential with hardened-steel beveled gears and tunable with silicone differential oil
- Easy access differential for simple removal for tuning and maintenance
- Low-CG design for improved handling
- Ultra-rigid wheelie bar mount
Manuals & Parts Explosions:
Traxxas Transmission, complete (assembled) (fits Bandit, Rustler, Stampede, Slash 2WD) Tech Specs:
- Shipping Weight: 0.32kg / 0.71lbs
- Scale: 1:10
- Age Recommendation: 14+
- Colour: Blue
- Material: Aluminium
Key Info:
- Brand: Traxxas
- Part No: TRX9495A
- Barcode: 020334034045
