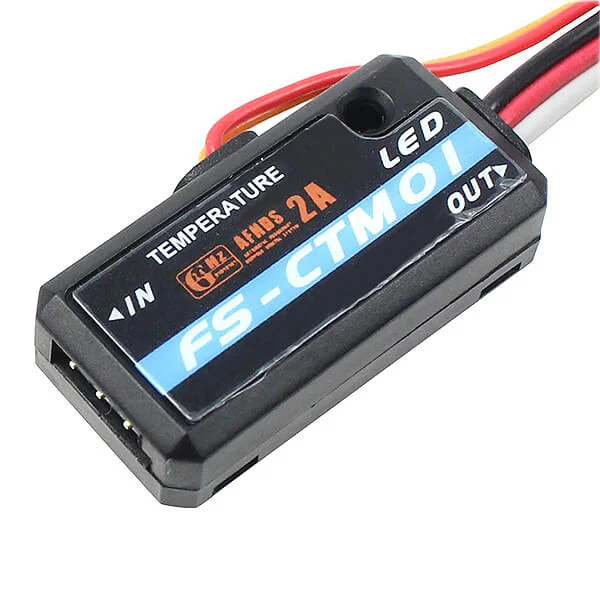

FlySky FS-CTM01 Temperature Module for i6X/iA6B

The FlySky FS-CTM01 Temperature Module is a compact sensor designed to monitor temperatures within RC models and connect via the FlySky i-BUS (sens) port. Operating from 4.0–8.4V, it offers a wide measurement range from −40°C to +250°C in a lightweight 5.9 g package. Suggested compatibility includes the FlySky i6X radio and iA6B receiver.

Its small footprint (31 × 15 × 8.5 mm) makes installation straightforward in a variety of setups. Rated for operation between 0°C and +60°C with a 20%–95% humidity range, it is well suited to typical hobby environments.

Specifications

• Temperature measurement range: −40°C to +250°C
• Operating voltage: 4.0–8.4V
• Data port: i-BUS (sens)
• Operating temperature: 0°C to +60°C
• Operating humidity: 20%–95%
• Dimensions: 31 × 15 × 8.5 mm
• Weight: 5.9 g
