FMS 64mm 11-Blade EDF with 2840-KV3900 Motor (FMSEDF004)
Brand: FMS
Part No: FMSEDF004
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Description

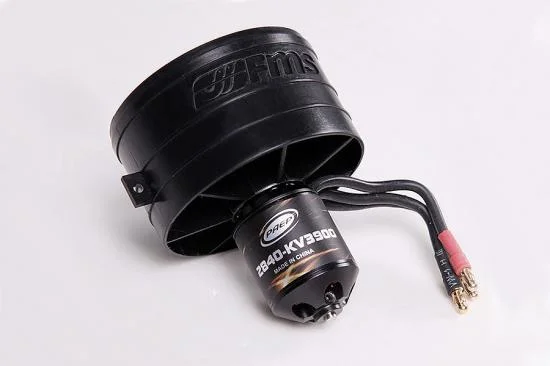

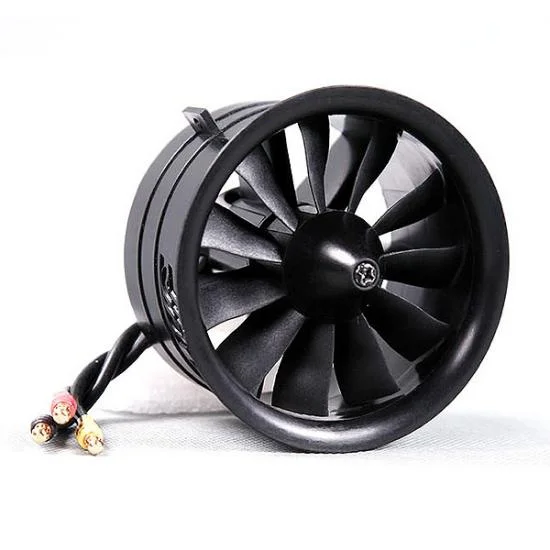

The FMS 64mm Ducted Fan System (FMSEDF004) pairs an 11-blade impeller with a 2840-KV3900 brushless outrunner to deliver efficient thrust and a refined, jet-like sound. Built around a high-strength composite duct with a CNC-machined aluminium spinner, the 135 g unit is dynamically balanced for smooth running and dependable performance on 3S power. Well suited to high-speed EDF jets and precision aerobatic platforms.
Engineered For Performance
- Aerodynamically optimised through airflow analysis, CFD simulation and wind tunnel testing, in collaboration with Beihang University.
- High-strength composite construction: light yet rigid, with injection-moulded consistency and durability.
- Dynamic balance from the 11-blade impeller, CNC metal spinner and tight duct tolerances for reduced vibration and authentic sound.
- Exclusive FMS cooling channel design helps extend motor life and sustain output during demanding flights.
Features
- EDF Size: 64mm, 11-blade
- Motor: 2840-KV3900 Brushless Outrunner
- Spinner: CNC-machined aluminium
- Weight: 135g
- Recommended ESC: 40A Brushless
- Recommended Battery: 3S 2000mAh 35C LiPo
- Peak Thrust: 900g on 3S
Secured by Stripe
Specifications
FMS 64mm 4S 11-Blade EDF System with 2840-KV3150 Motor
Precision. Power. Perfection.
This is not just a ducted fan, t's a high-efficiency thrust system engineered for elite RC performance. Combining advanced composite construction, cutting-edge aerodynamic analysis, and precision balacing, this FMS 64mm 11-Blade EDF unit is your go-to solution for speed, sound, and sky-punching power.
Why this EDF dominates:
- Aerodynamically Optimised
Designed in collaboration with Beihang University, one of China's top aerospace institutions. Every curve and blade is shaped from deep airflow field analysis, CFD simulation, and wind tunnel data - then tested, printed, and perfected before final moulding. - Superior Build Quality
Constructed using high-strength composite material, this unit offers the optimal blend of light weight (135g) and ultra-rigid toughness. Injection-moulded for consistency and durability. - Dynamic Balance, Dialled In
The 11-blade impeller, CNC metal spinner, and tight duct tolerance ensure razor-sharp balance, eliminating vibrations and delivering jet-like sound and thrust. - Cooling Innovation
Exclusive FMS cooling channel design extends motor life and sustains high-performance output during demanding flights.
| Battery Setup | Voltage | ESC | Motor KV | Thrust Output |
|---|---|---|---|---|
| 3S LiPo (full charge) | 12.5V | 40A | 2840-KV3150 | 900g |
| 4S LiPo (full charge) | 16.5V | 40A | 2840-KV3150 | 1150g |
Perfect For:
- High-speed EDF jets
- Precision acrobatic platforms
- Pilots who demand high thrust-to-weight performance
- Builders upgrading from standard plastic fans to a refined, quieter and more efficient unit
Ready to hear the whoosh and feel the pull?
Upgrade to the FMS 64mm EDF system, and power into the future of RC flight.
FMS 64mm Ducted Fan (11-Blade) With 2840-Kv3900 Motor (3S) (for 64mm Ducted fan (11-blades) with 2840-Kv3900 Motor (3S version)) Features:
- EDF Size: 64mm, 11-blade
- Motor: 2840-KV3900 Brushless Outrunner
- Spinner: CNC-machined aluminium
- Weight: 135g
- Recommended ESC: 40A Brushless
- Recommended Battery: 3S 2000mAh 35C LiPo
- Peak Thrust: 900g on 3S
Key Info:
- Brand: FMS
- Part No: FMSEDF004
- Barcode: 7840853306712
