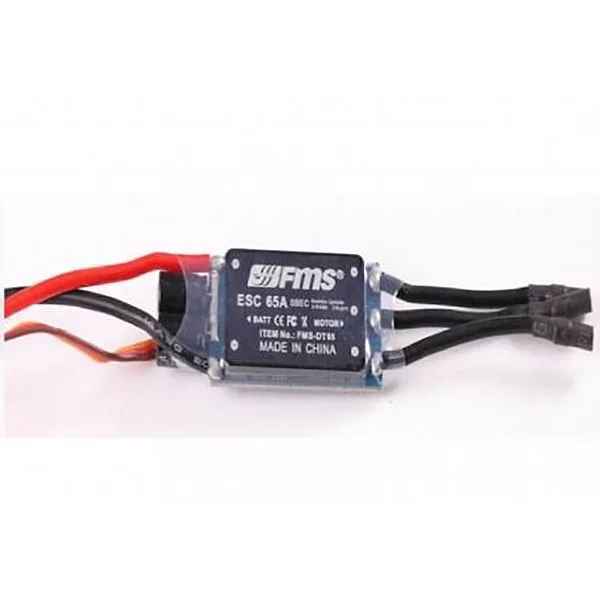

FMS 65A Brushless ESC W/5Asbec (1400mm)

The FMS 65A Brushless ESC with 5A SBEC (FS0526) offers reliable power delivery for brushless RC systems. It supports 2–6S LiPo or 5–18 cell NiMH batteries, providing a 65A continuous rating and 85A burst capability. A 5V/5A switching BEC supplies stable power to onboard electronics, all in a compact 57 × 31 × 12 mm, 50 g package.

Key Specifications

• Input: 2–6S LiPo / 5–18 cells NiMH
• Continuous current: 65A
• Burst current (10 s): 85A
• BEC mode: Switching
• BEC output: 5V / 5A
• Size: 57 × 31 × 12 mm
• Weight: 50 g

Designed by FMS for dependable control of brushless motors, this ESC balances current handling with a robust 5A SBEC in a practical, lightweight format.
