Force 46 ABC Aero Engine (7.45cc) – FORE-4601
Brand: Force
Part No: FORE-4601
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Frequently Bought With
Other items customers often buy with the Force 46 ABC Aero Engine (7.45cc)
Description

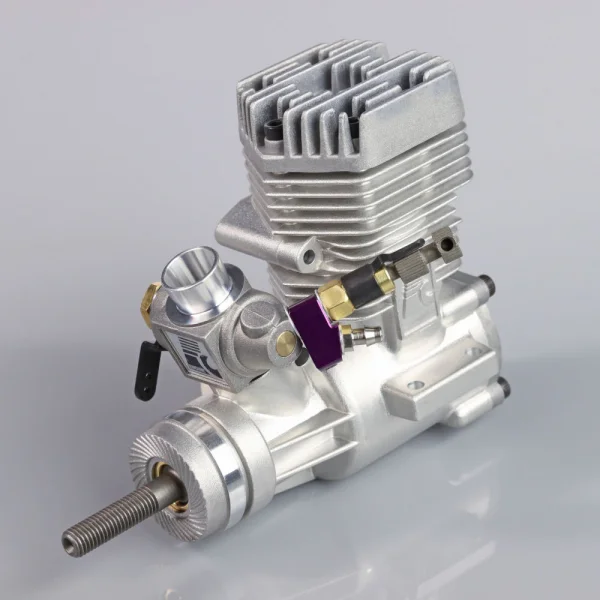

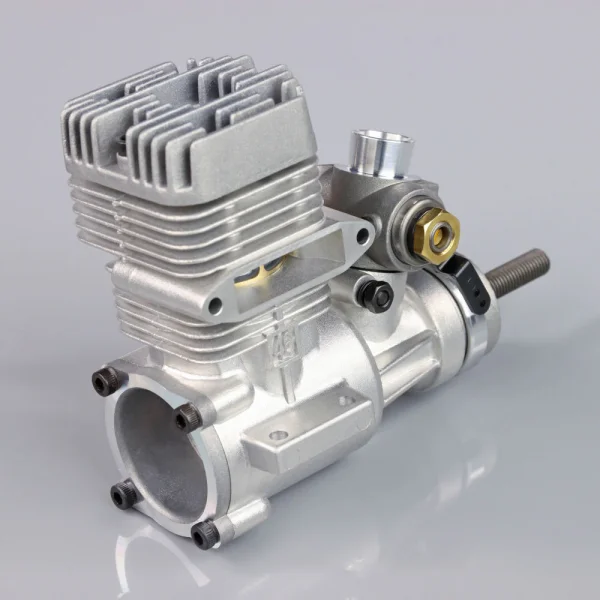

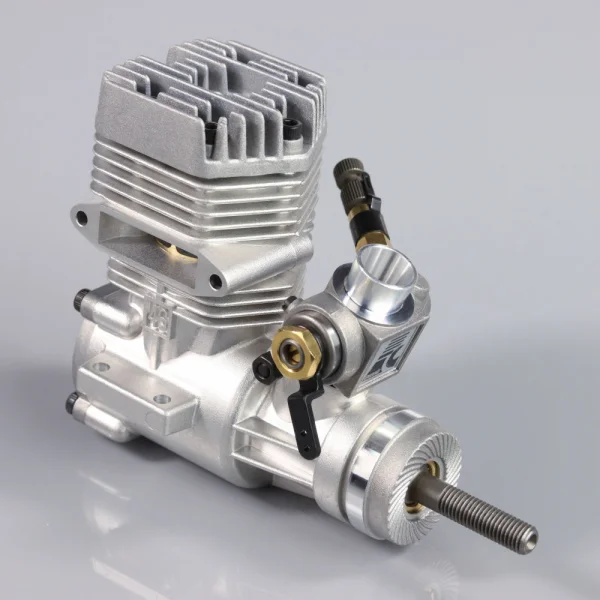

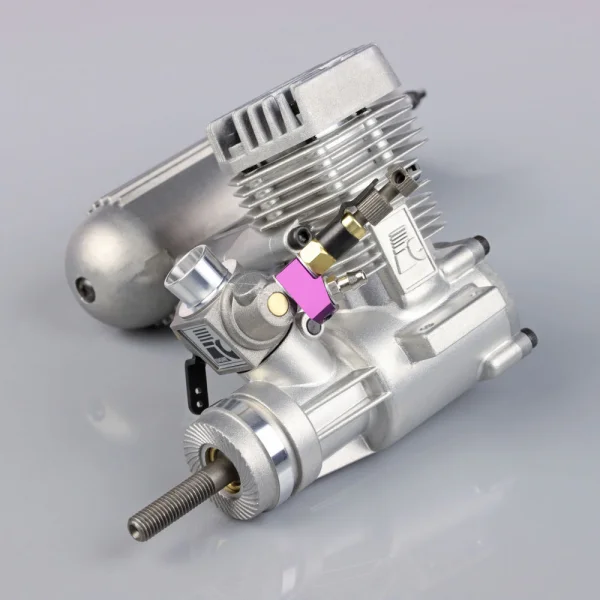

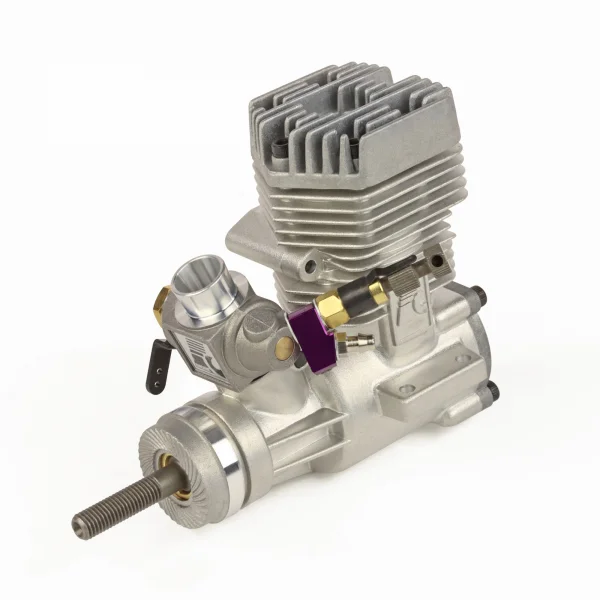

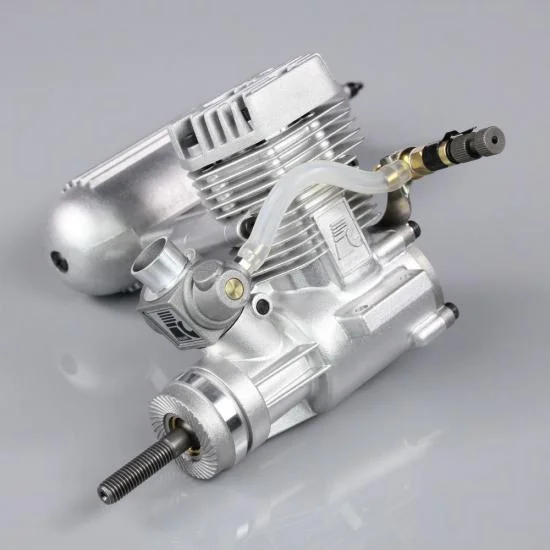

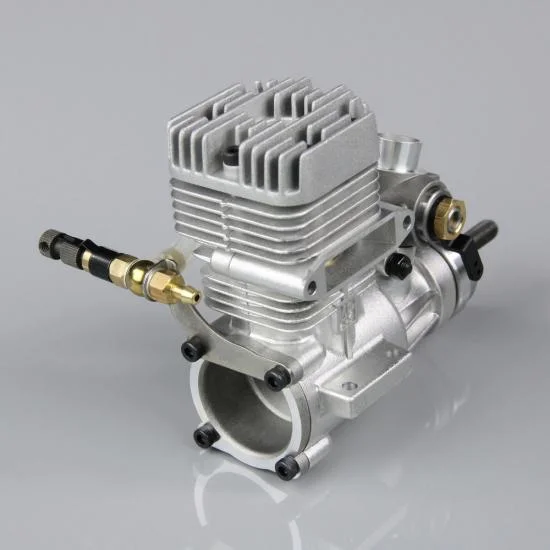

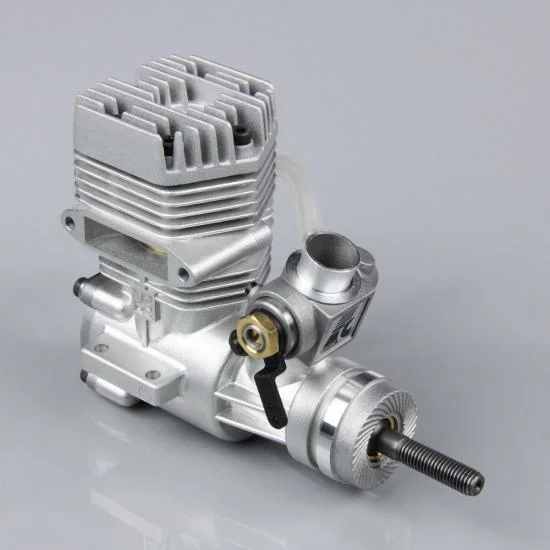

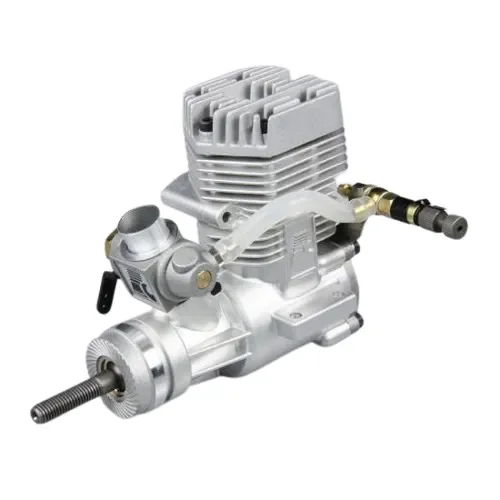

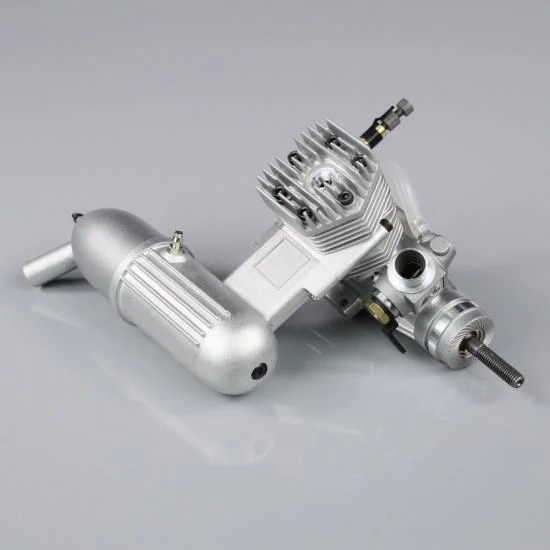

The Force 46 ABC Aero Engine (7.45cc) is a beautifully made single‑cylinder, front‑induction R/C glow engine designed for dependable sport and club flying. Its aluminium alloy piston runs in a hard chrome‑plated brass liner that’s schnuerle ported for efficiency and power, delivering easy starts, crisp response and a broad 2,000–17,000rpm operating range. Finished with a clean, bead‑blasted crankcase, it’s a robust and eye‑catching choice for the popular .46 class.

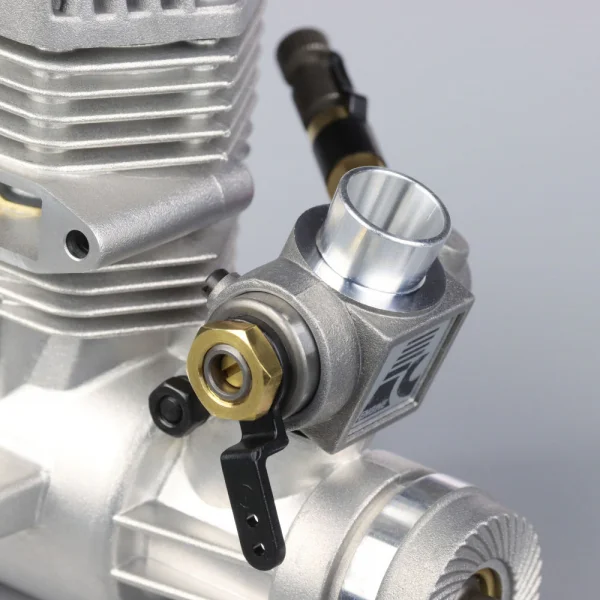

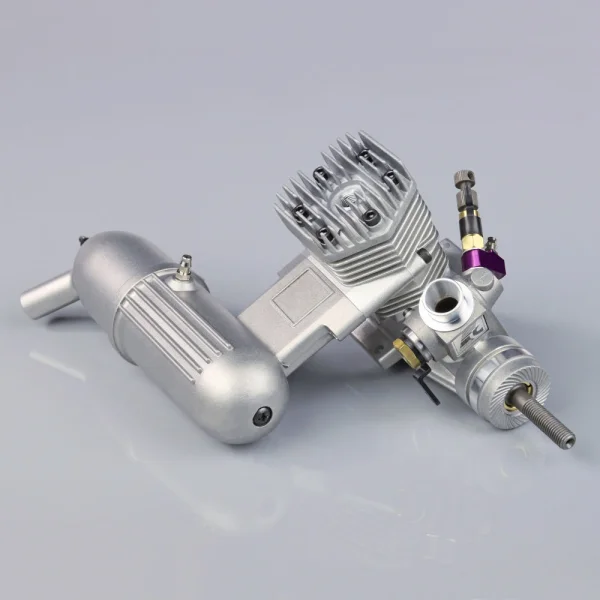

A one‑piece crankshaft supported by front (sealed) and rear (open) bearings ensures longevity, while a proven twin‑needle carburettor with a rear‑facing main needle simplifies tuning. Complete with a substantial high‑volume silencer and a cast, high‑grip knurled prop driver, the Force FORE-4601 is well suited to the widely used 10 x 6 to 12 x 5 propeller range and promises years of reliable service.
Key Features
- ABC piston and liner
- Powerful 7.45cc single‑cylinder two‑stroke
- 2,000 to 17,000rpm range
- Schnuerle ported cylinder and liner
- 10 x 6 to 12 x 5" propeller range
- Uses glow fuel with 5–15% nitromethane
- Twin bearings

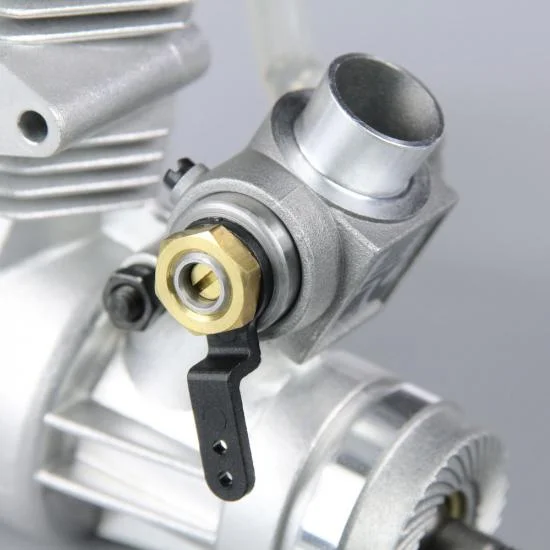

- Twin‑needle carb with rear‑facing main needle
Specifications
- Displacement: 7.45cc
- Bore: 22mm
- Stroke: 19.6mm
- Weight: 371.5g
- Fuel: Glow
- Nitro Content: 5–15%
- Colour: Silver
- Material: Aluminium
- Recommended Usage Environment: Outdoors

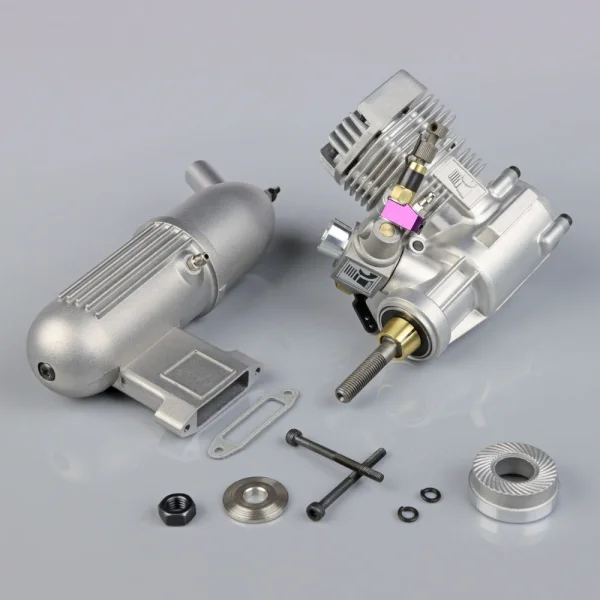

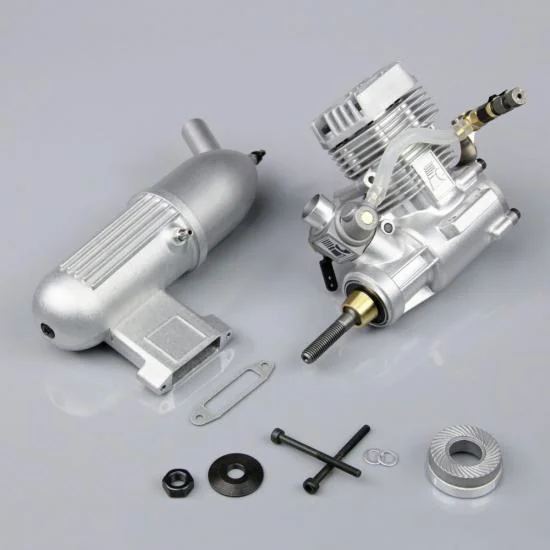

What’s In The Box
- Force 46 ABC two‑stroke aero engine
- Torpedo silencer with pressure nipple
- Silencer gasket
- Silencer mounting screws (x2)
- Propeller driver
- Prop nut and washer
- Instruction and operating sheet
Needed To Complete
- Medium cold glow plug
- 10 x 6 to 12 x 5" propeller
Secured by Stripe
Force 46 ABC Aero Engine (7.45cc) Manuals & Guides
Specifications
R/C flyers adore engines, they always will, and for many two-strokes are still the preferred choice, particularly in the quality mid-range club sector where, of course, the ubiquitous .46 - .52 two-stroke has so many uses. Well, as luck would have it, recent demand has encouraged Force Engines to step up and produce this beautifully-made single-cylinder, front induction, ABC, R/C glow engine.
Sporting a crisp and clean, bead blasted crankcase, robust one-piece crankshaft - supported on a front (sealed) and rear (open) bearing - the Force 46 offers reassuring longevity with its aluminium alloy piston and hard chrome-plated brass liner, the latter schnuerle ported for improved efficiency and power. Add a proven twin needle carburettor, substantial high-volume silencer, cast high-grip knurled prop driver and rpm range of 2,000 to 17,000 and you have a perfect, and rather eye-catching R/C sport aero engine for a variety of propeller sizes in the popular 10 x 6 to 12 x 5 bracket.
Easy to start, easy to tune and promising years of reliable service the Force 46 is more than a match for your Sunday hack or sport aerobat and it won t break the bank.
Specification:
| Displacement (cc): | 7.45 |
| Bore (mm): | 22 |
| Stroke (mm): | 19.6 |
| Weight (g): | 371.5 |
| Fuel: | Glow |
| Nitro content: | 5 - 15% |
Force 46 ABC Aero Engine (7.45cc) Key Features:
- ABC piston and liner.
- Powerful 7.45cc single cylinder two-stroke.
- 2,000 to 17,000rpm range.
- Schnuerle ported cylinder and liner.
- 10 x 6 to 12 x 5" propeller range.
- Uses glow fuel with between 5 and 15% nitromethane.
- Twin bearings.
- Twin needle carb with rear facing main needle.
What's in the Box:
- 1x Force 46 ABC two-stroke aero engine.
- 1x Torpedo silencer with pressure nipple.
- 1x Silencer gasket.
- 2x Silencer mounting screws.
- 1x Propeller driver.
- 1x Prop nut and washer.
- 1x Instruction and operating sheet.
Needed to Complete:
- 1x Medium cold glow plug.
- 1x 10 x 6 to 12 x 5" propeller.
Manuals & Parts Explosions:
Force 46 ABC Aero Engine (7.45cc) Tech Specs:
- Weight: 371.5g / 13.10oz
- Shipping Weight: 0.58kg / 1.29lbs
- Engine Size: 7.45cc
- Displacement: 7.45mm3
- Cylinder Bore: 22mm
- Age Recommendation: 14+
- Recommended Usage Environment: Outdoors
- Colour: Silver
- Material: Aluminium
Key Info:
- Brand: Force
- Part No: FORE-4601
- Barcode: 5051121247404
- Format: Nitro 2 Stroke
Delivery & Returns
Free Shipping
This item is over £100, so qualifies for free standard UK shipping!
Express Shipping
Upgrade to next day from £3
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Questions & Answers
Yes, the acro wot can take a 40 - 55 so this should work for you.
Os number 8 glow plug is the one to go for based on the spec of this engine.
We ship worldwide - just add to your basket to view costs :-)
For more in depth queries, please contact us.
