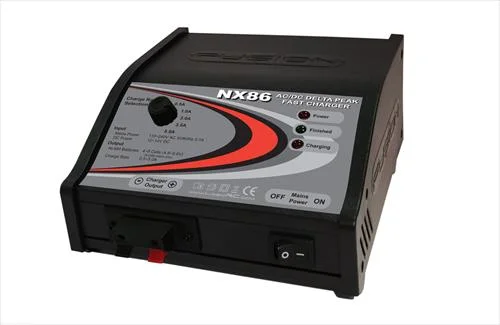

Fusion NX86 AC/DC NiMH Charger
Brand: Fusion
Part No: O-FS-NX86
SORRY, THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
Why not contact our team to see if an alternative is available?
The Fusion NX86 AC/DC Delta Peak Fast Charger is idealy suited for charging a complete range of NiMH batteries from either mains or 12V DC inputs and comes complete with a selection of charge leads.
Specifications
- Ni-Cd/Ni-MH Batteries: 4~8 Cells
- Charge Rates Selectable: 0.5A, 1A, 2A, 3.5A & 5A
- Charge Status: LED
- Inputs: 110~240V AC or 12V DC (cigarette lighter adaptor included)
- Leads included: Tamiya/Molex Charge Lead, TRX Charge Lead, T Type Charge Lead, Rx Charge Lead
- Outputs: 4mm Sprint Clip Connection
- Charge Termination: Delta Peak
The previous version of this charger was reviewed in May 2011 RCMW. Please clickhereto read the review.
Secured by Stripe
- Brand: Fusion
- Part No: O-FS-NX86
- Barcode: 5055320217305
- Input Voltage:
• 12V
• 240V (UK mains) - Included Connectors:
• Deans
• Receiver
• Tamiya
• Traxxas - Chemistry: NiMh / NiCd
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
No sorry this is a Nimh only charger.
Yes, that would take around 1.5-2hours to charge
Charge that at 3 Amps
This will work with the NiMh batteries in the Kanyon, but not the LiPo in the mini
Yes, this should be fine with the 7.2v NiMH batteries you'll be using in your Hornet :-)
Yes, that would work fine with a 5000mah NiMh battery
So we'd charge that at 3.5A and it will take around 45-50 mins to charge.
Yes, it'll charge it no problem - but you would need an adapter such as DYNC0070
1.2 Amp charge rate
That depends what batteries you have in there...
If they are for example 2000mah batteries, this would charge in around 50 minutes at the 2 Amp setting.
Yes, it includes a Traxxas charge lead.
Set it to 3.5 Amps and it should charge in around 50 mins.
Yes, this includes a Tamiya charge lead.
Set it to 2 Amps an a 2000mah battery would charge in just under 1 hour.
This is a fast charger, and once charged it will switch to trickle charge. As with any charger however, we wouldn't recommend leaving it unattended.
On a NiMh battery you wouldn't want to charge at more than 1C (so say 5 Amps for your 5000mah battery).
This charger can charge at 5 Amps maximum, so would take around 45-60 mins to fully charge your 5000mah battery.
Yes this comes with the Tamiya style connector and will work fine with the FTX batteries.
Yes, it could charge a 5500mah battery in around 1 hour at 5 Amps.
We'd recommend no more than 2 Amps for your 1800mah battery.
The Euro version has a euro plug.
You will want the normal version if you are in the UK.
If your battery has a Tamiya connector it will plug directly into this charger.
It would take around 45 mins to charge an 1800 battery at the 2 Amp setting.
Yes, this would charge that no problem.
Yes, we keep this item instore
