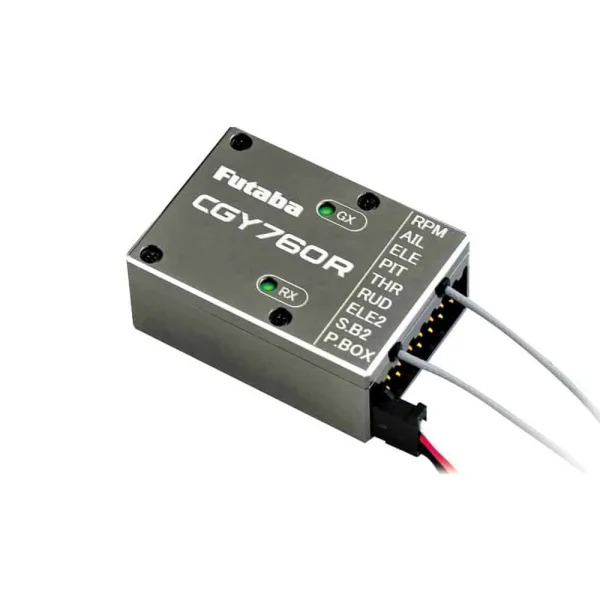

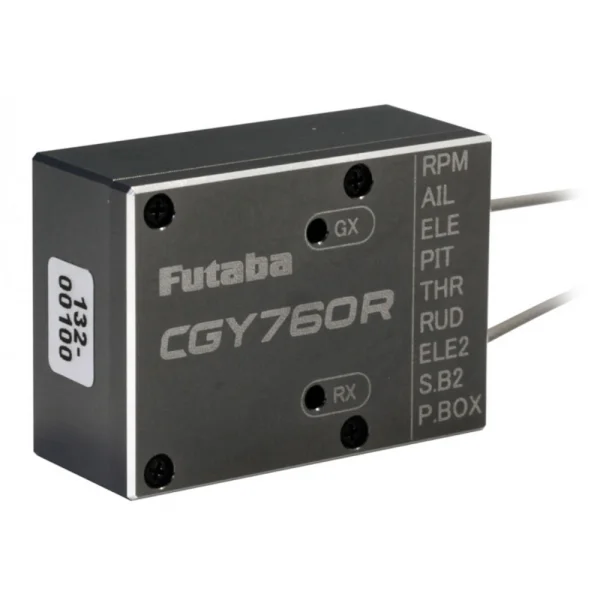

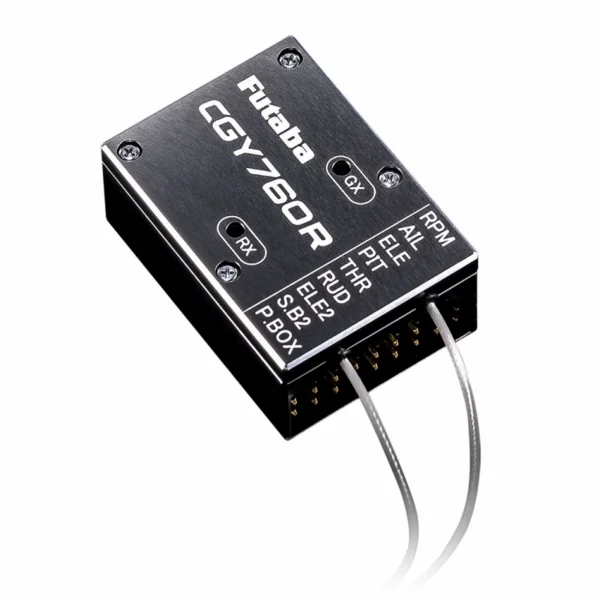

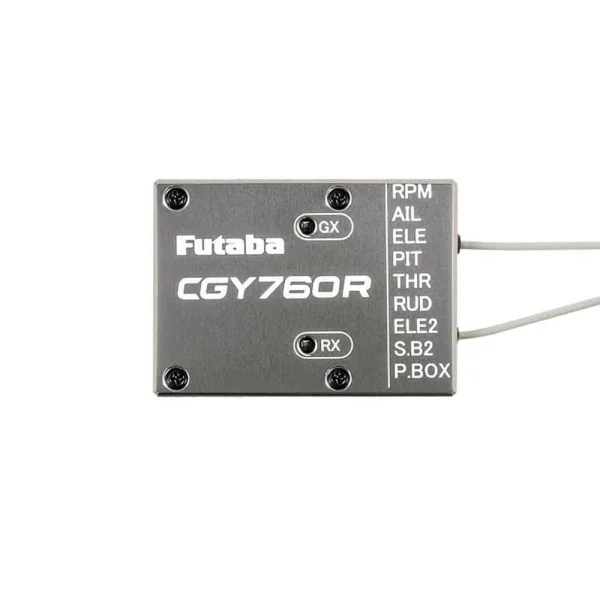

Futaba CGY760R 3-Axis Helicopter Gyro, T-FHSS/FASSTest Rx and Governor

The Futaba CGY760R is a compact, all-in-one helicopter flight control system combining cyclic and tail rotor gyros with an integrated governor and Futaba T-FHSS/FASSTest receiver. Built around a high-quality 3‑axis sensor and accelerometer, it delivers precise stabilisation for advanced 3D and F3C flying. Wireless setup via a compatible Futaba transmitter or the GPB‑1 handheld box streamlines installation and tuning, while the aluminium case and flexible rigid or tape mounting suit a wide range of airframes. Part number FUT05102651-3.

Key Features

• All-in-one cyclic gyro, tail rotor gyro, governor, and Futaba T‑FHSS/FASSTest receiver
• High-quality 3‑axis sensor and accelerometer
• Wireless programmability with compatible Futaba TX or GPB‑1
• 760 µs cyclic and tail rotor capability
• Easy to set up for 3D and F3C
• Programmable through the GPB‑1 handheld box
• Supports SBUS2 telemetry sensors and devices
• Durable aluminium case
• Rigid or tape mounting options

Technical Specifications

• Operating voltage (CGY760R): DC 4.2–8.4V
• Size (CGY760R): 26.8 x 37.5 x 16 mm
• Weight (CGY760R): 20.2 g
• Radio protocol support: FASSTest, T‑FHSS [Air]
• Age recommendation: 14+
• Colour: Black
• GPB‑1 operating voltage: DC 3.5–8.4V
• GPB‑1 size: 54 x 90 x 15.5 mm

Suggested Compatibility

RC helicopters in the 250–800 size range.

What’s In The Box

• 1x CGY760R 3‑Axis Gyro
