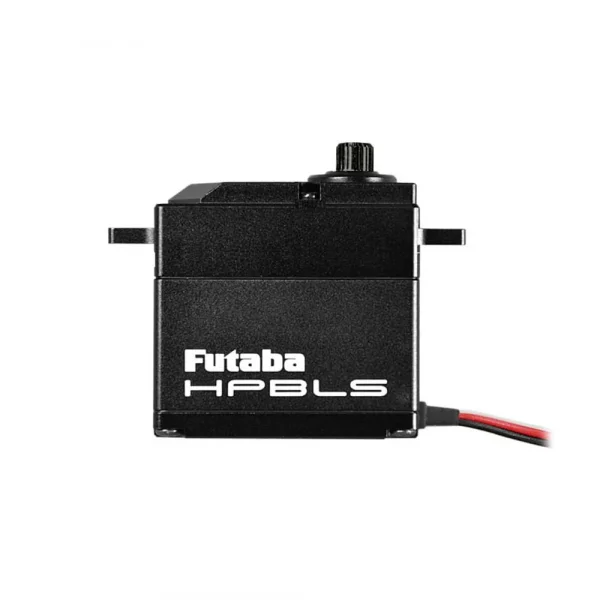

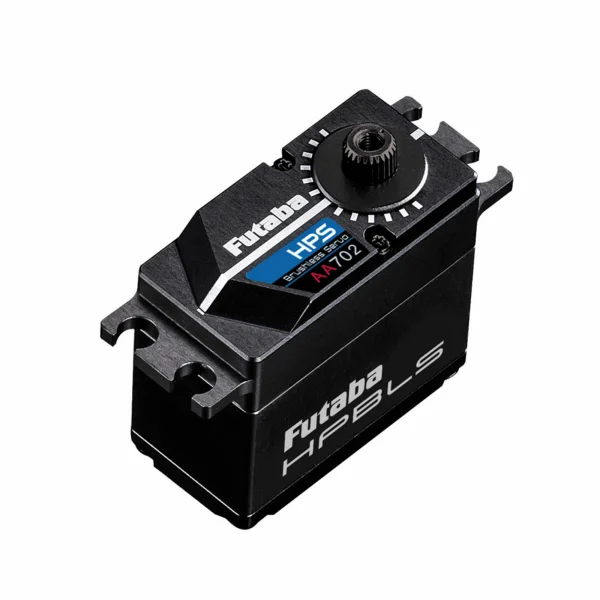

Futaba HPS-AA702 HV Brushless Servo S.Bus2 49kg 0.075s

The Futaba HPS-AA702 is a high-voltage standard aeroplane servo engineered for all‑purpose giant scale applications. It combines a custom high‑power brushless motor with an aluminium case and a stainless steel final gear for strength and precision. Compatible with PWM control as well as S.Bus and S.Bus2 systems, it is fully programmable and can be connected to a PC using the CIU‑2/‑3 USB adapter (sold separately). Transit speed is 0.075 sec/60° at 7.4V, with robust torque figures of 41.0 kgf/cm at 7.4V and 37.0 kgf/cm at 6.6V. Rated for DC 6.0–7.4V with an operating range of DC 4.8–8.4V.

Note: No dry battery or BEC use.

Key Features

• For all‑purpose giant scale airplane
• Programmable/HV brushless servo
• Custom new high‑power brushless motor
• Suggested upgrade for BLS172SV/177SC/AA700
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a PC using the CIU‑2/‑3 USB adapter (sold separately)
• Final gear material is stainless steel
• Upper/middle/bottom: aluminium case

What's in the Box

• 1x HPS‑AA702 Standard Brushless Servo
• Horns
• Mounting hardware

Tech Specs

• Speed: 0.08 sec/60° (6.6V); 0.075 sec/60° (7.4V)
• Torque: 37.0 kgf/cm (6.6V); 41.0 kgf/cm (7.4V)

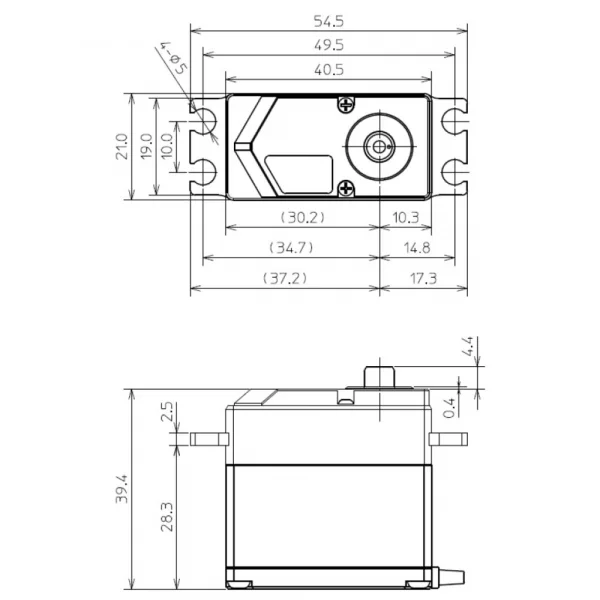

• Size: 40.5 x 21.0 x 39.4 mm (1.59 x 0.83 x 1.55 in)
• Weight: 80 g (2.82 oz)
• Rated Voltage: DC 6.0–7.4V
• Operating Voltage: DC 4.8–8.4V
• Servo Size: Standard
• Colour: Black
• Material: Metal; aluminium case; stainless steel final gear
• Programming: S.Bus/S.Bus2 compatible; PC link via CIU‑2/‑3 (sold separately)
• Shipping Weight: 0.14 kg (0.30 lb)
• Age Recommendation: 14+
