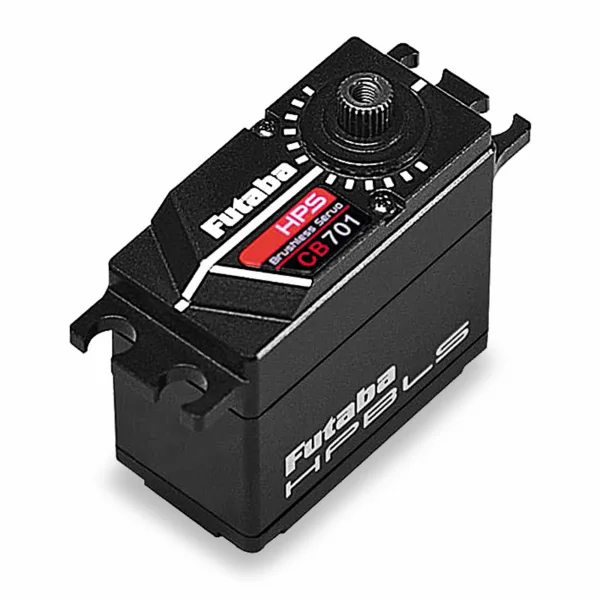

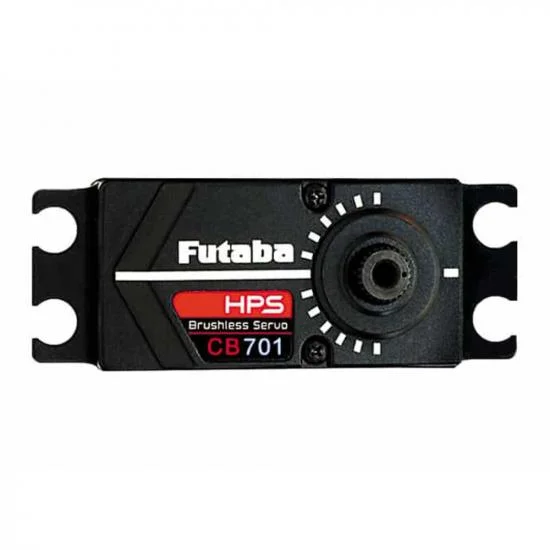

Futaba HPS-CB701 Brushless Servo 49kg 0.075s
Brand: Futaba
Part No: FUT05102698-3
Expected 11th November 2026
Request Stock NotificationFinance options available at checkout.
Frequently Bought With
Other items customers often buy with the Futaba HPS-CB701 Standard Brushless Servo MG PWM/S.Bus2 - 49kg - 0.075s
Description
The Futaba HPS-CB701 Standard Brushless Servo MG PWM/S.Bus2 delivers high-voltage performance for demanding RC car applications. Driven by a custom high-power brushless motor and housed in a full aluminium case, it balances rapid response with strong holding power in a standard-size footprint. Ideal when precision, durability and programming flexibility are required. Part number FUT05102698-3.
Performance
- Speed: 0.09 sec/60° (6.0V); 0.075 sec/60° (7.4V)
- Torque: 42.0 kgf/cm / 583.3 ozf/in (6.0V); 49.0 kgf/cm / 680.5 ozf/in (7.4V)
- Rated Voltage: DC 6.0V–7.4V; Operating Voltage: DC 4.8–8.4V
Key Features
- Programmable high-voltage brushless servo
- Compatible with S.Bus and S.Bus2 systems, plus standard PWM control
- Supports SR mode with T4PM/P, T7PX/R and T10PX transmitters
- Supports UR mode with T10PX
- PC connectivity via CIU-2/-3 USB adapter (sold separately)
- Full aluminium upper/middle/bottom case for strength and heat dissipation
- Metal gear train (MG) and standard-size form factor
Suggested Compatibility & Modes
- Suggested compatibility: 1/10 on-road and off-road, and 1/8 on-road and off-road RC cars
- Low-latency SR and UR modes supported as listed above for compatible Futaba transmitters
What’s Included
- 1x HPS-CB701 Standard Brushless Servo
- Horns
- Mounting hardware
Specifications

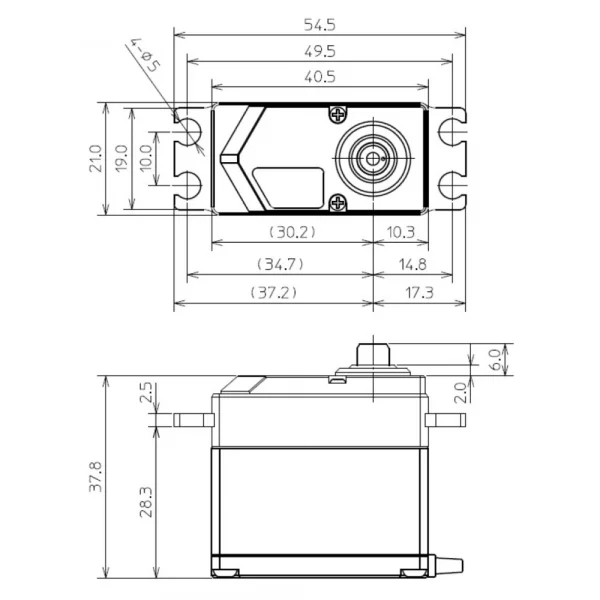

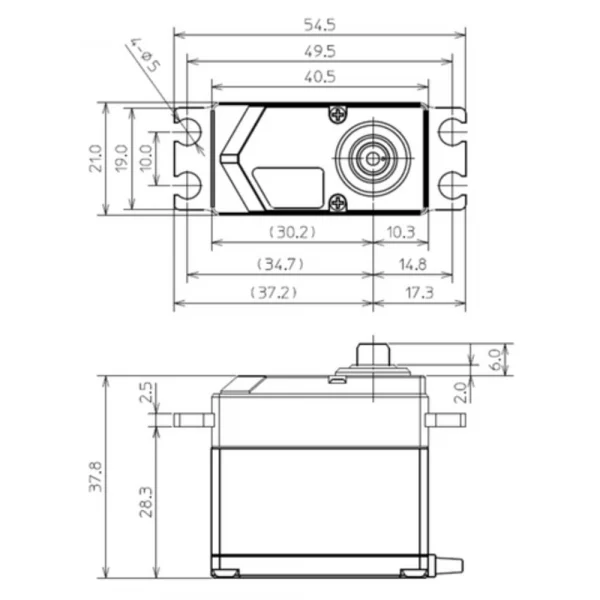

- Size: 40.5 x 21.0 x 37.8 mm (1.59 x 0.83 x 1.49 in)
- Weight: 75 g (2.65 oz)
- Shipping weight: 0.12 kg (0.27 lb)
- Servo size: Standard
- Colour: Black
- Material: Metal
- Age recommendation: 14+
Important Notes
- No dry battery or BEC
- Use only for RC cars smaller than 1/5 scale
Secured by Stripe
Specifications
HPS-CB701– S.Bus2 High-Voltage Standard Surface ServoHigh Performance Servo with Brushless Motor
Speed:
0.09 sec/60° (6.0V)
0.075 sec/60° (7.4V)
Torque:
42.0 kfg/cm (6.0V)
583.3 ozf/in (6.0V)
49.0 kgf/cm (7.4V)
680.5 ozf/in (7.4V)
Size:
40.5 x 21.0 x 37.8 mm
1.59 x 0.83 x 1.49 in
Weight:
75 g
2.65 oz
Rated Voltage:
DC 6.0V - 7.4V
Operating Voltage:
DC 4.8 - 8.4V
NO DRY BATTERY OR BEC USE
ONLY FOR RC CARS SMALLER THAN 1/5 SCALE
Futaba HPS-CB701 Standard Brushless Servo MG PWM/S.Bus2 - 49kg - 0.075s Key Features:
- Suitable for RC cars; 1/10 scale on/off road and 1/8 scale on/off road
- Programmable/HV Brushless Servo
- Custom New high power Brushless Motor
- Supports SR mode with T4PM/P, T7PX/R, T10PX
- Supports UR mode with T10PX
- Programmable and compatible with S.Bus and S.Bus2 systems
- Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
- Upper/middle/bottom: Aluminium Case
What's in the Box:
- 1x HPS-CB701 Standard Brushless Servo
- Horns
- Mounting Hardware
Futaba HPS-CB701 Standard Brushless Servo MG PWM/S.Bus2 - 49kg - 0.075s Tech Specs:
- Weight: 75g / 2.64oz
- Shipping Weight: 0.12kg / 0.27lbs
- Product Height: 38mm / 1.48in
- Product Width: 21mm / 0.82in
- Product Length: 41mm / 1.59in
- Servo Size: Standard
- Age Recommendation: 14+
- Colour: Black
- Material: Metal
Key Info:
- Brand: Futaba
- Part No: FUT05102698-3
- Barcode: 4513886035135
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
