Futaba HPS-H701 Brushless Servo PWM/S.Bus2 0.07s

The Futaba HPS-H701 is a standard-size brushless servo designed for fast, powerful and precise control in demanding RC applications. Offering PWM and S.Bus2 connectivity, it combines rapid transit speed with high torque output, packaged in a compact case that fits standard servo bays. Part number FUT05102721-3 ensures you are selecting the genuine Futaba HPS-H701 specification.

Key Features

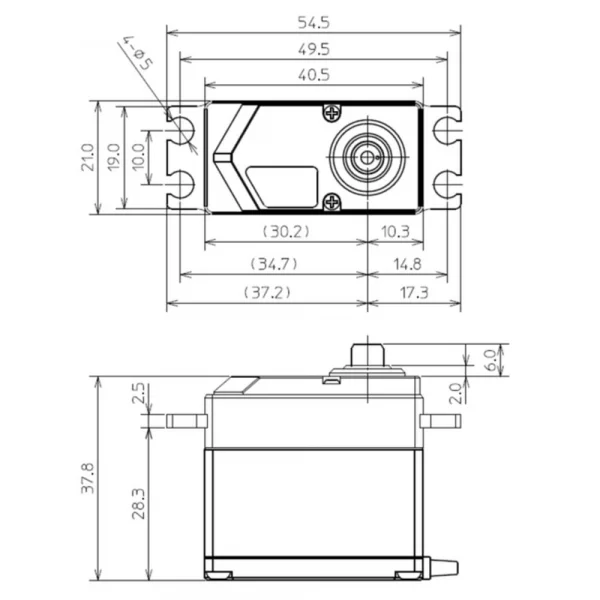

• Size: 40.5 × 21.0 × 37.8mm
• Weight: 76g
• Torque: 40.0kgf·cm (7.4V) / 36.0kgf·cm (6.6V)
• Speed: 0.07sec/60° (7.4V) / 0.075sec/60° (6.6V)
• Interfaces: PWM / S.Bus2
• Servo Size: Standard
• Colour: Black
• Age Recommendation: 14+

Tech Specs

• Product Length: 41mm / 1.59in
• Product Width: 21mm / 0.83in
• Product Height: 38mm / 1.49in
• Weight: 76g / 2.68oz
• Shipping Weight: 0.13kg / 0.28lbs

What's In The Box

• 1x Futaba HPS-H701 Standard Brushless Servo
• Horns
• Mounting Hardware

With its brushless motor architecture and precise control response, the HPS-H701 is well suited to high-performance radio control models where dependable torque and speed are essential. Its compact 40.5 × 21.0 × 37.8mm footprint and standard mounting make installation straightforward, while PWM and S.Bus2 options provide flexible setup with modern Futaba systems.
