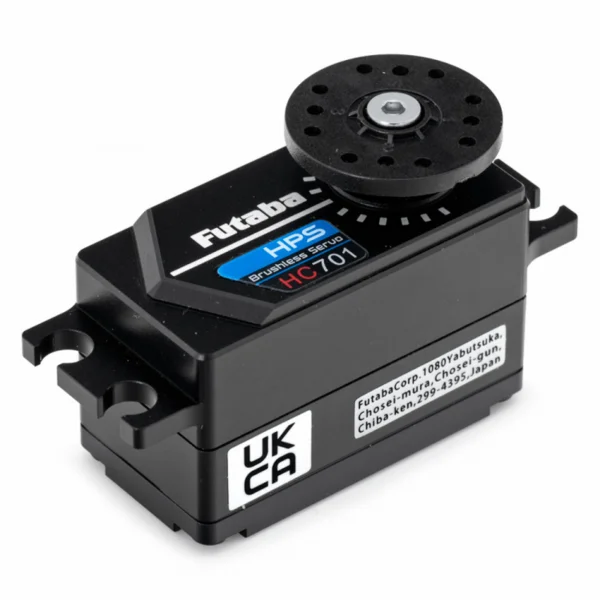

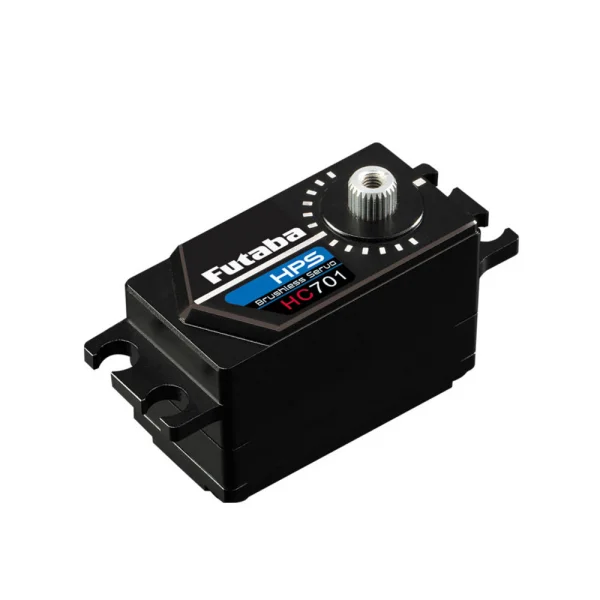

Futaba HPS-HC701 Standard Brushless Servo PWM/S.Bus2 - 20.0kg 0.075s
Brand: Futaba
Part No: FUT05102718-3
Shadow Stock: Usually ships next day
The Futaba HPS-HC701 is a high-performance cyclic servo designed for demanding RC helicopter control. Featuring a custom high power brushless motor, HV electronics and support for both 760µs and 1520µs pulse widths, it offers precise, repeatable response on PWM as well as S.Bus and S.Bus2 systems. Its all-aluminium upper, middle and bottom case provides excellent rigidity and heat dissipation for consistent performance in flight. Part number FUT05102718-3.
Key Features
- Programmable/HV brushless servo with custom high power motor
- Supports 760µs (factory default) and can be set to 1520µs with GPB-1 v4.3
- Programmable and compatible with S.Bus and S.Bus2 systems
- PC connection via CIU-2/-3 USB adapter (sold separately)
- Aluminium case: upper/middle/bottom
- Servo size: Low Profile; colour: Black; material: Metal
- Suggested compatibility: RC helicopters 500–800 size for 3D/F3C
Performance (1520µs Mode)
- Speed: 0.07 sec/60° (7.4V); 0.08 sec/60° (6.6V)
- Torque: 416.6 ozf·in (7.4V); 368.0 ozf·in (6.6V)
Performance (760µs Mode)
- Speed: 0.07 sec/60° (7.4V); 0.08 sec/60° (6.6V)
- Torque: 27.0 kgf·cm (7.4V); 24.0 kgf·cm (6.6V)
Technical Specifications

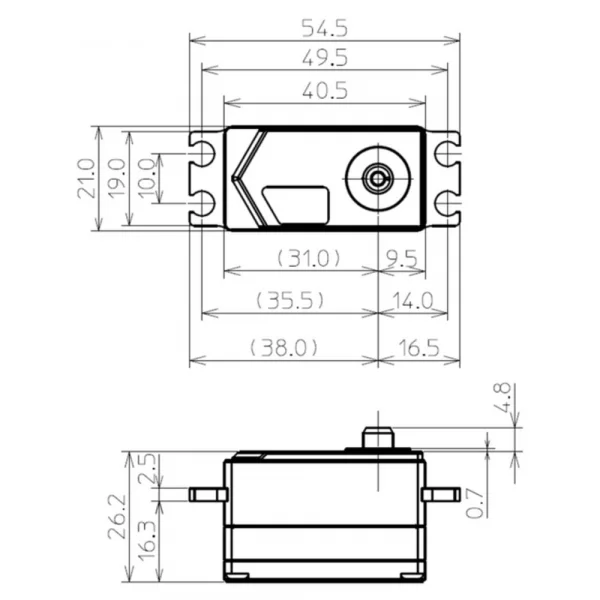

- Dimensions: 40.5 x 21.0 x 26.2 mm (1.59 x 0.83 x 1.03 in)
- Weight: 54 g (1.90 oz)
- Rated voltage: DC 6.0–7.4 V
- Operating voltage: DC 4.8–8.4 V
- Note: NO DRY BATTERY USE
What’s Included
- 1x HPS-HC701 Low Profile Brushless Servo
- Horns
- Mounting hardware
Secured by Stripe
High Performance cyclic Servo with Brushless Motor (1520uS/760uS switchable)
1520uS:
Speed:
0.07 sec/60° (7.4V)
0.08 sec/60° (6.6V)
Torque:
30.0gf・cm (7.4V)
26.5kgf・cm (6.6V)
416.6ozf・in (7.4V)br>368.0ozf・in (6.6V)
760uS:
Speed:
0.07 sec/60° (7.4V)
0.08 sec/60° (6.6V)
Torque:
27.0kgf・cm (7.4V)
24.0kgf・cm (6.6V)
375.0ozf・in (7.4V)br>333.3ozf・in (6.6V)
Dimensions:
40.5 x 21.0 x 26.2 mm
1.59 x 0.83 x 1.03 in
Weight:
54 g
1.90 oz
Rated Voltage:
DC 6.0V - 7.4V
Operating Voltage:
DC 4.8 - 8.4V
NO DRY BATTERY USE
Futaba HPS-HC701 Standard Brushless Servo PWM/S.Bus2 - 20.0kg 0.075s Key Features:
- Suitable for RC helicopters 500-800 3D/F3C
- Programmable/HV Brushless Servo
- Custom New high power Brushless Motor
- Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3)
- Programmable and compatible with S.Bus and S.Bus2 systems
- Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
- Upper/middle/bottom: Aluminium Case
What's in the Box:
- 1x HPS-HC701 Low Profile Brushless Servo
- Horns
- Mounting Hardware
Futaba HPS-HC701 Standard Brushless Servo PWM/S.Bus2 - 20.0kg 0.075s Tech Specs:
- Weight: 56g / 1.97oz
- Shipping Weight: 0.11kg / 0.24lbs
- Product Height: 26mm / 0.06in
- Product Width: 21mm / 0.82in
- Product Length: 41mm / 1.59in
- Servo Size: Low Profile
- Age Recommendation: 14+
- Colour: Black
- Material: Metal
Key Info:
- Brand: Futaba
- Part No: FUT05102718-3
- Barcode: 4513886036958
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
