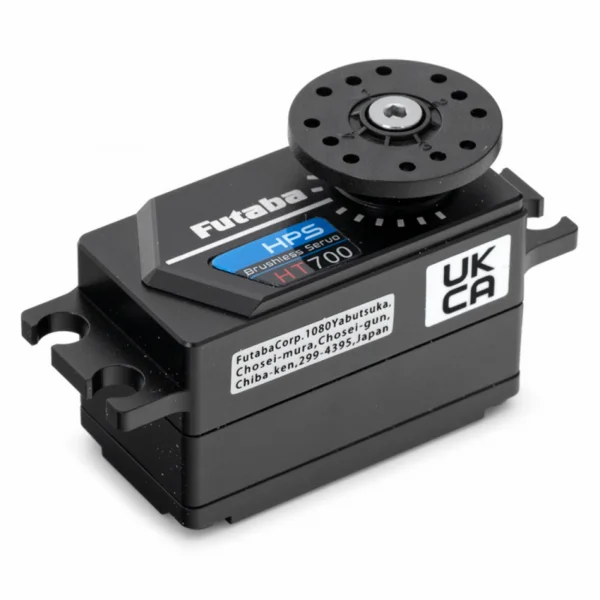

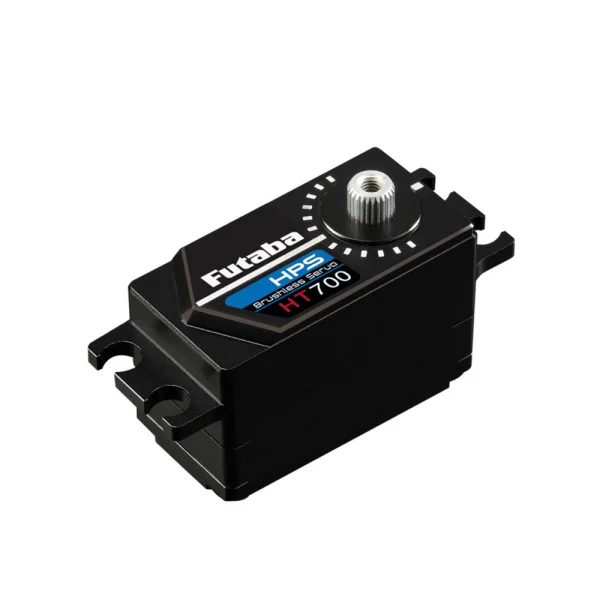

Futaba HPS-HT700 Brushless Tail Servo 9.6kg (FUT05102715-3)

The Futaba HPS-HT700 Standard Brushless Servo MG PWM/S.Bus2 (FUT05102715-3) is a high-performance, low-profile tail servo built around a brushless motor and metal gears. Delivering rapid response and precision, it offers 0.045 sec/60° speed and 9.6 kgf·cm torque at 7.4V, with S.Bus2 and PWM control options for flexible setup.

Rated for 6.0–7.4V and operating across 4.8–8.4V, the HPS-HT700 packs performance into a compact footprint of 40.5 × 21.0 × 26.2 mm. A black, low-profile case and robust internal construction make it a strong choice where speed and accuracy are essential on the tail.

Key Features

• Size: 40.5 × 21.0 × 26.2 mm
• Weight: 56 g
• Torque: 9.6 kgf·cm (7.4V) / 8.6 kgf·cm (6.6V)
• Speed: 0.045 sec/60° (7.4V) / 0.05 sec/60° (6.6V)
• Brushless motor with metal gears (MG)
• PWM and S.Bus2 control

What’s In The Box

• 1x HPS-HT700 Low Profile Brushless Servo
• Horns
• Mounting Hardware

Tech Specs

• Rated Voltage: DC 6.0–7.4V
• Operating Voltage: DC 4.8–8.4V
• Speed: 0.045 sec/60° (7.4V), 0.05 sec/60° (6.6V)
• Torque: 9.6 kgf·cm (7.4V), 8.6 kgf·cm (6.6V)

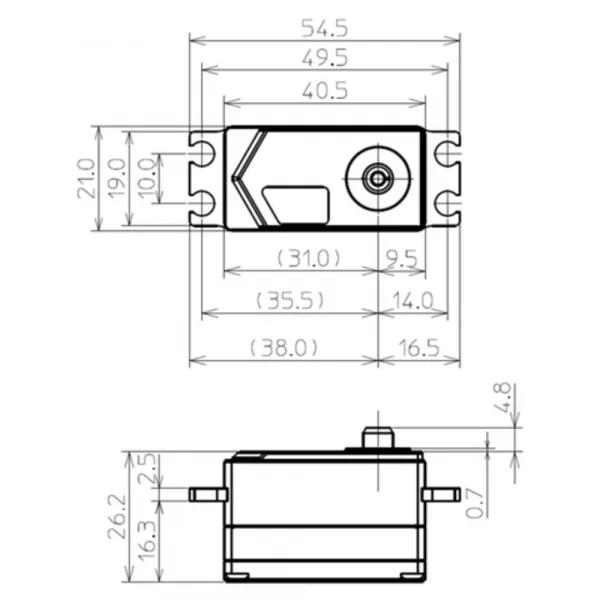

• Dimensions: 40.5 × 21.0 × 26.2 mm (1.59 × 0.83 × 1.03 in)
• Weight: 56 g (1.97 oz)
• Shipping Weight: 0.11 kg (0.24 lb)
• Product Length/Width/Height: 41 × 21 × 26 mm
• Servo Size: Low Profile
• Colour: Black
• Material: Plastic
• Age Recommendation: 14+

Important Notes

• NO DRY BATTERY USE
