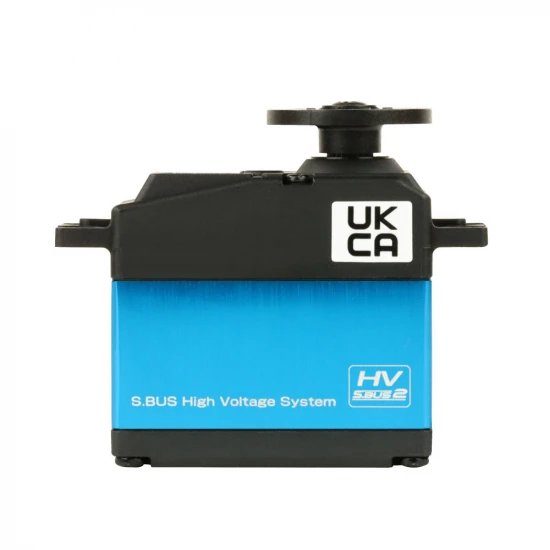

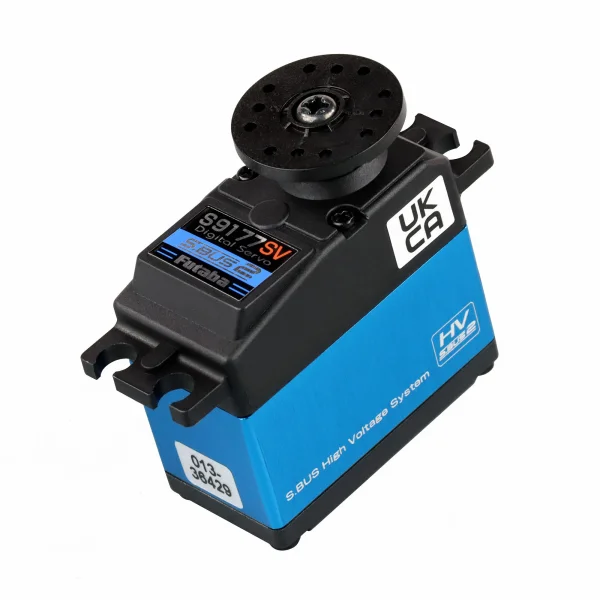

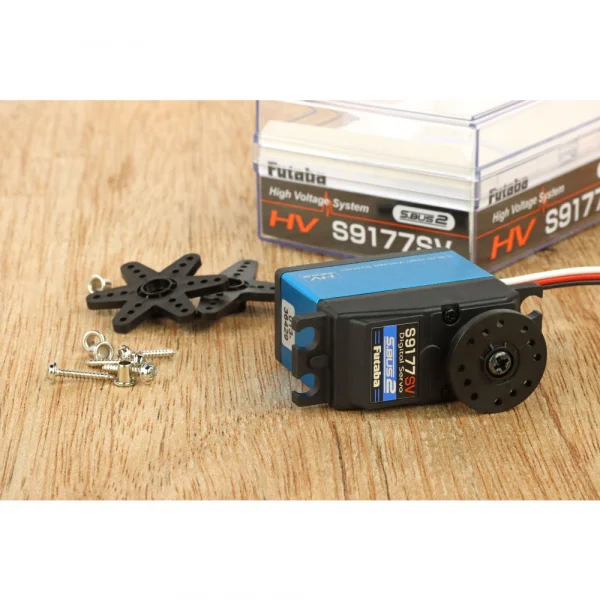

Futaba S9177SV HV Digital Servo 41kg 0.11s
Brand: Futaba
Part No: FUT05102626-3
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the Futaba S9177SV Coreless HV Digital Servo - PWM/S.Bus2 - 41kg 0.11s
Description
The Futaba S9177SV Coreless HV Digital Servo delivers a potent blend of speed, torque and precision in a standard-size footprint. Producing up to 41 kg.cm of torque at 7.4V with a swift 0.11s transit speed, it pairs dual ball-raced support with metal gears and an anodised metal centre case for durability and smooth operation. It is programmable, supports S.Bus2, and features soft start to help protect linkages and reduce sudden load spikes. Part number: FUT05102626-3.
Key Features
- High voltage, high torque coreless digital servo
- Supports S.Bus2
- Programmable with soft start
- Dual ball raced with metal gears
- Anodised metal centre case
- Standard case size
Performance Specifications
- Speed at 6.6V: 0.12 sec
- Speed at 7.4V: 0.11 sec
- Torque at 6.6V: 38.6 kg.cm
- Torque at 7.4V: 41.0 kg.cm
- Input voltage: 4.8–8.4V
- Spline: 25T
- Control options: PWM / S.Bus2
Dimensions & Weight
- Length: 41mm
- Width: 21mm
- Height: 38mm
- Weight: 74g
- Servo size: Standard
Additional Details
- Colour: Black
- Material: Plastic
- Age recommendation: 14+

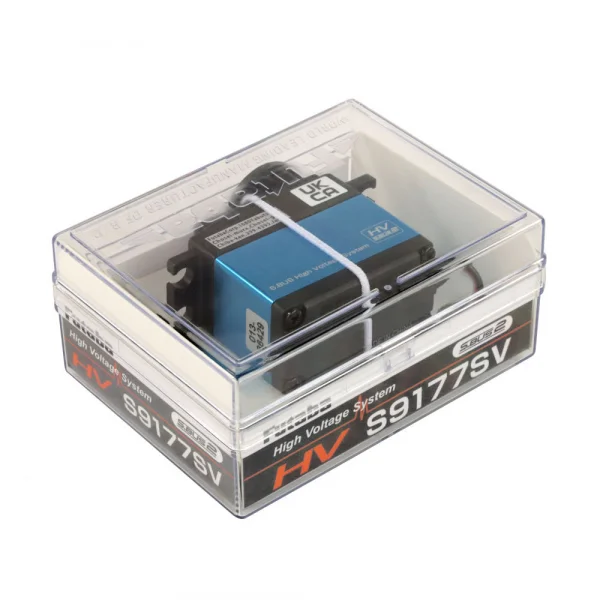

What’s In The Box
- 1x S9177SV Coreless Digital Servo
Secured by Stripe
Futaba S9177SV Coreless HV Digital Servo - PWM/S.Bus2 - 41kg 0.11s Manuals & Guides
Manuals & Guides
How-To Guides & Articles
Specifications
With an incredible 41 kg.cm of torque at 7.4V the S9177SV offers, arguably, the perfect balance between, size, torque, cost and quality. Dual ball raced with metal gears and an anodised metal case centre, the S9177SV is programmable, supports S.Bus2 and features soft start technology.
Specification:
| Speed at 6.6V (sec): | 0.12 |
| Speed at 7.4V (sec): | 0.11 |
| Torque at 6.6V (kg.cm): | 38.6 |
| Torque at 7.4V (kg.cm): | 41.0 |
| Spline (teeth): | 25 |
| Input Voltage (V): | 4.8 to 8.4 |
Futaba S9177SV Coreless HV Digital Servo - PWM/S.Bus2 - 41kg 0.11s Key Features:
- High voltage.
- High torque.
- Supports S.Bus2.
- Dual ball raced.
- Programmable.
- Standard case size.
- Soft start.
What's in the Box:
- 1x S9177SV Coreless Digital Servo
Futaba S9177SV Coreless HV Digital Servo - PWM/S.Bus2 - 41kg 0.11s Tech Specs:
- Weight: 74g / 2.61oz
- Shipping Weight: 0.13kg / 0.28lbs
- Product Height: 38mm / 1.47in
- Product Width: 21mm / 0.82in
- Product Length: 41mm / 1.59in
- Servo Size: Standard
- Age Recommendation: 14+
- Colour: Black
- Material: Plastic
Key Info:
- Brand: Futaba
- Part No: FUT05102626-3
- Barcode: 4513886027987
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
