Description

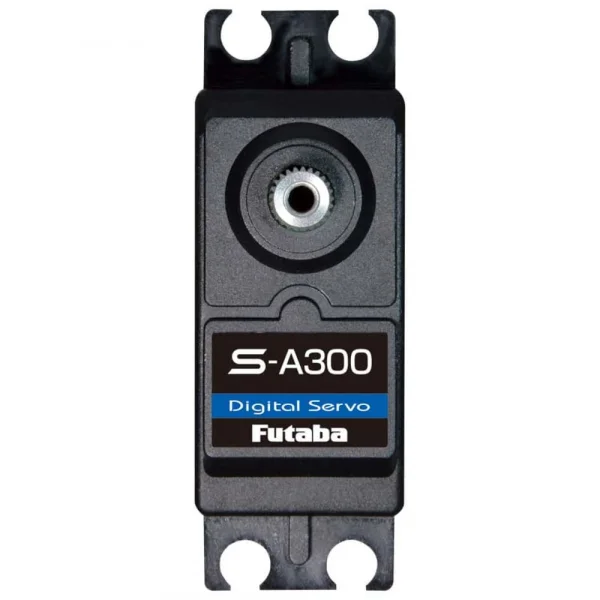

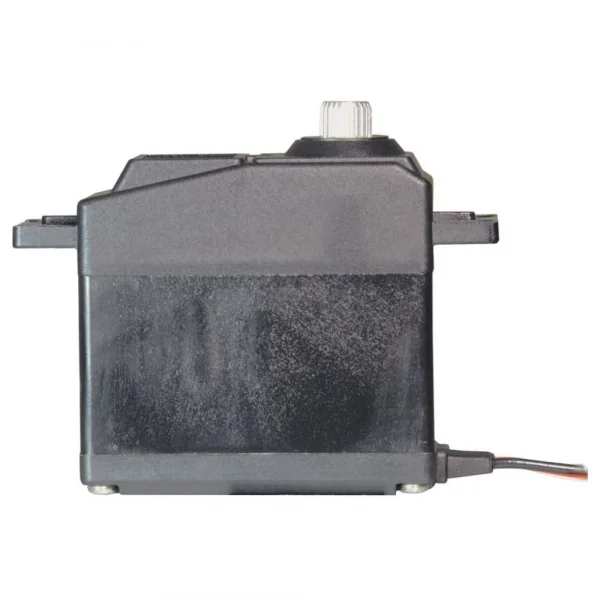

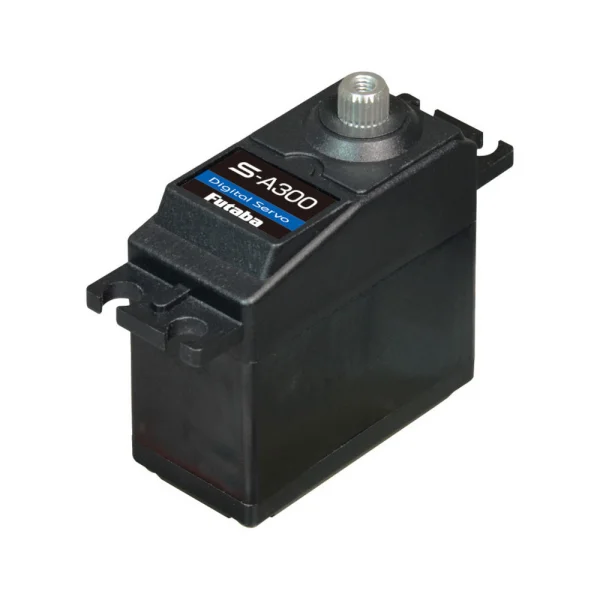

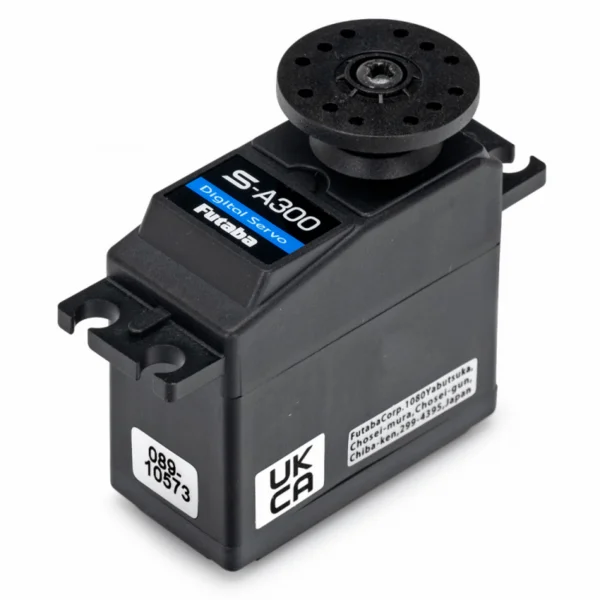

The Futaba S-A300 Standard Digital Servo (part number FUT05102732-3) is a coreless, metal-gear aircraft servo with bearing support, offering smooth control and reliable performance. It supports both conventional PWM and Futaba S.Bus2 connections, delivering up to 11.0 kgf cm torque and a swift 0.17 sec/60° transit time at 7.4V, all in a compact standard-size case weighing just 47g.
Key Features
- Size: 40×20×38.1mm
- Weight: 47g
- Torque: 11.0 kgf cm (7.4V) / 10.0kgf cm (6.6V)
- Speed: 0.17sec/60° (7.4V) / 0.19sec/60° (6.6V)
What’s In The Box
- 1x Standard Digital Servo
- Horns
- Mounting Hardware
Technical Specifications
- Rated Voltage: 6.0–7.4V
- Speed: 0.19 sec/60° (6.0V); 0.17 sec/60° (7.4V)
- Torque: 138.9 oz/in (6.0V); 152.8 oz/in (7.4V)
- Product Length: 40mm / 1.57in
- Product Width: 20mm / 0.78in
- Product Height: 38mm / 1.5in
- Weight: 47g / 1.65oz
- Shipping Weight: 0.10kg / 0.22lbs
- Servo Size: Standard
- Age Recommendation: 14+
- Colour: Black
- Material: Plastic
Secured by Stripe
Specifications
S-A300-S.Bus2 Coreless Digital Airplane Servo
Metal Gears w/ bearing
Speed:
0.19 sec/60° (6.0V)
0.17 sec/60° (7.4V)
Rated Voltage:
6.0 - 7.4V
Torque:
138.9 oz/in (6.0V)
152.8 oz/in (7.4V)
Size:
28.99 x 20.06 x 38.10 mm
1.57 x 0.79 x 1.5 in
Weight:
47.06 g
1.66 oz
Futaba S-A300 Standard Digital Servo PWM/S.Bus2 10.5kg .17s 4.8V - 7.4V Key Features:
- Size: 40×20×38.1mm
- Weight: 47g
- Torque: 11.0 kgf cm (7.4V) / 10.0kgf cm (6.6V)
- Speed: 0.17sec/60° (7.4V) / 0.19sec/60° (6.6V)
What's in the Box:
- 1x A-A300 Standard Digital Servo
- Horns
- Mounting Hardware
Futaba S-A300 Standard Digital Servo PWM/S.Bus2 10.5kg .17s 4.8V - 7.4V Tech Specs:
- Weight: 47g / 1.65oz
- Shipping Weight: 0.10kg / 0.22lbs
- Product Height: 38mm / 1.5in
- Product Width: 20mm / 0.78in
- Product Length: 40mm / 1.57in
- Servo Size: Standard
- Age Recommendation: 14+
- Colour: Black
- Material: Plastic
Key Info:
- Brand: Futaba
- Part No: FUT05102732-3
- Barcode: 4513886038563
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
