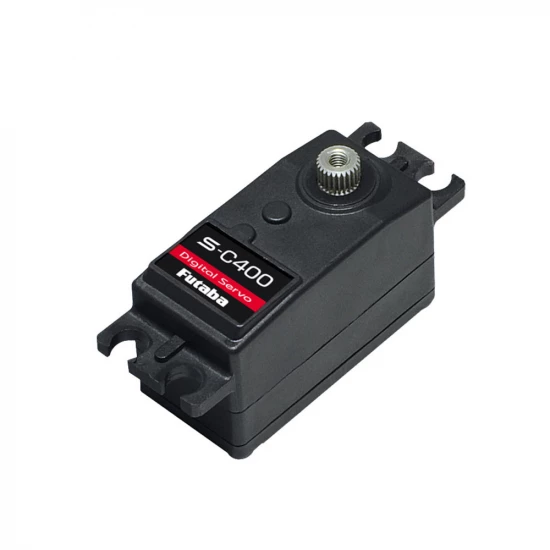

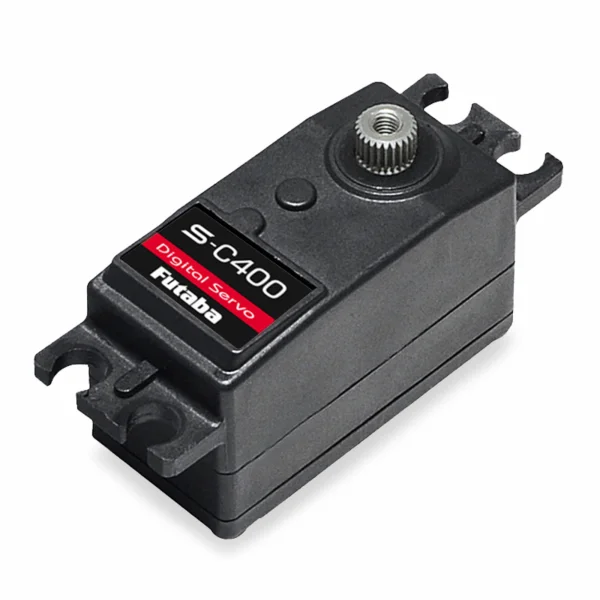

Futaba S-C400 Low Profile Digital Servo PWM/S.Bus2

The Futaba S-C400 is a low-profile, high-voltage surface servo for RC car applications, supporting standard PWM control and S.Bus2. Delivering quick transit times with solid torque in a compact 40.5 × 20.0 × 25.4 mm case, it weighs just 43 g. This digital, S.Bus2-programmable car servo offers dependable Futaba performance in a slim footprint. Part number: FUT05102742-3.

Key Features

• Low-profile digital surface servo for cars
• S.Bus2 and PWM control
• High-voltage capable
• Speed: 0.10 sec/60° (6.0V), 0.08 sec/60° (7.4V)
• Torque: 6.6 kgf·cm (6.0V), 8.0 kgf·cm (7.4V)
• Size: 40.5 × 20.0 × 25.4 mm
• Weight: 43 g
• Rated voltage: DC 6.0–7.4V; Operating voltage: DC 4.0–8.4V
• No dry battery use

What’s In The Box

• 1× S-C400 Low Profile Digital Servo
• Servo horns
• Mounting hardware

Technical Specifications

• Speed: 0.10 sec/60° (6.0V); 0.08 sec/60° (7.4V)
• Torque: 6.6 kgf·cm / 91.6 ozf·in (6.0V); 8.0 kgf·cm / 111.1 ozf·in (7.4V)
• Dimensions: 40.5 × 20.0 × 25.4 mm
• Weight: 43 g / 1.52 oz
• Product length/width/height: 41 × 20 × 25 mm
• Shipping weight: 0.09 kg / 0.19 lb
• Servo size: Low Profile
• Colour: Black
• Material: Plastic
• Age recommendation: 14+
