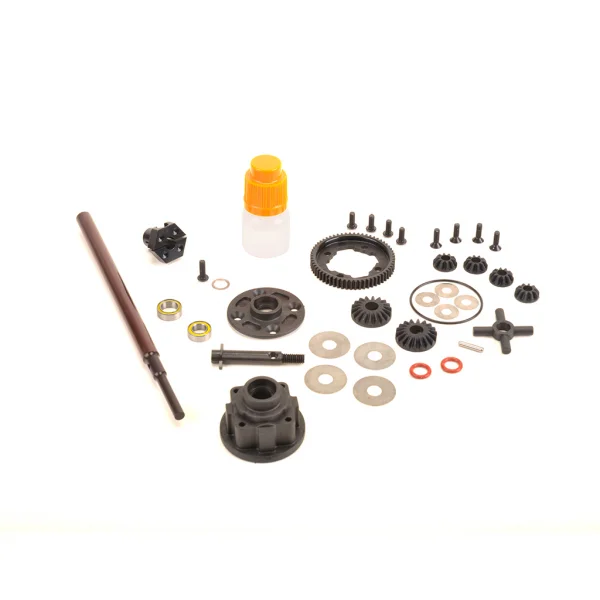

Gear Diff Set - Icon/2
Brand: Schumacher
Part No: SCH-U8180
£39.89
RRP £41.99
In Stock: Usually ships same day
Designed by Schumacher’s engineering and race team, the SCH-U8180 Gear Diff Set for Icon/2 delivers consistent performance with minimal maintenance compared with a ball differential. The assembly is fully ball raced for precision, features a strong steel axle, and includes a 60T 48dp spur gear. Oil-filled tuning lets you tailor rotation and stability to track grip.
Key Features
- Consistent, easy setting with less frequent maintenance.
- Improved handling: more stable corner entry, enhanced mid-corner and exit rotation.
- Fully ball raced for precision, performance and lower maintenance.
- Steel axle for strength and reliability.
- 60T 48dp spur included.
- Oil viscosity adjustment for greater tunability than a ball differential.
- Optional carbon axle (U8353) available, approximately 8 g lighter.
Tuning Guidance
- 700–2000 cSt: suited to low-grip conditions.
- 2000–5000 cSt: suited to medium-grip conditions.
- 5000–15000 cSt: suited to high-grip conditions.
Driving Characteristics
- Ball differential: easiest to drive; best for low-grip tracks.
- Gear differential: moderate to drive; best for all-round conditions with tunability using the correct oil.
Secure Payments
Secured by Stripe
Designed and developed by our engineering and race team, this gear differential offers several great improvements over the ball differential design.
- Consistent and easy setting with less frequent maintenance, with very little change from race to race.
- Improved handling ability with more stable cornering entry, and improved mid and particularly exit rotation.
- Fully ball raced for high precision, performance and lower maintenance.
- Steel axle for strength and reliability.
- 60T 48dp spur included.
- The oil viscosity can be adjusted, to offer greater tunability than the ball differential.
(700cSt-2000cSt) suited to low grip conditions.
(2000cSt-5000cSt) suited to medium grip conditions.
(5000cSt-15000cSt) suited to high grip conditions.
- The (removed kit) ball differential may still be used when the track grip is low, but in other conditions this gear differential should always offer more potential.
Ball Diff – Easiest to drive – best for low grip tracks.
Gear Diff – Moderate to drive – best for all round conditions with tunability with the correct oil.
- U8353 Optional carbon axle available for ultimate performance, 8g lighter.
Key Info:
- Consistent and easy setting with less frequent maintenance, with very little change from race to race.
- Improved handling ability with more stable cornering entry, and improved mid and particularly exit rotation.
- Fully ball raced for high precision, performance and lower maintenance.
- Steel axle for strength and reliability.
- 60T 48dp spur included.
- The oil viscosity can be adjusted, to offer greater tunability than the ball differential.
(700cSt-2000cSt) suited to low grip conditions.
(2000cSt-5000cSt) suited to medium grip conditions.
(5000cSt-15000cSt) suited to high grip conditions.
- The (removed kit) ball differential may still be used when the track grip is low, but in other conditions this gear differential should always offer more potential.
Ball Diff – Easiest to drive – best for low grip tracks.
Gear Diff – Moderate to drive – best for all round conditions with tunability with the correct oil.
- U8353 Optional carbon axle available for ultimate performance, 8g lighter.
Key Info:
- Brand: Schumacher
- Part No: SCH-U8180
- Barcode: 5051294153014
