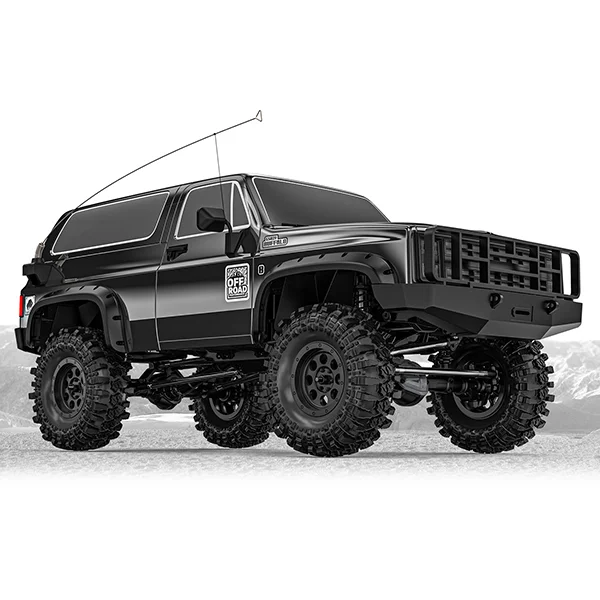

GMade GS02F Buffalo TS RTR
GMade GS02F Buffalo TS RTR

GMade GS02F Buffalo TS RTR

Brand: GMade

Part No: GM57012

£525.09 RRP £589.99

Shadow Stock: Usually ships within 2 days

Collect Instore

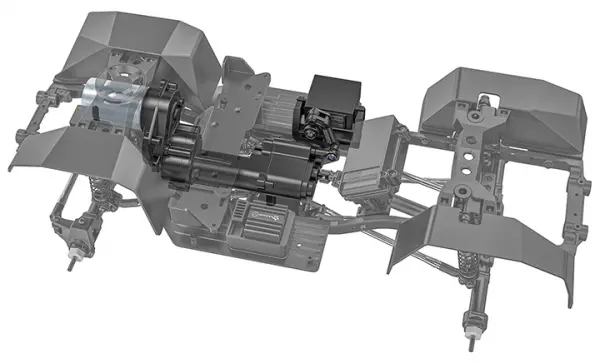

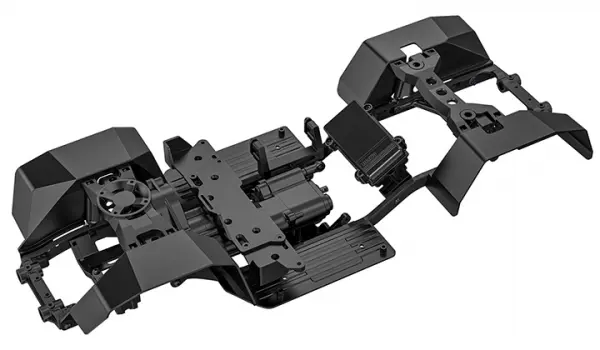

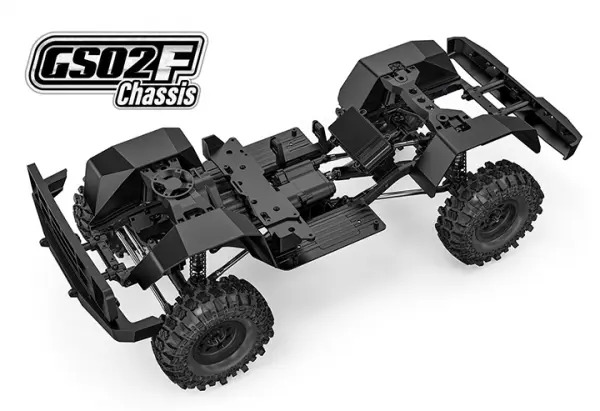

Steel Ladder Frame

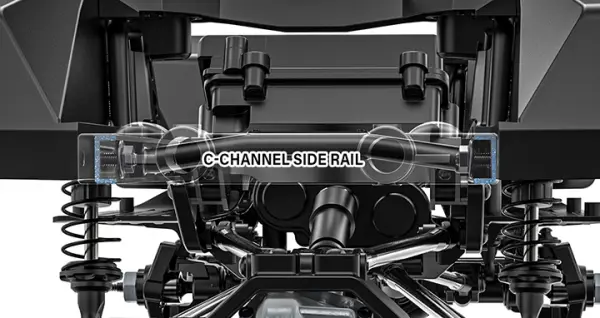

The frame of GS02F chassis is designed to look like real cars’. It is made of high strength steel and the C-channel side rail with hex wrench bolted cross members make it resistant to twisting and warping. The steel parts are finished with powder coats to prevent rusting.

Inner Fenders

The inner fenders are directly fixed to the frame to reduce flex and bend of the chassis and parts. They also avoid external objects entering intothe chassis during the driving.

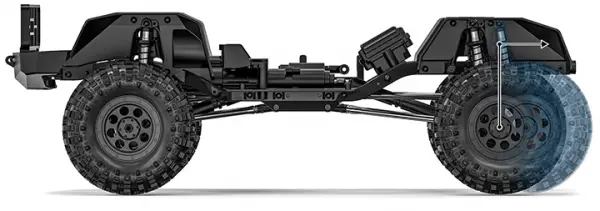

Adjustable wheelbase

The GS02F chassis allows 2 types of wheel bases. Basically set for 313mm and can be adjusted to 324mm for custom bodies.
(Optional link kits are sold separately)

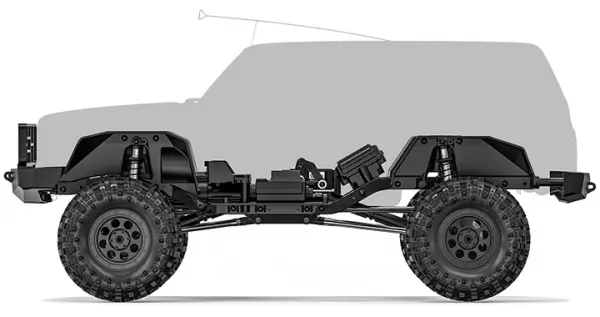

Front weight balance

Weight balance of the GS02F chassis is leaning forward. This increases traction of the front wheels and provides better crawling performance at high angle hills or rocks. It also minimizes rolling over backwards when climbing.

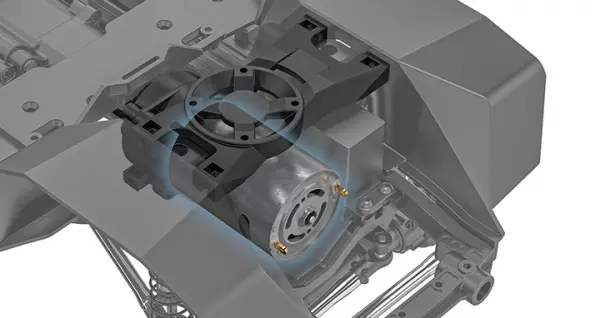

Front Mounted Motor

Front mounted motor helps the vehicle’s weight balance to the front.
Either a 540 or 550 size motor can be mounted and a cooling fan will be easily fitted to the incorporated structure.

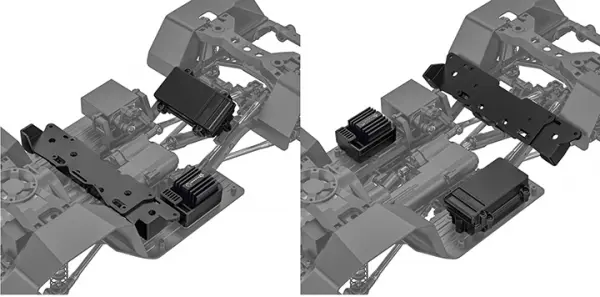

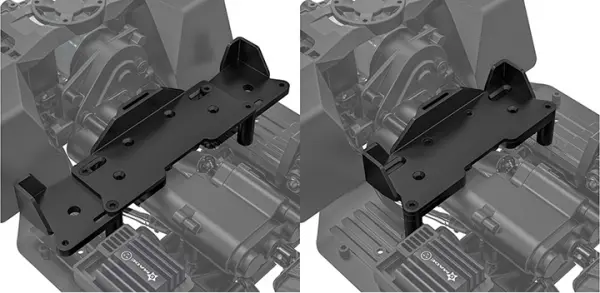

Multiple Battery Size And Locations

Size changing battery tray of the GS02F chassis can hold all sizes of Lipo and Ni-MH batteries and can be fitted to various locations for the users purposes.

Chassis Mounted Servo System

Steering servo in the GS02F chassis is located on the frame just as the real cars. Therefore the system eliminates bump steering effects which appear by the front wheel suspension movements. Additionally the panhard-bar is installed and cleverly designed to avoid any interference with nearby parts, so the front suspension and shocks can move freely.

DRIVE TRAIN



Drivelines

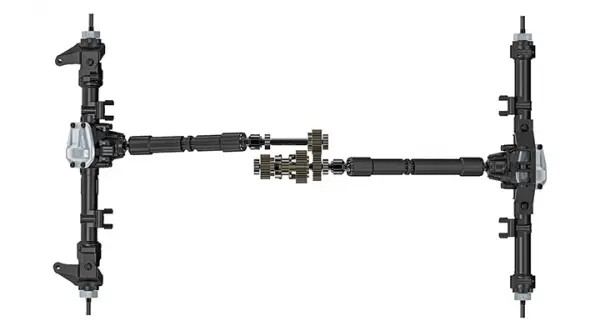

The drivelines to the front and rear axles are designed to arrange in a straight-line and this reduces fatigue or stress of the universal shafts and loss of power delivery.

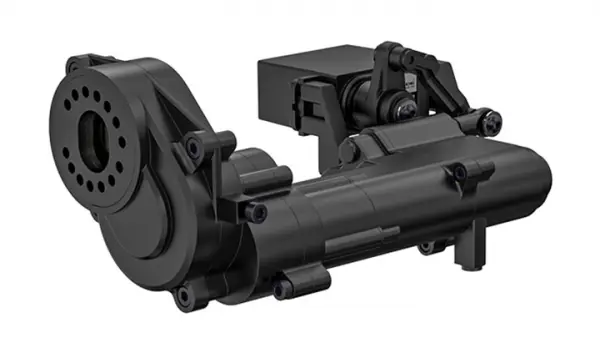

Transmission

Transmission of the GS02F chassis is designed to look as that of real vehicles. It also provides best performance for every driving situation.

Overdrive

Overdrive system means the front and the rear wheels rotate for different speeds. The GS02F transmission is designed to rotate the front wheels faster than the rearwheels.

Better Steering Radius

Vehicles with overdrive front wheels turn with shorter steering radius compared with non-overdrive vehicles. The overdrive also makes the control easier when the car is driving on rough surfaces.



Better Climbing

Increasing of the tire traction allows the vehicle to pass through steep slopes and obstacles without lifting the front of the body upward.



2-Speed HI/LO Transmission

The 1st gear is for hardcore rock crawling and the 2nd gear is for hill climb or high-speed driving.



Torque Twist Reduce transmission

TTR(Torque Twist Reduce) transmission is designed to reduce unnecessary torque so the vehicle will drive with more stability. From the transmission, the front and rear universal shafts rotates clockwise and counterclockwise, and these opposite rotations compensate for rotational forces of action(torque) and reaction(reverse torque).



Easy Adjust Motor Mount

With the easy motor mount, users can easily replace and install the motor pinion gear for changing the gear ratio.



Dual Slipper Clutch

Dual slipper pads are designed to hold the spur gear evenly. Therefore the clutch allows more precise settings.



All metal internal gears



Hardened carbon steel universal joints

The steel joints attached to universal shafts always provide smooth and stable power deliveries.
The kit also provides universal shafts with different lengths, so the user can try other wheel bases or styles.



GA44 Axle

The GA44 axle is designed for hard core rock crawlers in mind. This high endurance one piece axle is made of high strength materials and will look like real 1:1 scale vehicles’ when it is connected to 4 link suspensions. It is equipped with uniquely designed tilted differential covers and this design will help decrease damages of the differential covers and smoothly climb over the obstacles.



Kingpin Angle

Keeping the scrub radius to a minimum to let your steering servo work at it's full potential and increases the steering efficiency.



High Steer knuckle Arm

High steer knuckle arm system increases the approach angle, so the vehicle can climb over the obstacles more easily than typical trucks.



Adjustable Caster

The GA44 front axle has a caster angle adjustment system which allows users to choose a smoother and shorter turning radius or more straight running stability.



Zero Ackerman Steering

The GA44 axle is using Zero-ackerman steering system with CVA to ensure maximum performance with a short turn radius and smooth motion even on rough off-road terrain.

SUSPENSION



SD Scaler Shock Absorber

SD scale shock is a coil-over style shockabsorber which is optimized for scale trucks. When driving, the oil inside the shock bodies will minimize the bouncing and high durability aluminum shock bodies and 3.5mm heavy duty shock shafts will ensure smooth driving on rough surfaces. Adjustable nuts will make it easy to change the ride-height of the vehicle so the user can quickly adapt settings to any driving conditions.



WHEELS AND TIRES



MT-1903 1.9 Inch M/T Off-Road Tire

The MT 1903off-road tires, made of super soft compound material provide much traction to the surfaces. The tread patterns are suitable for off-road driving and the large diameter of the tires enables it to run smoothly on any uneven road surfaces.

Specifications

Tire Height: 109mm
Tire Width: 40mm
Inner Diameter: 48mm (1.9")



1.9 Inch NR03 WheelSpecifications

Width : 23mm
Diameter : 48mm (1.9")
Offset : 0.5mm positive offset
Hex mount : 12mm



EXTERIOR

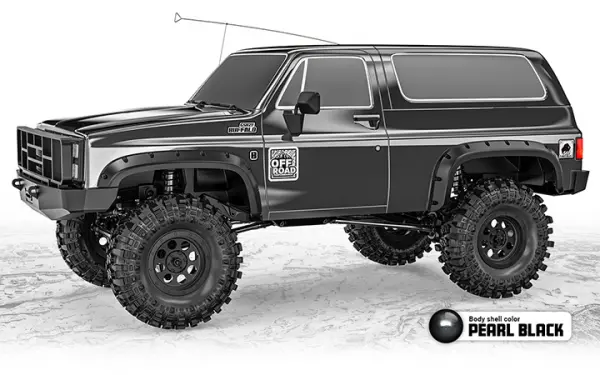

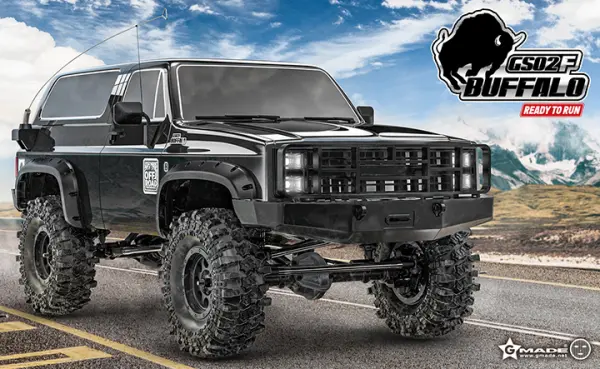

Buffalo Lexan Body

Body of the buffalo RTR is made of high quality lexan which has 1.5mm thickness with high strength and details.
To add realistic details it offers high-strength plastic accessories which are a front grille, light buckets, side mirrors, wipers, door handles, overfenders and an antenna, soyou can have a realistic off-road vehicle to match the concept of true off-road adventures.
Also the body includes decals with realistic details.




StealthBody Mount

This system allows the car body to be secured to the chassis without drilling holes on the body surface, so it will increase the realistic scale of the vehicle.





  • Brand: GMade
  • Part No: GM57012
  • Barcode: 8809631994281
  • Scale: 1:10
  • Build Level: Assembled (RTR)
  • Power Source: Electric - Brushed
  • Surface Type: Off Road
  • Vehicle Type: Rock Crawler
Free Shipping

This item is over £100, so qualifies for free standard UK shipping!

Express Shipping

Upgrade to next day from £3

Worldwide Shipping

Available at checkout

Reviews
No specific product reviews yet, why not write one?
WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
What is the wheel base
Charlie Teague / 23rd October 2022

They come set at 313mm but are adjustable up to 324mm
