GMade Xd Aeration Shock 103mm (2)

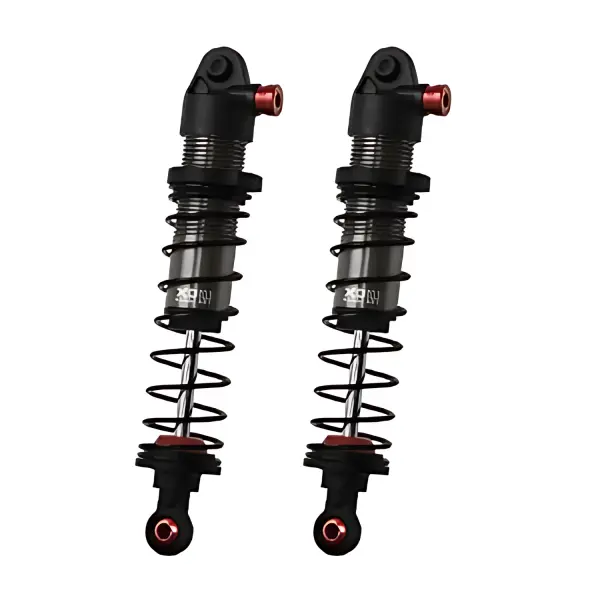

The GMade XD Aeration Shock 103mm (GM21407) is a pair of emulsion-style dampers designed for confident control on rough surfaces, bumps and jump landings. CNC-machined, titanium grey anodised aluminium bodies with red aeration screws provide a durable, precision build, while fully threaded bodies enable quick preload and ride-height tuning. Robust 3.5 mm shafts, Delrin pistons and double O-ring seals help deliver smooth, consistent damping.

Features

• Emulsion design mixes oil and air; easy to build and well suited to rough terrain, bumps and landings
• CNC-machined aluminium shock bodies with red anodised aeration screws
• Titanium grey anodised finish with laser-engraved markings
• Fully threaded bodies for rapid adjustment
• Delrin pistons for smooth action
• 3.5 mm thick shock shafts
• Shaft exits through double O-ring seals
• Easy-load shock seal assembly
• Lower shock ends include red anodised aluminium balls

What's Included

• Titanium grey anodised aluminium shock bodies x 2
• Red anodised aluminium aeration screws x 2
• Shock springs x 2
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil

Specifications

• Length (mounting hole to hole): 103 mm
• Shock body diameter: 14 mm
• Spring diameter: 19 mm
• Spring length: 68 mm
• Full shaft travel range: 31 mm (without rubber bump stop)
• Shaft diameter: 3.5 mm

Suggested Compatibility

• 1/8 and 1/10 scale crawlers and trucks
• 1/10 scale electric buggies
• Short course trucks
• Examples include: GMade R1, Axial Wraith, Axial XR-10, Traxxas E-Maxx, Traxxas 2WD Slash (rear)
