GMade Xd Diaphragm Shock 55mm (2)

The GMade XD Diaphragm Shock 55mm (pair) delivers precise, consistent damping for compact RC builds. With CNC-machined aluminium bodies and caps in a titanium grey anodised finish, these shocks combine durability with smooth action. Part number GM22507 includes oil and hardware to complete assembly.

Suggested Compatibility

• 1/8 and 1/10 scale crawlers and trucks
• 1/10 scale EP buggies
• Short course trucks
• Examples include: GMade R1, Axial Wraith and XR-10, Traxxas E-Maxx and Slash 2WD (rear)

Features

• CNC machined aluminium shock bodies and caps
• Titanium grey anodised finish
• Lower shock ends include red anodised aluminium balls
• Fully threaded bodies for rapid preload adjustment
• Delrin pistons
• 3.5mm thick shock shafts
• Double O-ring shaft seals
• Easy-load shock seal assembly
• Laser-engraved for authenticity

What’s Included

• Titanium grey anodised aluminium shock bodies x 2
• Titanium grey anodised aluminium shock caps x 2

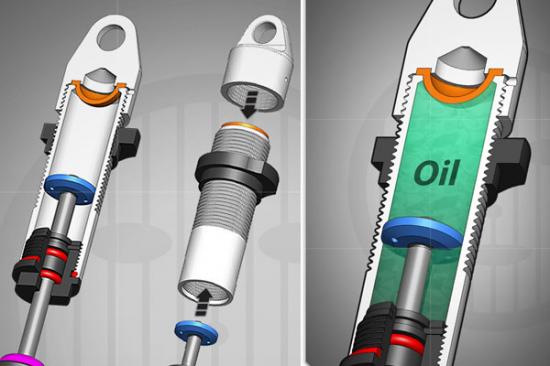

• Diaphragms x 2
• Shock springs x 2
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil

Specifications

• Length (mounting hole to hole): 55mm
• Shock body diameter: 14mm
• Spring diameter: 19mm
• Spring length: 20mm
• Full shaft travel range: 7mm (without rubber bump stop)
• Shaft diameter: 3.5mm
