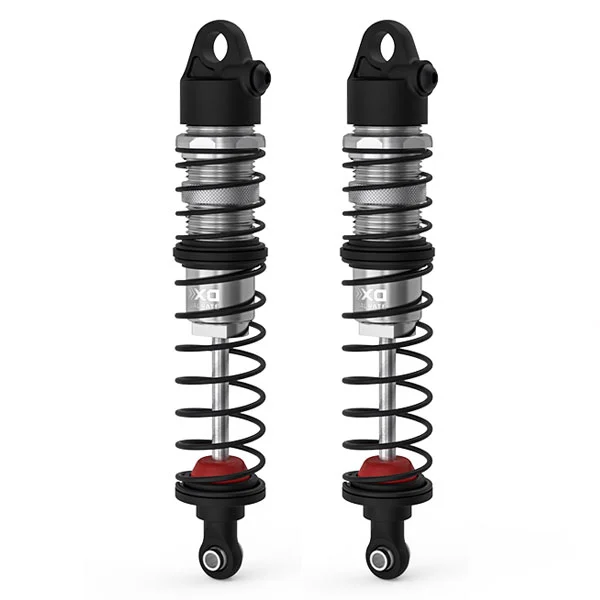

GMade Xd Dual Rate Aeration Shock 103mm (2)

The GMade XD Dual Rate Aeration Shock 103mm (part number GM24102) is a pair of emulsion-style dampers that mix oil and air for easy assembly and effective control over bumps and jumps. CNC-machined, silver-anodised aluminium components and a true dual-stage spring rate deliver smooth, tunable suspension performance across varied terrain. Suggested compatibility includes 1/8 and 1/10 scale crawlers and trucks, 1/10 scale EP buggies and short course trucks (such as Gmade R1 and GOM, Axial Wraith and Bomber, Traxxas E‑Maxx and 2WD Slash rear).

Features

• CNC machined aluminium shock bodies, spring adjust nuts, stop rings and cartridges
• Silver anodised shock bodies, spring adjust nuts, stop rings and cartridges
• Upper and lower shock ends include silver anodised aluminium balls
• Fully threaded bodies for rapid adjustment
• Delrin pistons
• 3.5mm thick shock shafts
• Shaft exits through double O-ring seals
• True dual-stage spring rate
• Easy-load shock seal assembly
• Laser engraved for authenticity

Specifications

• Length (mounting hole to hole): 103mm
• Shock body diameter: 14mm
• Spring diameter: 19mm
• Spring length: 20mm and 50mm
• Full shaft travel range: 31mm (without rubber bump stop)
• Shaft diameter: 3.5mm

What’s Included

• Silver anodised aluminium shock bodies x 2
• Silver anodised aluminium spring adjust nuts x 2
• Silver anodised aluminium stop rings x 2
• Silver anodised aluminium cartridges x 2
• Shock springs x 4
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil
