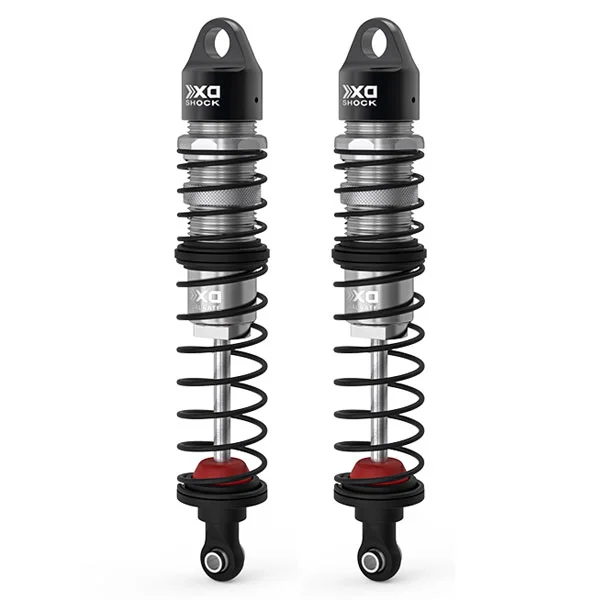

GMade Xd Dual Rate Diaphragm Shock 103mm (2)

The GMade XD Dual Rate Diaphragm Shock 103mm (2) — part number GM24202 — delivers smooth, consistent damping and easy tuning for a wide range of off-road RC builds. Precision CNC-machined aluminium components, a true dual-stage spring rate and robust 3.5mm shafts combine for durability and control, while the fully threaded bodies allow rapid preload adjustment. Supplied as a matched pair with springs, hardware, instructions and oil to complete assembly.

Key Features

• CNC machined aluminium shock bodies, spring adjust nuts, stop rings, caps and cartridges
• Silver anodized bodies, adjust nuts, stop rings and cartridges
• Upper and lower ends include silver anodized aluminium balls
• Black anodized shock caps
• Fully threaded bodies for rapid adjustment
• Delrin pistons
• 3.5mm thick shock shafts

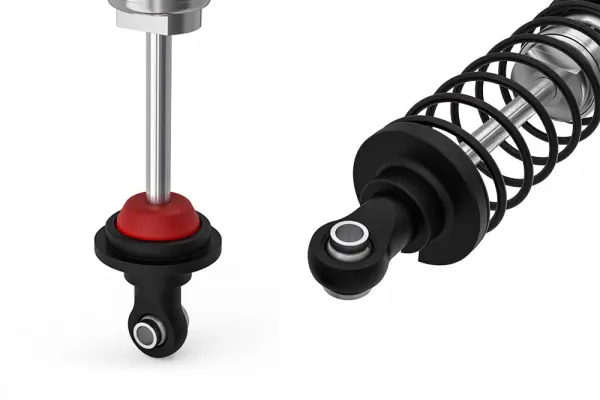

• Shaft exits through double O-ring seals

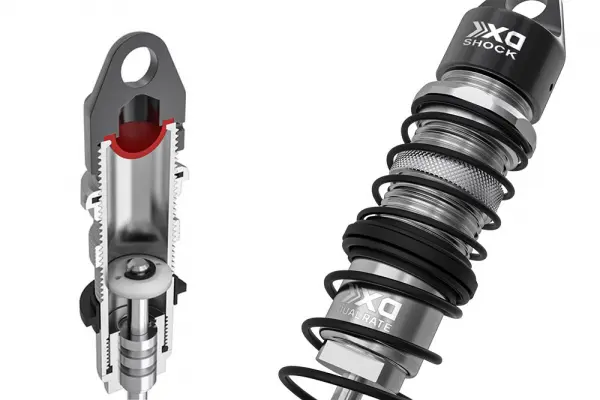

• True dual stage spring rate

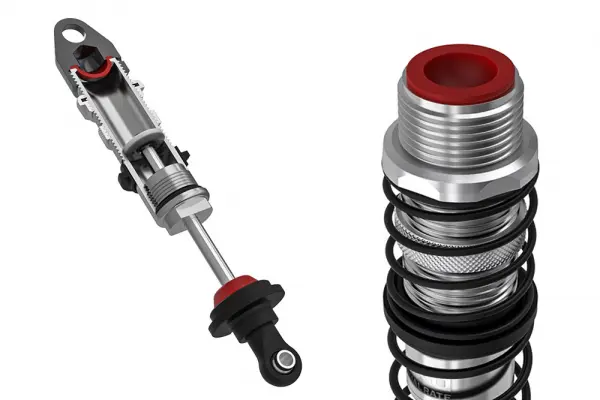

• Easy load shock seal assembly
• Laser engraved for authenticity

Specification

• Length (mounting hole to hole): 103mm
• Shock body diameter: 14mm
• Spring diameter: 19mm
• Spring lengths: 20mm and 50mm
• Full shaft travel range: 31mm (without rubber bump stop)
• Shaft diameter: 3.5mm

What’s Included

• Silver anodized aluminium shock bodies x2
• Silver anodized aluminium spring adjust nuts x2
• Silver anodized aluminium stop rings x2
• Silver anodized aluminium cartridges x2
• Black anodized aluminium shock caps x2
• Shock springs x4
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil

Suggested Compatibility

Suggested compatibility includes 1/8 & 1/10 scale crawlers and trucks, 1/10 scale EP buggies and short course trucks (such as Gmade R1 and GOM, Axial Wraith and Bomber, Traxxas E‑Maxx and 2WD Slash rear).
