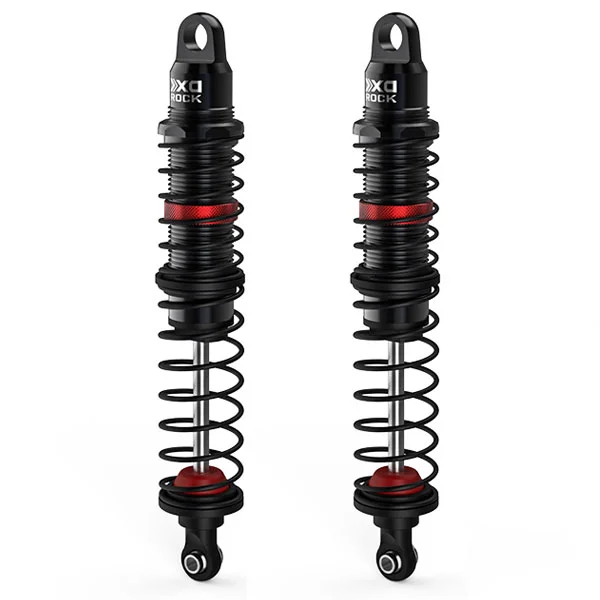

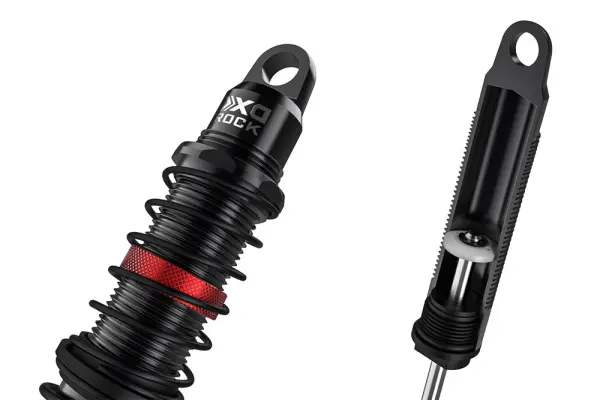

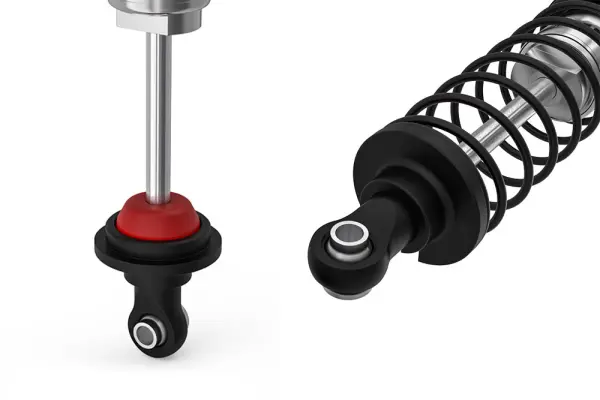

GMade XD Dual Rate Rock Shock (2) - GM24304

The GMade XD Dual Rate Rock Shock (GM24304) is a precision upgrade for RC crawlers and trucks, supplied as a pair. With CNC-machined aluminium construction, dual-rate springs and fully threaded bodies for quick preload adjustment, these 113mm shocks are designed to deliver smooth, consistent damping and reliable performance on rough terrain.

Features

• CNC-machined aluminium shock bodies, spring adjust nuts and stop rings
• Anodised shock bodies, spring adjust nuts and stop rings
• Lower shock ends include silver anodised aluminium balls
• Fully threaded bodies for rapid adjustment
• Delrin pistons
• 3.5mm thick shock shafts
• Shaft exits through double O-ring seals
• Adjustable shaft travel option
• Easy-load shock seal assembly
• Laser engraved for authenticity

Specifications

• Length (mounting hole to hole): 113mm
• Shock body diameter: 14mm
• Spring diameter: 19mm
• Spring lengths: 29mm and 50mm
• Full shaft travel range: 36mm (without rubber bump stop)
• Shaft diameter: 3.5mm

Suggested Compatibility

• 1/8 scale crawlers and trucks
• 1/10 scale crawlers and trucks

What's Included

• Black anodised aluminium shock bodies x 2
• Black anodised aluminium spring adjust nuts x 2
• Red anodised aluminium stop rings x 2
• Shock springs x 4
• All necessary hardware to finish the shocks
• Assembly instructions
• Bottle of shock oil
