GWS EDF55 Ducted Fan Unit – 4460807
Brand: GWS
Part No: 4460807
£14.49
RRP £15.25
In Stock: Usually ships same day
Finance options available at checkout.
Description

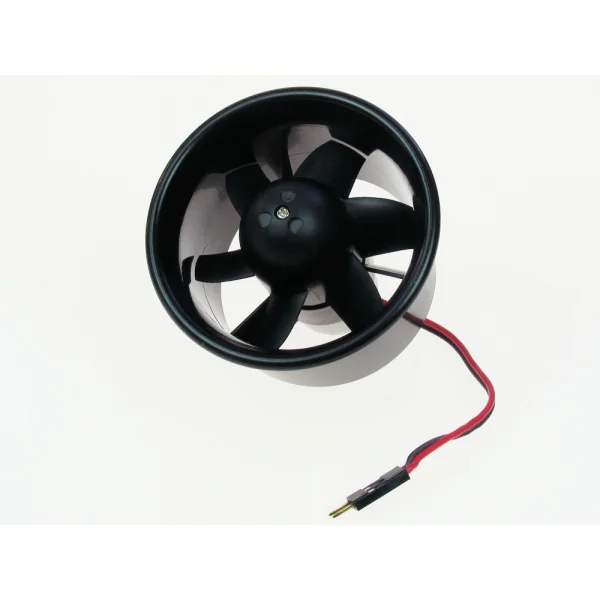

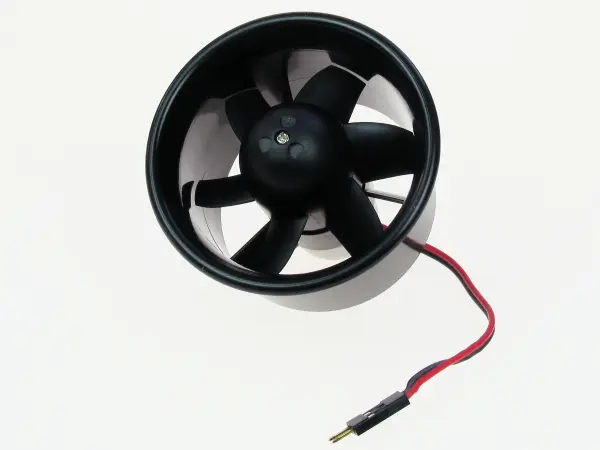

The GWS EDF55 Ducted Fan Unit (part 4460807) is a micro electric ducted fan supplied with an EM100/150 motor (Pt no 5510322). Operating on 3.6–9.6 V and drawing 1.5–5.9 A, it delivers a thrust range of 32–141 g while keeping overall weight to just 70 g.
This compact unit suits lightweight EDF applications and project builds where space and efficiency are important.
Key Features
- Micro ducted fan with motor
- Type: GW/EDF55-150 (2245 x 6)
- Motor: EM100/150 (Pt no 5510322)
- Voltage: 3.6–9.6 V
- Current: 1.5–5.9 A
- Thrust: 32–141 g
- Weight: 70 g
Weights & Dimensions
- Product weight: 70 g (2.47 oz)
- Shipping weight: 0.12 kg (0.26 lb)
Secure Payments
Secured by Stripe
Specifications
Key Features
- Amps - 1.5 - 5.9A
- Micro ducted fan with motor
- Motor - EM100/150 Pt no 5510322
- Thrust - 32g - 141g
- Type - GW/EDF55-150 (2245 x 6)
- Volts - 3.6 - 9.6v
- Weight - 70g
Weights & Dimensions
| Weight | 70g | 2.47oz |
| Shipping Weight | 0.12kg | 0.26lbs |
- Voltage: 3.6-9.6V
Key Info:
- Brand: GWS
- Part No: 4460807
- Barcode: 842142033054
Delivery & Returns
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Customer Reviews
No specific product reviews yet, why not write one?Write a Review
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
does it plug in to the receiver
Harry Schulz / 26th March 2024
No this needs to be connected to the esc , then the esc plugs into the receiver .
Steve @ Wheelspin Models
