H2040TL 2.9G Linear Servo Long Lead: UMX Timber X

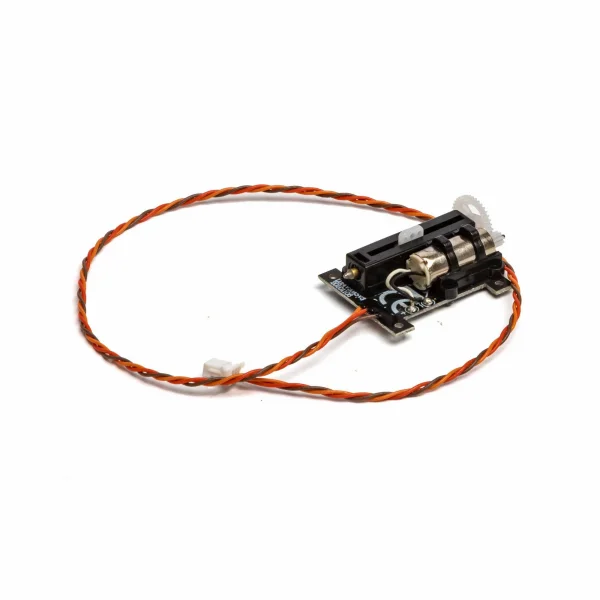

The Spektrum H2040TL 2.9g Linear Servo Long Lead (SPMSH2040TL) is a performance long-throw ultra micro servo designed for AS3X ultra micro aircraft. Delivering a 13.5 mm travel in a compact 2.90 g package, it combines precise 0.065 s transit speed (at 4.2 V) with 9.6 oz-in torque, ideal where smooth, accurate control is essential.

A long 115 mm lead with a JST-SHR 1.0 mm connector simplifies installs in tight airframes, while the compact footprint helps keep weight and space to a minimum. The servo features nylon gears, a single bearing, and a brushed motor, and is programmable while remaining an analog type.

Key Features

• Performance linear long-throw design for AS3X ultra micro aircraft
• 13.5 mm servo throw with compact footprint
• Long 115 mm lead with JST-SHR 1.0 mm connector
• Precise response: 0.065 s speed and 9.6 oz-in torque at 4.2 V
• Ultra micro 2.9 g weight with nylon gears and single bearing

Specifications

• Application: Heli
• Product Application: Air
• Servo Size Category: Ultra Micro
• Servo Type: Analog
• Programmable: Yes
• Motor Type: Brushed
• Gear Type: Nylon
• Bushing or Bearing: Bearing
• Bearing: Single
• Input/Operating Voltage: 3.2–4.2 V
• Maximum Servo Speed: 0.065 @ 4.2 V
• Maximum Servo Torque: 9.6 oz/in @ 4.2 V
• Connector Type: JST-SHR 1.0 mm
• Connector Wire Length: 4.52" (115 mm)
• Servo Throw: 13.5 mm
• Product Length: 0.9" (23 mm)
• Product Width: 0.7" (18 mm)
• Product Height: 0.4" (10 mm)
• Product Weight: 0.10 oz (2.90 g)
• Water-Resistant: No
