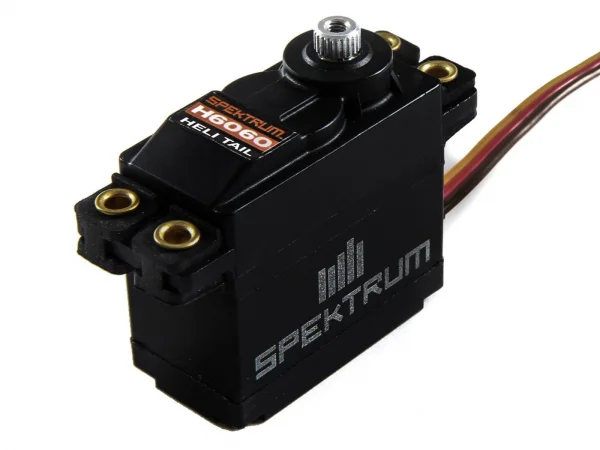

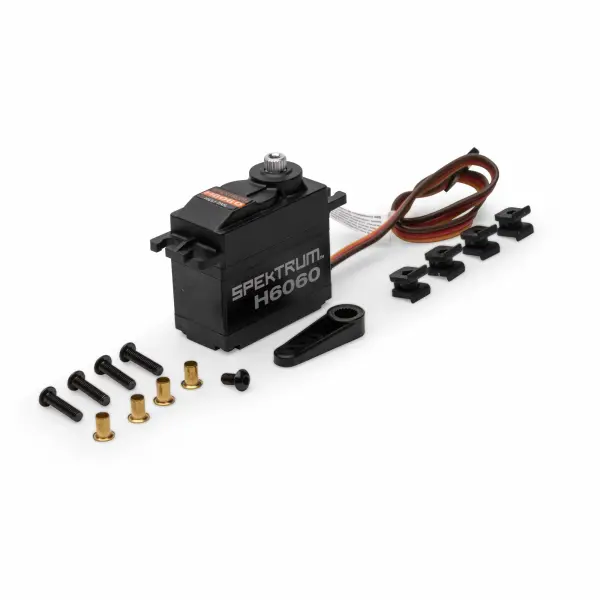

Spektrum H6060 Mid-Torque Heli Tail Servo SPMSH6060
Brand: Spektrum
Part No: SPMSH6060
Expected 5th October 2026
Request Stock NotificationFinance options available at checkout.
Frequently Bought With
Other items customers often buy with the H6060 Mid-Torque Ultra-Speed Heli Tail Servo
Description
The Spektrum H6060 Mid-Torque Ultra-Speed Heli Tail Servo (SPMSH6060) is a budget-friendly digital tail rotor servo purpose-built for helicopter models up to 500 size. A coreless motor and durable all-metal gear train deliver rapid response of 0.056 sec at 6.0V, with up to 86 oz-in of torque, in a standard-size case and with a long 255mm lead for flexible installation.
Key Features
- Standard-size servo for 500-size helicopter models and smaller
- Ultra-fast 0.056 sec transit speed at 6.0V
- Robust metal gear train with bearing-supported output
- Coreless motor for smooth, precise tail control
- 4.8–6.0V input voltage
- Long 10 inch (255mm) connector wire
- 23-tooth spline
Specifications
- Servo Type: Digital
- Application: Heli tail
- Operating Voltage: 4.8–6.0V
- Maximum Torque: 86 oz-in (6.2 kg-cm) @ 6.0V
- Transit Speed: 0.056 sec @ 6.0V
- Rotation Range: 120°
- Output Support: Dual bearings
- Gears: Metal
- Connector Type: Universal
- Lead Length: 10 in (255mm), 22 AWG
- Size Category: Standard
- Length: 1.57 in (39.9 mm)
- Width: 0.78 in (19.8 mm)
- Height: 1.57 in (39.9 mm)
- Weight: 2.2 oz (62 g)
- Case Material: Plastic
- Programmable: No
Suggested Compatibility
- Blade Fusion 480
- Other high-performance 500-size helicopter models
Secured by Stripe
H6060 Mid-Torque Ultra-Speed Heli Tail Servo Manuals & Guides
Manuals & Guides
Specifications
The H6060 is a budget friendly digital tail rotor servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 86oz of torque and a blazing fast .056 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
- Standard size servo for 500 size Helicopter models and smaller
- 160oz Torque and .056 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
H6060 Mid-Torque Ultra-Speed Heli Tail Servo Specifications:
- Application: Helis Tail
- Bearing: Dual
- Bushing Or Bearing: Bearing
- Connector Type: Universal
- Connector Wire Length: 10 in (255mm)
- Gear Type: Metal
- Material: Plastic
- Maximum Servo Torque: 86 oz-in (6.2 kg-cm) @ 6.0V
- Product Application: Heli Tail
- Product Height: 1.57 in (39.9 mm)
- Product Length: 1.57 in (39.9 mm)
- Product Weight: 2.2 oz (62g)
- Product Width: 0.78 in (19.8 mm)
- Programmable: No
- Rotation Range: 120 deg
- Servo Operating Voltage: 4.8 - 6.0V
- Servo Size Category: Standard
- Servo Type: Digital
- Wire Gauge: 22 AWG
Key Info:
- Brand: Spektrum
- Part No: SPMSH6060
- Barcode: 605482187258
- Fitment: Option Part
